OMI6917CP

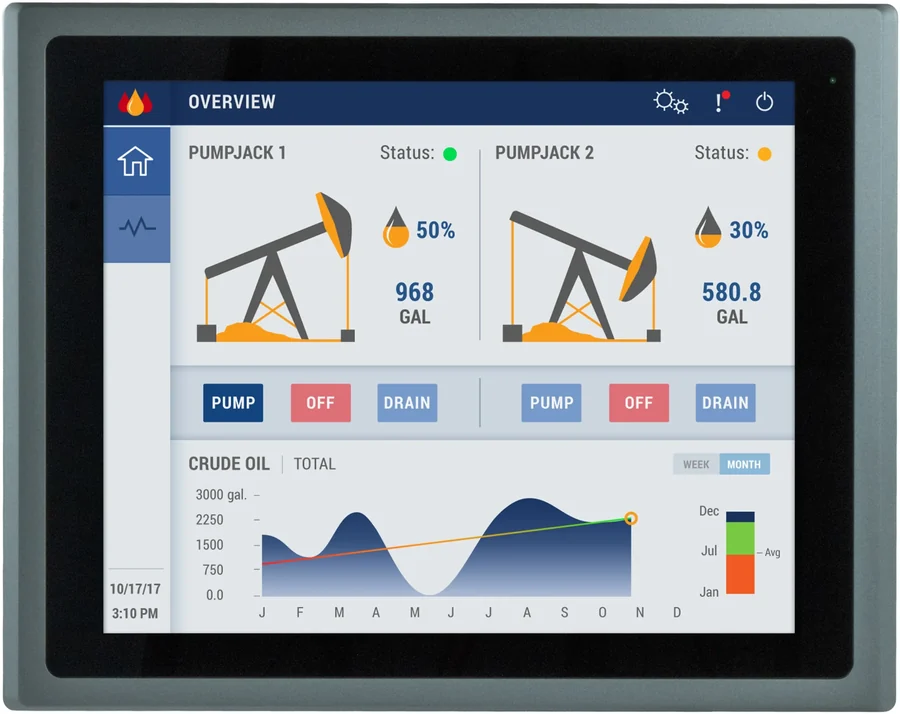

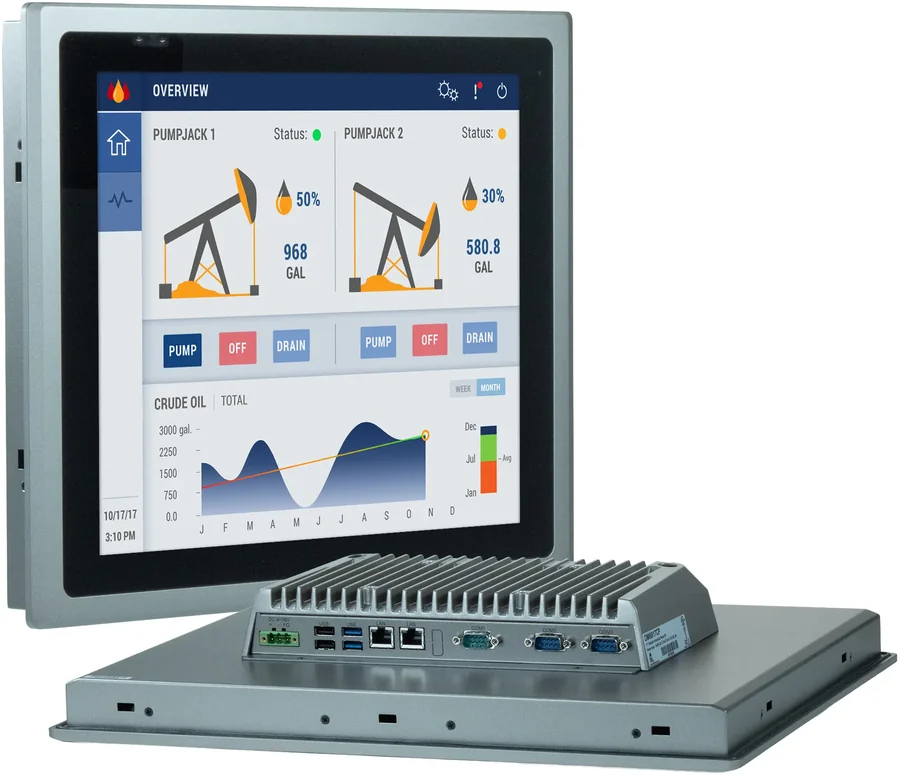

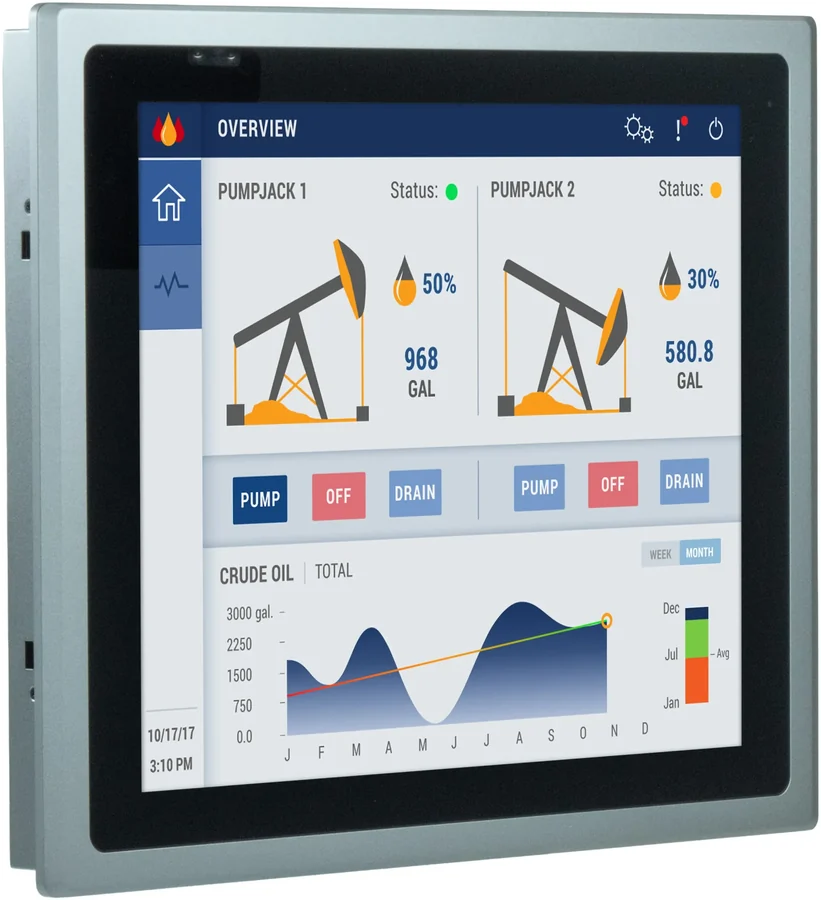

This UL-certified (cULus) , 17.0” capacitive touchscreen industrial computer provides a quThis UL-certified (cULus) , 17.0” capacitive touchscreen industrial computer provides a quality option for industrial applications in a small footprint. The OMI6917CP features high-quality components, solid construction, powerful CPU, and a fanless cooling system, ensuring that this panel PC will meet your requirements.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 1280 x 1024 Resolution
- Intel 12th Gen Core i5-1235U 4.4 GHz CPU
- 8GB up to 64GB RAM, 64GB up to 2TB SSD
- Wake on LAN (WoL) Supported
- Microsoft Windows ® or Linux ® Operating Systems
- Wi-Fi Kit upgrades available
- Aluminum Enclosure, VESA, or Panel Mount
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® 12th Gen Alder Lake Core™ i5-1235U (Deca-Core) up to 4.4GHz Learn More CPU: Intel® 12th Gen Alder Lake Core™ i5-1235U (Deca-Core) up to 4.4GHz 2 Performance-cores (P-cores): Handle heavy workloads and support Hyper-Threading (4 threads) with a max turbo frequency of up to 4.40 GHz. 8 Efficient-cores (E-cores): Handle background and low-intensity tasks (8 threads) with a max turbo frequency of up to 3.30 GHz.
- Memory (RAM)
- 2 x DDR4 260-pin SO-DIMM RAM (8, 16, 32, 64 GB)
- System Chipset
- SoC
- Solid State Drive Type
- NVME
- Solid State Drive Capacity
- 64, 128, 256, 512 GB, 1TB, 2TB SSD
- TPM Module
- Yes (TPM 2.0)
- Watchdog Timer
- 1-255 sec (system)
Puertos de E/S
- USB 3.2 Type A
- 2
- Power
- 3-pin connector header, DC power input
- Ethernet/LAN
- 2 x GbE RJ-45
- HDMI Port
- Yes
- Display Output
- 1 x HDMI 2.1, resolution up to 4096 x 2304 @ 60Hz
- USB 2.0 Type A
- 2
- Serial Ports
- 3
- Serial Options
- 2 x DE9P RS-232/422/485 (default RS-232) (COM1, COM2), 1 x DE9P RS-232 (COM3)
- Expansion Option
- Optional Wi-Fi kit (IEEE802.11ax card and antenna), Bluetooth 5.2 Support
Pantalla
- Display Size
- 17” TFT SXGA LCD
- Resolution
- 1280 x 1024
- Luminance (cd/m^2)
- 350
- Contrast Ratio
- 1000:1
- Backlight Lifetime (hrs)
- 50,000+
- Colors
- 16.7 M
- View Angle (H° V°)
- 160/140
Pantalla táctil
- Touch Interface
- USB
- Light Transmission
- 90+%
- Touch Screen Type
- Projected Capacitive
Eléctrico
- Input Power
- 59 W
- Input Voltage
- 9~36 VDC
- Input Current
- 1.64 – 6.56 A
Mecánico
- Enclosure Material
- Silver aluminum front bezel and chassis
- Dimensions WxHxD
- 17.28 x 13.70 x 3.23" [439 x 348 x 82 mm]
- Panel Cutout (inches) [mm]
- 16.61 x 13.03" [422 x 331 mm]
- Weight
- ~ 13.67 lbs [6.2 kg]
- Mounting
- Panel mounting, VESA 100 x 100 mm
Ambiental
- Shock Resistance
- Tested to IEC 60068-2-27 (2008): 15G acceleration peak to peak, XYZ axis, 11ms pulse duration
- Vibration Resistance
- Tested to IEC 60068-2-64 (2019): 5~500Hz, 1.0 Grms, XYZ axis, 30 mins duration
- Altitude (Air Pressure)
- Up to 2,000 Meters (~80 kPa)
- Operating Temperature
- -4~140°F [-20~60°C]
- Storage Temperature
- -22~158°F [-30~70°C]
- Relative Humidity
- 10 to 95% @ 40°C, non-condensing
Certificaciones
- NEMA Rating
- NEMA 4 when panel mounted
- IP Rating
- IP66
- CE
- Yes
- UL
- cULus Listed
- ATEX
- No
- RoHS
- Yes
- FCC
- FCC Class A
Datos del producto
- Marca
- Maple Systems
- Número de parte
- OMI6917CP
- Línea
- Industrial Panel PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
