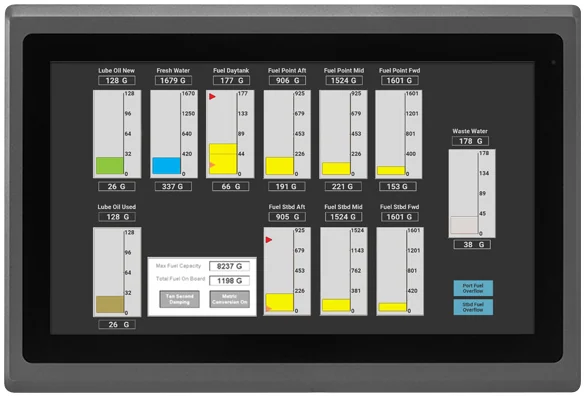

OMI6916BP
As part of our Industrial Panel PC Series, the OMI6916BP is UL-certified (cULus) and comesAs part of our Industrial Panel PC Series, the OMI6916BP is UL-certified (cULus) and comes standard with a Linux or Windows ® 10 IoT OS which supports most 3rd party and SCADA software like SIMATIC WinCC , Ignition , FactoryTalk ® , & AVEVA ® .
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 1366 x 768 Resolution
- Intel 6th Gen Core i5-6300U 2.4 GHz CPU
- 8GB or 16GB RAM, 64GB up to 1TB MLC SSD
- Microsoft Windows ® or Linux ® Operating Systems
- Wi-Fi Kit upgrades available
- Aluminum Enclosure, VESA or Panel Mount
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel Skylake Core i5-6300U 2.4GHz Dual-Core
- Memory (RAM)
- 1x DDR4 260-pin SO-DIMM 2133MHz RAM (8, 16 GB)
- System Chipset
- SoC
- Solid State Drive Type
- 1 x 2.5” SATA III, MLC
- Solid State Drive Capacity
- 64, 128, 256, 512 GB, 1TB SSD
Puertos de E/S
- Power
- 3-pin connector header, DC power input
- Ethernet/LAN
- 2 x GbE RJ-45
- Audio Output
- 1 x 3.5 mm line out
- HDMI Port
- No
- Remote Power Switch
- 2-pin connector header
- Display Output
- No
- USB 3.0 Type A
- 2
- Serial Ports
- 2
- Serial Options
- 1 x RS-232/422/485 DE-9P, COM1 (default RS-232), 1 x RS-232 DE-9P, COM2
- Expansion Option
- Optional Wi-Fi kit (IEEE802.11ax card and antenna), Bluetooth 5.2 Support
Pantalla
- Display Size
- 15.6" HD TFT LCD
- Resolution
- 1366 x 768
- Luminance (cd/m^2)
- 400
- Contrast Ratio
- 500:1
- Backlight Lifetime (hrs)
- 50,000+
- Colors
- 16.7 M
- View Angle (H° V°)
- 170/160
Pantalla táctil
- Touch Interface
- USB
- Light Transmission
- 90+%
- Optical Bonding
- No
- Touch Screen Type
- Projected Capacitive
Eléctrico
- Input Power
- 46 W
- Input Voltage
- 9~36 VDC
- Input Current
- 5 A Max
Mecánico
- Enclosure Material
- Silver aluminum front bezel and chassis
- Dimensions WxHxD
- 16.22 x 10.94 x 2.32 inches [412 x 278 x 59 mm]
- Panel Cutout (inches) [mm]
- 10.24 x 15.51 [260 x 394 ]
- Weight
- ~ 9.92 lbs [4.5 kg]
- Mounting
- Panel mounting, VESA 100 x 100 mm
Ambiental
- Operating Temperature
- 32~122°F [0~50°C]
- Storage Temperature
- -22~158°F [-30~70°C]
- Relative Humidity
- 10 to 90% @ 40°C, non-condensing
Certificaciones
- NEMA Rating
- NEMA 4 when panel mounted
- IP Rating
- IP66
- CE
- Yes
- UL
- Yes
- ATEX
- No
- RoHS
- Yes
- FCC
- FCC Class A
Datos del producto
- Marca
- Maple Systems
- Número de parte
- OMI6916BP
- Línea
- Industrial Panel PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
