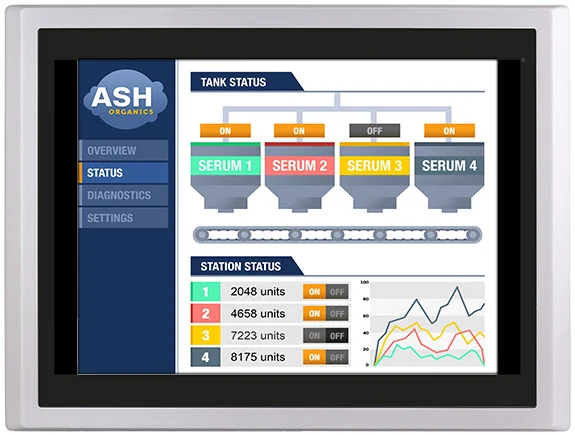

OMI6915BP
The OMI6915BP is part of our powerful industrial computer series. This 15.0” UL-certified The OMI6915BP is part of our powerful industrial computer series. This 15.0” UL-certified (cULus) , capacitive touchscreen provides a rugged option for industrial applications. Choose a Windows ® or Linux Operating System with support for 3rd party and SCADA software like SIMATIC WinCC , Ignition , FactoryTalk ® , & AVEVA ® .
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 1024 x 768 Resolution
- Intel 6th Gen Core i5-6300U 2.4GHz CPU
- 8GB RAM, 64GB up to 1TB MLC SSD
- Microsoft Windows ® or Linux ® Operating Systems
- Wi-Fi Kit upgrades available
- Aluminum Enclosure, VESA or Panel Mount
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel Skylake Core i5-6300U 2.4GHz Dual-Core
- Memory (RAM)
- 1x DDR4 260-pin SO-DIMM 2133MHz RAM (8, 16 GB)
- System Chipset
- SoC
- Solid State Drive Type
- 1 x 2.5” SATA III, MLC
- Solid State Drive Capacity
- 64, 128, 256, 512 GB, 1TB SSD
Puertos de E/S
- Power
- 3-pin connector header, DC power input
- Ethernet/LAN
- 2 x GbE RJ-45
- Audio Output
- 1 x 3.5 mm line out
- HDMI Port
- No
- Remote Power Switch
- 2-pin connector header
- Display Output
- No
- USB 3.0 Type A
- 2
- Serial Ports
- 2
- Serial Options
- 1 x RS-232/422/485 DE-9P, COM1 (default RS-232), 1 x RS-232 DE-9P, COM2
- Expansion Option
- Optional Wi-Fi kit (IEEE802.11ax card and antenna), Bluetooth 5.2 Support
Pantalla
- Display Size
- 15” TFT XGA LCD
- Resolution
- 1024 X 768
- Luminance (cd/m^2)
- 300
- Contrast Ratio
- 1000:1
- Backlight Lifetime (hrs)
- 70,000+
- Colors
- 16.2 M
- View Angle (H° V°)
- 176/176
Pantalla táctil
- Touch Interface
- USB
- Light Transmission
- 90+%
- Optical Bonding
- No
- Touch Screen Type
- Projected Capacitive
Eléctrico
- Input Power
- 41 W
- Input Voltage
- 9~36 VDC
- Input Current
- 4.56 A Max
Mecánico
- Enclosure Material
- Silver aluminum front bezel and chassis
- Dimensions WxHxD
- 16.14 x 12.20 x 2.15 inches [410 x 310 x 55 mm]
- Panel Cutout (inches) [mm]
- 11.50 x 15.43 [292 x 392 ]
- Weight
- ~ 9.70 lbs. [4.4 kg]
- Mounting
- Panel mounting, VESA 100 x 100 mm
Ambiental
- Operating Temperature
- 32~122°F [0~50°C]
- Storage Temperature
- -22~158°F [-30~70°C]
- Relative Humidity
- 10 to 90% @ 40°C, non-condensing
Certificaciones
- NEMA Rating
- NEMA 4 when panel mounted
- IP Rating
- IP66
- CE
- Yes
- UL
- Yes
- ATEX
- No
- RoHS
- Yes
- FCC
- FCC Class A
Datos del producto
- Marca
- Maple Systems
- Número de parte
- OMI6915BP
- Línea
- Industrial Panel PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
