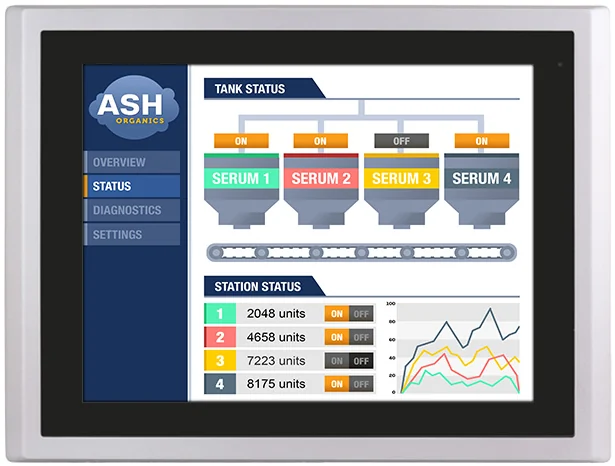

OMI6815BPHEB
With an extended operating temperature range ( -20~60°C ), 1000 nit -high bright display, With an extended operating temperature range ( -20~60°C ), 1000 nit -high bright display, and an optically bonded 15” capacitive touchscreen, the OMI6815BPHEB is designed to meet strict industry standards. With a solid state platform and fanless cooling system, this UL-certified industrial computer is ideal for industrial applications.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 1024 x 768 Resolution
- High Brightness-1000 nits, Optically Bonded Capacitive Touchscreen
- Intel ® Pentium Apollo Lake N4200 Quad-Core 1.1 GHz Processor
- Microsoft Windows ® 10 IoT Ent Embedded 64-bit
- -20~60°C Operating Temperature
- Aluminum Enclosure, VESA or Panel Mount
- IP66/NEMA4
- Optional Wi-Fi Upgrade
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® Pentium™ Apollo Lake™ N4200 Quad-Core 1.1GHz Processor
- Memory (RAM)
- Onboard DDR3L 4 GB 1600 MHz
- System Chipset
- SoC
- Solid State Drive Type
- 1 x 2.5” SATA III, MLC
- Solid State Drive Capacity
- 64, 128, 256, 512 GB, 1TB SSD

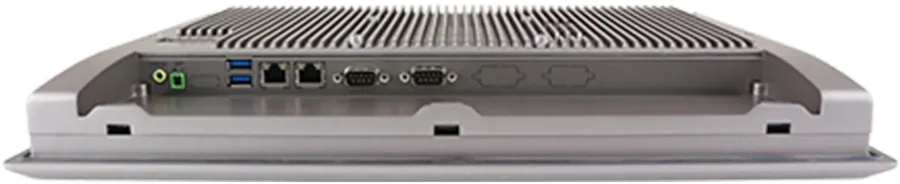

Puertos de E/S
- Power
- 3-pin connector header, DC power input
- Ethernet/LAN
- 2 x GbE RJ-45
- Audio Output
- 1 x 3.5 mm line out
- SD Card Slot
- 1 x internal micro Secure Digital memory card socket, up to 32 GB
- HDMI Port
- No
- Remote Power Switch
- 2-pin connector header
- Display Output
- No
- USB 3.0 Type A
- 2
- Serial Ports
- 2
- Serial Options
- 1 x RS-232/422/485 DE-9P, COM1 (default RS-232), 1 x RS-232 DE-9P, COM2
- Expansion Option
- Optional Wi-Fi kit (IEEE 802.11a/b/g/n/ac card and antenna)
Pantalla
- Display Size
- 15.0” XGA TFT LCD
- Resolution
- 1024 X 768
- Luminance (cd/m^2)
- 1000
- Contrast Ratio
- 3000:1
- Backlight Lifetime (hrs)
- 70,000+
- Colors
- 16.7 M
- View Angle (H° V°)
- 176/176
Pantalla táctil
- Touch Interface
- USB
- Light Transmission
- 90+%
- Optical Bonding
- Yes
- Touch Screen Type
- Projected Capacitive
Eléctrico
- Input Power
- 33.3 W
- Input Voltage
- 9~36 VDC
- Input Current
- 0.93-3.7 A
Mecánico
- Enclosure Material
- Silver aluminum front bezel and chassis
- Dimensions WxHxD
- 16.14 x 12.20 x 2.15” [410 x 310 x 54.67 mm]
- Panel Cutout (inches) [mm]
- 15.43 x 11.50 [392 x 292 ]
- Weight
- ~ 10.14 lbs [4.6 kg]
- Mounting
- Panel mounting, VESA 100 x 100 mm
Ambiental
- Operating Temperature
- -4~140°F [-20~60°C]
- Storage Temperature
- -22~158°F [-30~70°C]
- Relative Humidity
- 10 to 90% @ 40°C, non-condensing
Certificaciones
- NEMA Rating
- NEMA 4 when panel mounted
- IP Rating
- IP66
- CE
- Yes
- UL
- Yes
- ATEX
- No
- RoHS
- Yes
- FCC
- FCC Class A
Datos del producto
- Marca
- Maple Systems
- Número de parte
- OMI6815BPHEB
- Línea
- High-Brightness PCs · Extended Temp. PCs · Industrial Panel PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
