OMI6810CP
The OMI6810CP provides a rugged, high-quality option for applications requiring a capacitiThe OMI6810CP provides a rugged, high-quality option for applications requiring a capacitive touchscreen. With a solid-state platform and fanless cooling system, extended operating temperature ( -20°~ 60°C ), this UL-certified 10-inch Panel PC is ideal for most applications.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 1280 x 800 Resolution
- Wake on LAN Supported (WOL)
- Intel ® Celeron ® J6412 2.0GHz Quad Core Processor
- 8GB up to 32GB RAM, 128GB up to 2TB SSD
- Microsoft Windows® 10, 11, Linux® OS Options
- Wi-Fi Kit upgrades available
- Aluminum Enclosure, VESA or Panel Mount
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® Quad-Core Celeron® J6412 @ 2.0 GHz
- Memory (RAM)
- 1 x DDR4 260-pin SO-DIMM RAM (8, 16, 32 GB)
- System Chipset
- SoC
- Solid State Drive Type
- 1 x M.2 2280 3D TLC SATA3
- Solid State Drive Capacity
- 128, 256, 512 GB, 1TB, 2TB SSD
- TPM Module
- Yes (TPM 2.0)

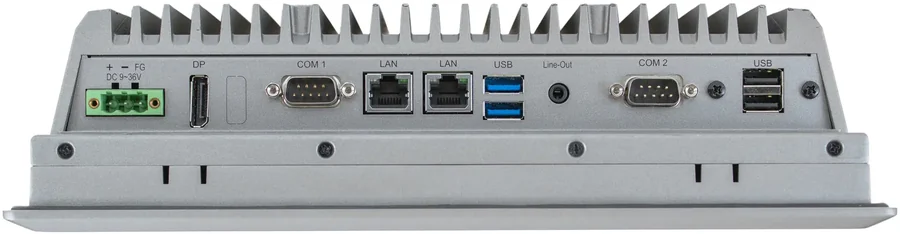

Puertos de E/S
- USB 3.2 Type A
- 2
- Power
- 3 pins terminal block connector, DC power input
- Ethernet/LAN
- 1 x GbE RJ-45 / 1 x 2.5 GbE RJ-45
- Audio Output
- 1 x 3.5 mm line out
- Display Output
- 1 x DisplayPort 1.4 (max 4096 x 2160 pixels @ 60Hz)
- USB 2.0 Type A
- 2
- Serial Ports
- 2
- Serial Options
- 1 x RS-232/422/485 DE-9P, COM1 (default RS-232), 1 x RS-232 DE-9P, COM2
- Expansion Option
- Optional Wi-Fi kit (IEEE802.11ax card and antenna), Bluetooth 5.2 Support
Pantalla
- Display Size
- 10.1” WXGA TFT LCD
- Resolution
- 1280 x 800
- Luminance (cd/m^2)
- 350
- Contrast Ratio
- 800:1
- Backlight Lifetime (hrs)
- 30,000+
- Colors
- 16.7 M
- View Angle (H° V°)
- 170/170
Pantalla táctil
- Touch Interface
- USB
- Light Transmission
- 90+%
- Touch Screen Type
- Projected Capacitive
Eléctrico
- Input Power
- 44.28 W
- Input Voltage
- 9-36 VDC
- Input Current
- 1.23 – 4.92 A
Mecánico
- Enclosure Material
- Silver aluminum front bezel and chassis
- Dimensions WxHxD
- 11.22 x 7.44 x 2.95” [285 x 189 x 75 mm]
- Panel Cutout (inches) [mm]
- 10.71 x 6.93" [272 x 176 mm]
- Weight
- ~ 5.95 lbs. [2.7 kg]
- Mounting
- Panel mount, VESA 100 x 100 mm
Ambiental
- Shock Resistance
- Tested to IEC 60068-2-27 (2008): 15G acceleration peak to peak, XYZ axis, 11ms pulse duration
- Vibration Resistance
- Tested to IEC 60068-2-64 (2019): 5~500Hz, 1.0 Grms, XYZ axis, 30 mins duration
- Altitude (Air Pressure)
- Up to 2,000 Meters (~80 kPa)
- Operating Temperature
- -4~140°F [-20~60°C]
- Storage Temperature
- -22~158°F [-30~70°C]
- Relative Humidity
- 10 to 95% @ 40°C, non-condensing
Certificaciones
- NEMA Rating
- NEMA 4 when panel mounted
- IP Rating
- IP66
- CE
- Yes
- UL
- cULus Listed
- ATEX
- No
- RoHS
- Yes
- FCC
- FCC Class A
Datos del producto
- Marca
- Maple Systems
- Número de parte
- OMI6810CP
- Línea
- Extended Temp. PCs · Industrial Panel PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
