OIT3165-A00
Our Alphanumeric OITs are powerful, affordable operator interface terminals with Class I, Our Alphanumeric OITs are powerful, affordable operator interface terminals with Class I, Division 2 and Build America Buy America ( BABA ) certifications. With the ability to communicate with more than 100 brands of PLCs, motion controllers, temperature controllers, and embedded microcontrollers, you can easily create the perfect operator interface terminal for your application.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.

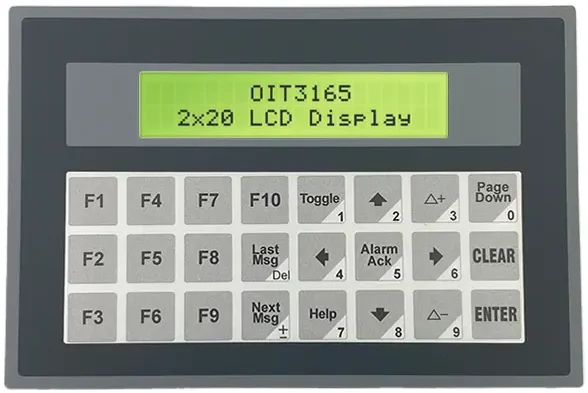

- 2 x 20 Backlit LCD
- 24 Programmable Keys
- Class I, Division 2 Rated
- Support for over 100 protocols
- 2 Year Warranty
- Extended Temperature Range
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- Input Current
- 91 mA @ 24 VDC
- Capacity (Screens)
- 500
- Audio
- Internal audio transducer

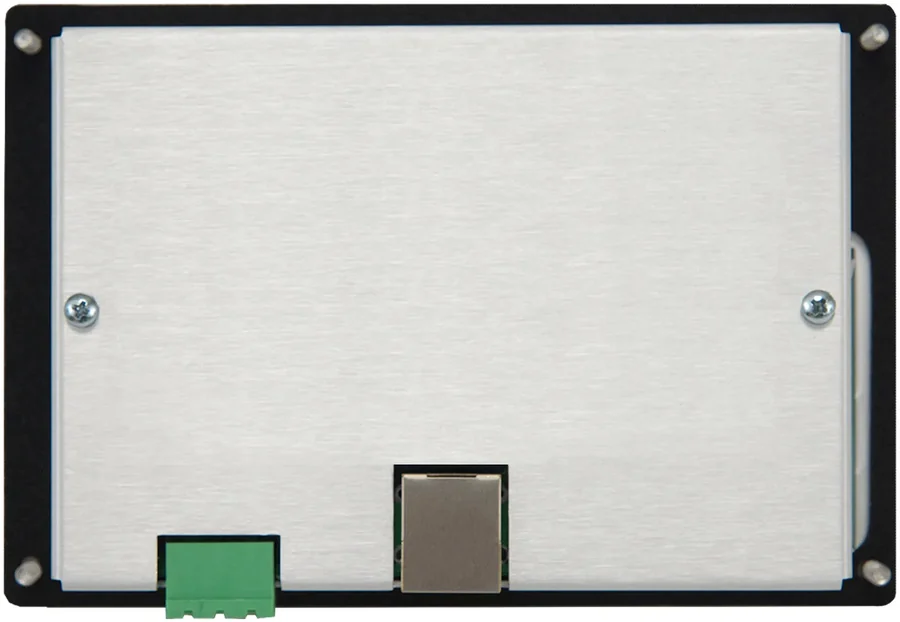

Puertos de E/S
- Power
- 3 pins terminal block connector, DC power input
- Serial
- 1 x RJ45 shielded RS-232/422/485
Pantalla
- Display Size
- 2 line by 20 characters
- Backlight Lifetime (hrs)
- 50,000
- View Angle (H° V°)
- 35/40/35/35 (T,B,L,R)
- Type
- STN yellow green LCD; 5 x 7 dot matrix
- Backlight
- LED Display
Keypad
- Type
- Flat panel membrane
- Material
- Polyester
- Lifespan
- 3 million operations
- Programmable Keys
- 24 (up to 8 screen-dependent)

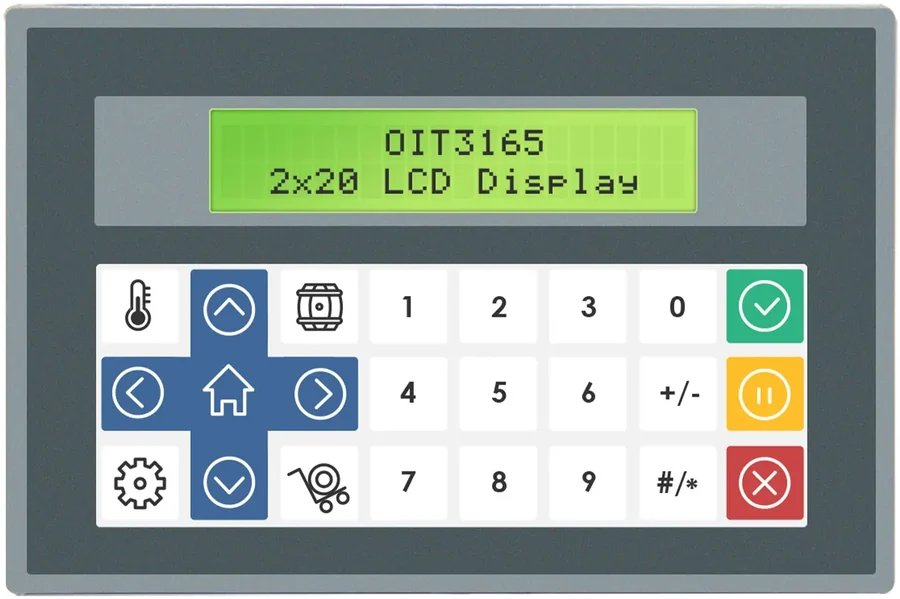

- Customizable Key Legend
- Yes
Eléctrico
- Input Power
- 2.18 W
- Input Voltage
- 12 ~ 30 VDC
Mecánico
- Enclosure Material
- Aluminum
- Dimensions WxHxD
- 6 x 4 x 1.77 inches [152.4 x 101.6 x 45 mm]
- Weight
- 0.75 lbs [0.34 kg]
- Mounting
- Panel mounting
Ambiental
- Operating Temperature
- 14 ~ 149°F (-10 ~ 65°C)
- Storage Temperature
- -22 ~ 176°F (-30 ~ 80°C)
- Relative Humidity
- 5% ~ 95% (non-condensing)
Certificaciones
- BABA
- Yes
- NEMA Rating
- NEMA4X
- IP Rating
- IP65
- CE
- Yes
- UL
- Yes
- Class 1 Div 2
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- OIT3165-A00
- Línea
- OIT
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
