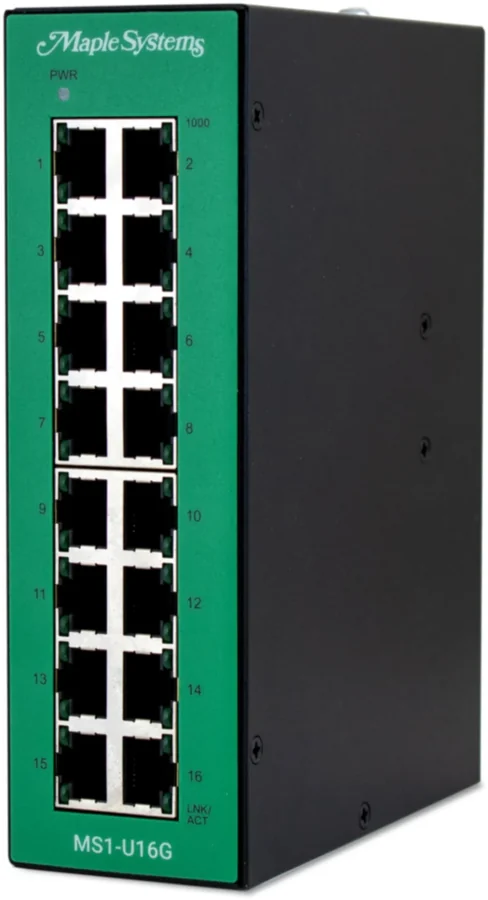

MS1-U16G
For use with all product
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.

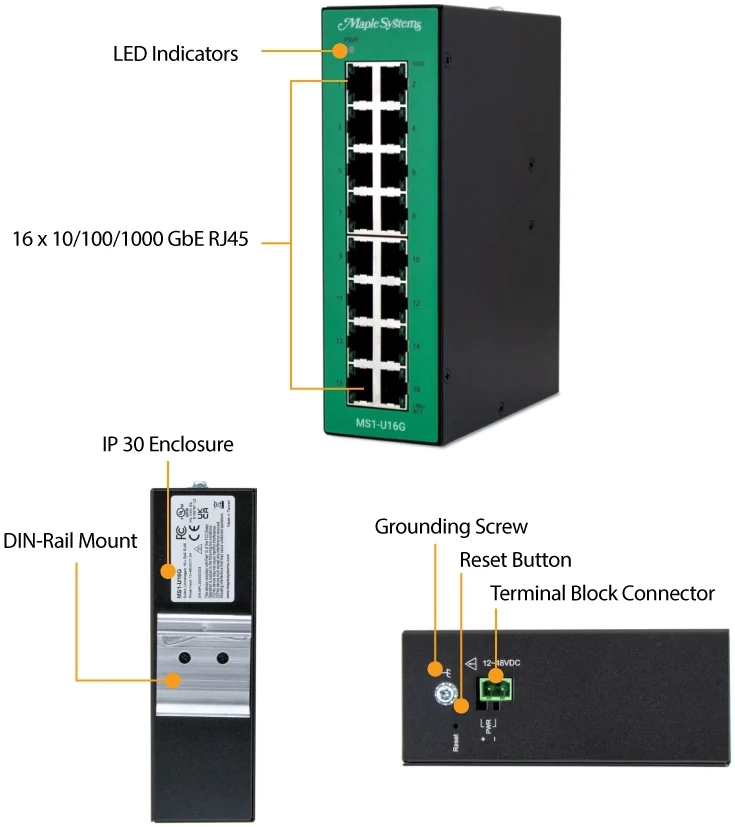

- 16 x 10/100/1000 RJ45 ports
- Priority for PROFINET protocols
- Auto-Negotiation, Flow Control, Storm Control, VLAN passthru
- Operating temperature -40℃~75℃ (-40°F~167°F)
- Metal Housing, Din-Rail
- IP30, UL, CE, FCC, RoHS, EMI, EMS, Shock, Vibration
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Port Specifications
- RJ45 Copper Ports
- Sixteen (16)
- RJ45 Speed
- 10/100/1000BASE-T
- Auto Negotiation & MDI/MDI-X
- Supported
- RJ Nominal Max. Distance
- 328 feet (100 meters)
Performance
- Packet Buffer
- 1Mbits
- Jumbo Frame Size
- 10k Bytes
- MAC Table Size
- 8K entries
- L2 Forwarding Rate
- 23.8Mpps
- Switch Fabric
- 32 Gbps
- Throughput
- 14,880 pps to 10 Mbps Ethernet ports / 148,800 pps to 100 Mbps Fast Ethernet ports / 1,488,000 pps to 1000 Mbps Gigabit Ethernet ports
Traffic Control
- Flow Control
- Yes
- Storm Control
- Yes
- VLAN Passthru
- Supports up to 4094 VLAN IDs
- LLDP Filter
- Yes
- QoS Queue
- 8 per port (FIFO)
- Industrial QoS
- PROFINET Only
- 802.1p QoS/CoS
- Prioritize QoS Tags (not configurable)
IEEE Standards
- Compliance
- 802.3, 802.3u, 802.3x, 802.3ab, 802.1p
Power Details

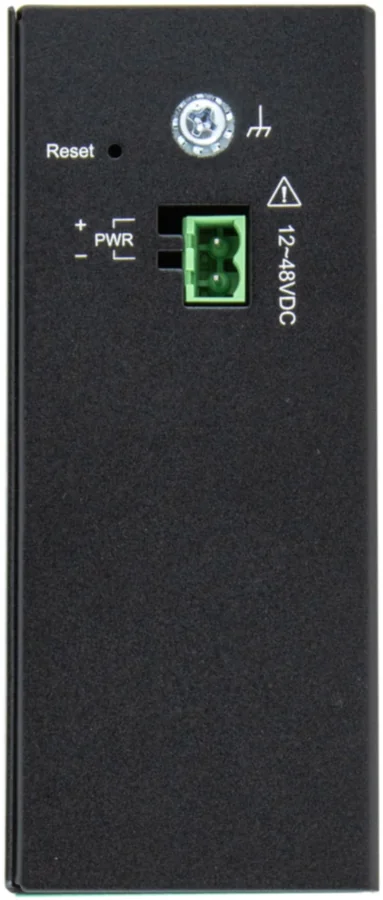

- Input Connector
- Terminal Block
- Max Input Current
- 0.583A @ 24VDC
- Max Power Consumption
- 14W
- Current Overload Protection
- Yes
- Redundant Power System
- Yes
- Input Voltage
- 12-48 VDC
- Reverse Polarity Protection
- Yes
- Power Input Polarity Protection
- Yes
Mecánico
- LED Panel
- PWR, 1000, LNK/ACT
- Enclosure Material
- Black Powder-Coated Metal
- Dimensions WxHxD
- 50 x 163.4 x 120.0 mm (1.97 x 6.43 x 4.72”)
- Weight
- 880g (1.94 lb)
- Mounting
- 35 mm DIN Rail
Ambiental
- Operating Temperature
- -40°F~167°F (-40°C~75°C)
- Storage Temperature
- -40°F~185°F (-40°C~85°C)
- Operating/Storage Relative Humidity
- 5 to 95% RH (non-condensing)
Certifications/Standards
- UL
- cULus Listed
- RoHS
- Compliant
- FCC
- Class A Compliant
- Ingress Protection
- IP30
- Shock Test
- IEC 60068-2-27
- Freefall Test
- IEC 60068-2-31
- Vibration
- IEC 60068-2-6
- EMI / CE
- FCC Part 15 Class A, EN 55011 Class A, EN 55032 Class A, EN 61000-6-4
- EMS / CE
- EN 55024, EN 61000-6-2 / IEC 61000-4-2 (ESD), IEC 61000-4-3 (RS), IEC 61000-4-4 (Burst), IEC 61000-4-5 (Surge), EN 61000-4-6 (CS), IEC 61000-4-8 (PFMF)
- CE UKCA
- Yes
- CE
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- MS1-U16G
- Línea
- Unmanaged Network Switch · Network Switch
- Categoría
- Redes industriales
- Precio y entrega
- Por cotización
