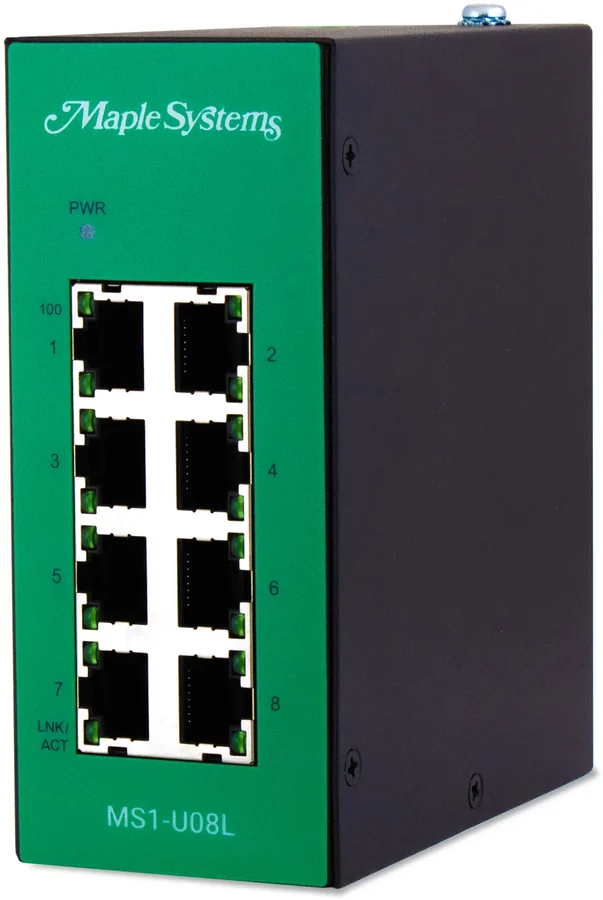

MS1-U08L
Our MS1-U08L unmanaged industrial switch used to expand ethernet networks in factory floorOur MS1-U08L unmanaged industrial switch used to expand ethernet networks in factory floors and for high demanding environments with simple requirements and limited space.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.

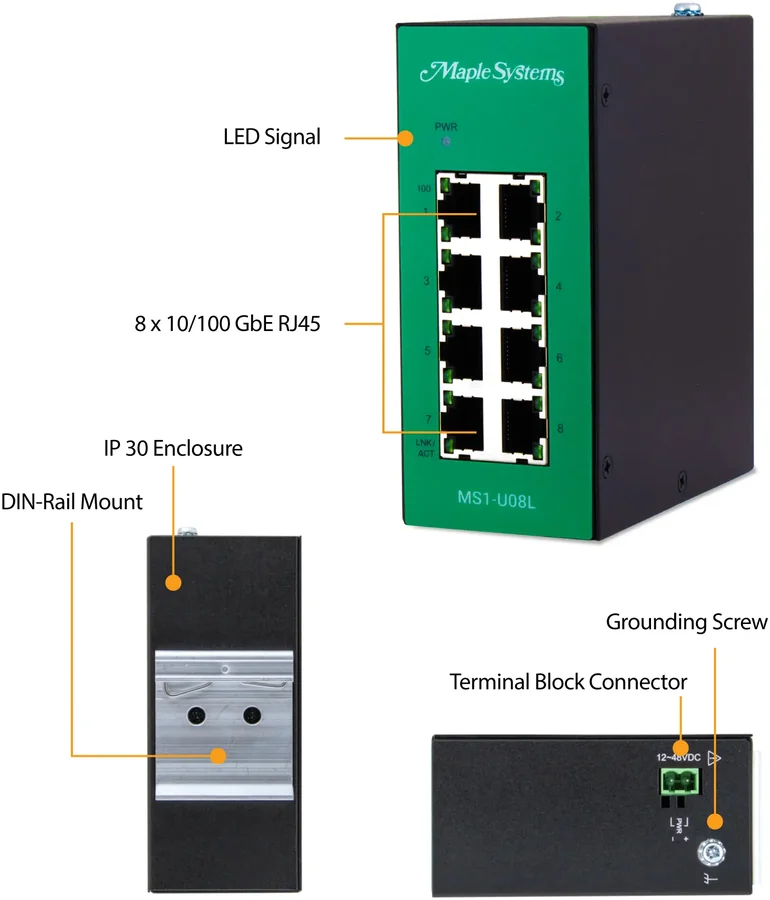

- 8 x 10/100 RJ45 ports
- Current Overload & Power Input Polarity Protection
- Auto-Negotiation, Flow Control, Storm Control, VLAN passthru
- Operating temperature -40℃~75℃ (-40°F~167°F)
- Metal Housing, Din-Rail
- IP30, UL, CE, FCC, RoHS, EMI, EMS, Shock, Vibration
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Port Specifications
- RJ45 Copper Ports
- Eight (8)
- RJ45 Speed
- 10/100BASE-T
- Auto Negotiation & MDI/MDI-X
- Supported
- RJ Nominal Max. Distance
- 328 feet (100 meters)
Performance
- Packet Buffer
- 448Kbits
- Jumbo Frame Size
- 1552 Bytes
- MAC Table Size
- 1K entries
- L2 Forwarding Rate
- 11.9Mpps
- Switch Fabric
- 1.6 Gbps
- Throughput
- 14,880 pps to 10 Mbps Ethernet ports / 148,800 pps to 100 Mbps Fast Ethernet ports
Traffic Control
- Flow Control
- Yes
- Storm Control
- Yes
- VLAN Passthru
- Supports up to 4094 VLAN IDs
- LLDP Filter
- Yes
IEEE Standards
- Compliance
- 802.3, 802.3u, 802.3x
Power Details

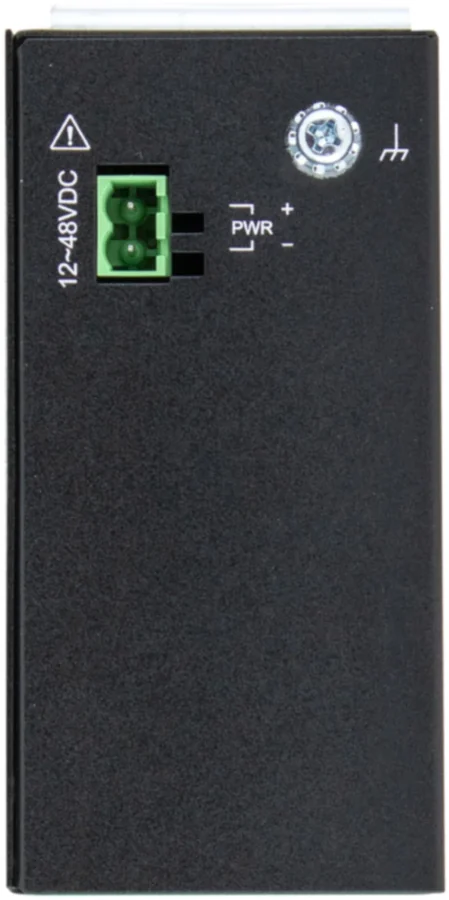

- Input Connector
- Terminal Block
- Max Input Current
- 0.125A @ 24VDC
- Max Power Consumption
- 3W
- Current Overload Protection
- Yes
- Input Voltage
- 12~48VDC, 0.2A max
- Reverse Polarity Protection
- Yes
- Power Input Polarity Protection
- Yes
Mecánico
- LED Panel
- PWR, 100, LNK/ACT
- Enclosure Material
- Black Powder-Coated Metal
- Dimensions WxHxD
- 50 x 119.2 x 99.9 mm (1.97 x 4.69 x 3.93”)
- Weight
- 435g (0.96 lb)
- Mounting
- 35 mm DIN Rail
Ambiental
- Operating Temperature
- -40°F~167°F (-40°C~75°C)
- Storage Temperature
- -40°F~185°F (-40°C~85°C)
- Operating/Storage Relative Humidity
- 5 to 95% RH (non-condensing)
Certifications/Standards
- UL
- cULus Listed
- RoHS
- Compliant
- FCC
- Class B Compliant
- Ingress Protection
- IP30
- Shock Test
- IEC 60068-2-27
- Freefall Test
- IEC 60068-2-31
- Vibration
- IEC 60068-2-6
- EMI / CE
- FCC Part 15 Class B, EN 55011, EN 55032 Class B, EN 61000-6-4
- EMS / CE
- EN 55024, EN 61000-6-2 / IEC 61000-4-2 (ESD): Level 3, IEC 61000-4-3 (RS): Level 3, IEC 61000-4-4 (Burst): Level 3, IEC 61000-4-5 (Surge): Level 3, EN 61000-4-6 (CS): Level 3, IEC 61000-4-8 (PFMF)
- CE UKCA
- Yes
- CE
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- MS1-U08L
- Línea
- Unmanaged Network Switch · Network Switch
- Categoría
- Redes industriales
- Precio y entrega
- Por cotización
