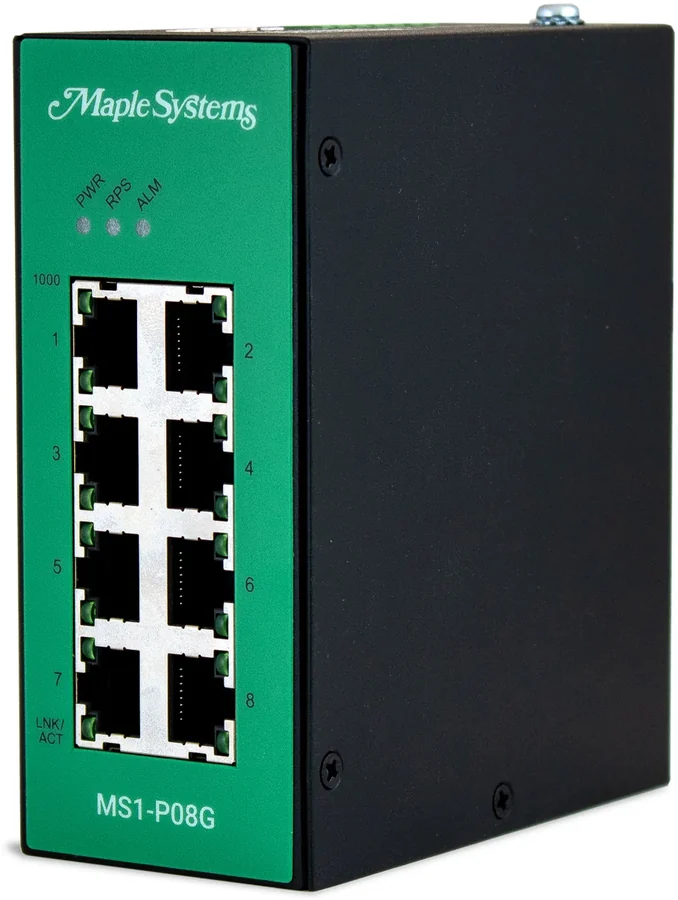

MS1-P08G
MS1-P08G is an unmanaged industrial switch for communication between controllers and devicMS1-P08G is an unmanaged industrial switch for communication between controllers and devices in automation settings with premium features . The device can be used with multi-axis robots and their peripherals such as PLCs, HMIs, and legacy devices. Additionally, it offers auto-negotiation on all its ports to aggregate devices easily in industrial ethernet applications.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 8 x 10/100/1000 RJ45 ports
- Industrial QoS (EIP (EtherNet/IP), PROFINET, and GOOSE packets)
- Auto-Negotiation, Flow Control, Storm Control, VLAN passthru, LLDP Filter
- Redundant Power Supply
- Operating temperature -40℃~75℃ (-40°F~167°F)
- DIN Rail Mount
- IP30, UL, CE, FCC, RoHS, EMI, EMS, Shock, Vibration
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Port Specifications
- RJ45 Copper Ports
- Eight (8)
- RJ45 Speed
- 10/100/1000BASE-T
- Auto Negotiation & MDI/MDI-X
- Supported
- RJ Nominal Max. Distance
- 328 feet (100 meters)
Performance
- Packet Buffer
- 4.1Mbits
- Jumbo Frame Size
- 9216 Bytes
- MAC Table Size
- 4K entries
- L2 Forwarding Rate
- 11.9Mpps
- Switch Fabric
- 16 Gbps
- Throughput
- 14,880 pps to 10 Mbps Ethernet ports / 148,800 pps to 100 Mbps Fast Ethernet ports / 1,488,000 pps to 1000 Mbps Gigabit Ethernet ports
Traffic Control
- Flow Control
- Yes
- Storm Control
- Yes
- VLAN Passthru
- Supports up to 4094 VLAN IDs
- LLDP Filter
- Yes
- Port Priority
- Port 1 and 2
- QoS Queue
- 8 per port (FIFO)
- Industrial QoS
- EtherNet/IP, PROFINET, GOOSE
- 802.1p QoS/CoS
- Prioritize QoS Tags (not configurable)
IEEE Standards
- Compliance
- 802.3, 802.3u, 802.3x, 802.3ab, 802.1p
Power Details
- Input Connector
- Terminal Block
- Max Input Current
- 0.208A @ 24VDC (without alarm) / 1.208A @ 24VDC (with alarm)
- Max Power Consumption
- 5W
- Current Overload Protection
- Yes
- Redundant Power System
- Yes
- Input Voltage
- 12-48 VDC
- Reverse Polarity Protection
- Yes
- Power Input Polarity Protection
- Yes
Network Management Features
- LLDP Filter
- Yes

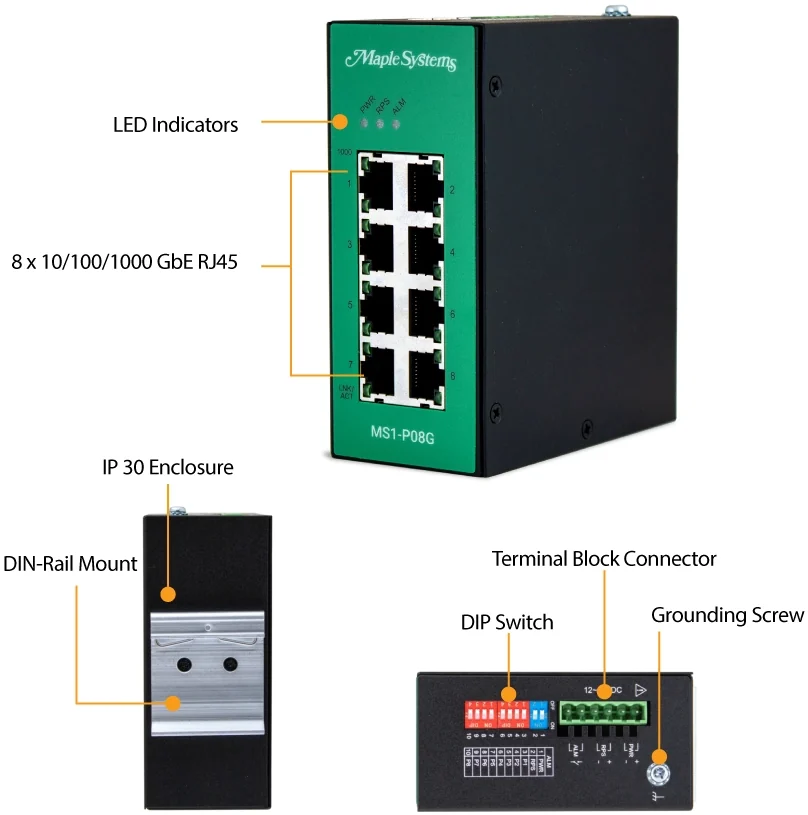

Mecánico
- LED Panel
- PWR, RPS, ALM, 1000, LNK/ACT
- Dip Switches
- PWR, RPS, P1~P8
- Alarm Relay
- 1 Relay Output, 1A @ 24VDC
- Enclosure Material
- Black Powder-Coated Metal
- Dimensions WxHxD
- 50 x 115.8 x 99.6 mm (1.97 x 4.56 x 3.92 in)
- Weight
- 480g (1.06 lb)
- Mounting
- 35 mm DIN Rail
Ambiental
- Operating Temperature
- -40°F~167°F (-40°C~75°C)
- Storage Temperature
- -40°F~185°F (-40°C~85°C)
- Operating/Storage Relative Humidity
- 5 to 95% RH (non-condensing)
Certifications/Standards
- UL
- cULus Listed
- RoHS
- Compliant
- FCC
- Class A Compliant
- Ingress Protection
- IP30
- Shock Test
- IEC 60068-2-27
- Freefall Test
- IEC 60068-2-31
- Vibration
- IEC 60068-2-6
- EMI / CE
- FCC Part 15 Class A, EN 55011 / BS EN 55011 Class A, EN 55032 / BS EN 55032 Class A, EN 61000-6-4 / BS EN 61000-6-4
- EMS / CE
- IEC 61000-4-2 (ESD), IEC 61000-4-3 (RS), IEC 61000-4-4 (Burst), IEC 61000-4-5 (Surge), EN 61000-4-6 (CS), IEC 61000-4-8 (PFMF) / EN 55035 / BS EN 55035 EN 61000-6-2 / BS EN 61000-6-2
- CE UKCA
- Yes
- CE
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- MS1-P08G
- Línea
- Unmanaged Network Switch · Network Switch
- Categoría
- Redes industriales
- Precio y entrega
- Por cotización
