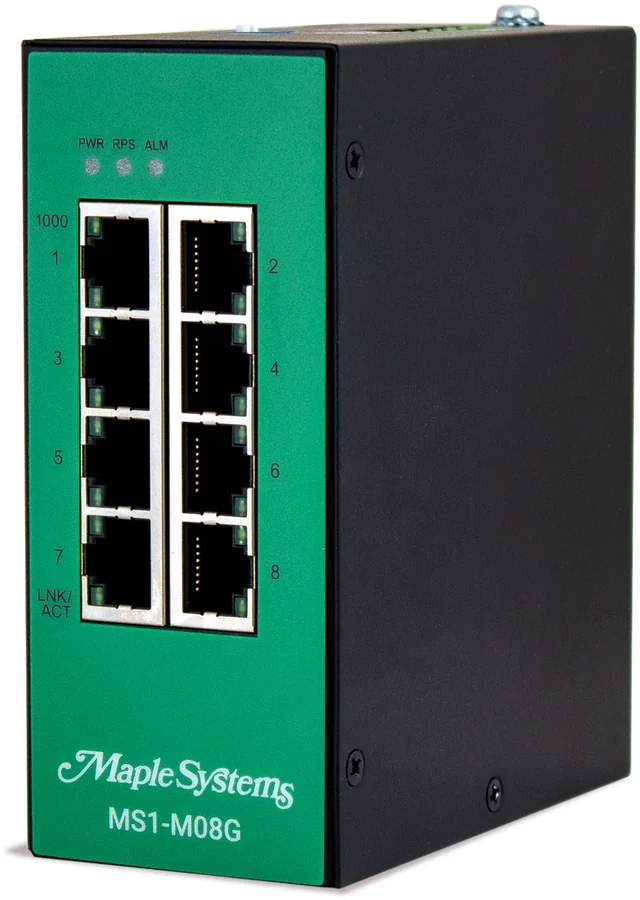

MS1-M08G
The MS1-M08G is a fully managed industrial switch designed to suit your heavy industrial eThe MS1-M08G is a fully managed industrial switch designed to suit your heavy industrial environments. Engineered with hardened components and enclosed in a rugged IP30 case, this industrial switch can operate in wide temperatures and has excellent tolerance capability to high vibration and shock.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 8 x 10/100/1000 RJ45 ports
- Auto-Negotiation, Flow Control, Storm Control, 802.1Q VLAN, Advanced Management Functionality, Advanced Security, Traffic Control, RSTP, STP, Code Redundancy
- Industrial QoS (EIP (EtherNet/IP), PROFINET, and GOOSE packets)
- Redundant Power Supply
- Operating temperature -40℃~75℃ (-40°F~167°F)
- Metal Housing, Din-Rail
- IP30, CE, FCC, RoHS, EMI, EMS, Shock, Vibration
- Supports MapleLink User Interface Dashboard
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Port Specifications
- RJ45 Copper Ports
- Eight (8)
- RJ45 Speed
- 10/100/1000BASE-T
- Auto Negotiation & MDI/MDI-X
- Supported
- RJ Nominal Max. Distance
- 328 feet (100 meters)
Performance
- Packet Buffer
- 4.1Mbits
- Jumbo Frame Size
- 10k Bytes
- MAC Table Size
- 8K entries
- L2 Forwarding Rate
- 11.9Mpps
- Switch Fabric
- 16 Gbps
- Throughput
- 14,880 pps to 10 Mbps Ethernet ports / 148,800 pps to 100 Mbps Fast Ethernet ports / 1,488,000 pps to 1000 Mbps Gigabit Ethernet ports
Reliability
- Code Redundancy
- Dual Flash Memory
- ERPS v1/v2
- <50ms revive time
- RSTP
- ~5-10 second revive time
- STP
- ~30-50 second revive time
- Dual Homing
- Yes
- LACP
- Yes
- MSTP
- Yes
- Static Trunk
- Yes
Traffic Control
- Static Multicast Address
- Yes
- Flow Control
- Per port (configurable)
- Loop Detection
- Per port (configurable)
- Port Isolation
- Per port (configurable)
- Storm Alarm Threshold Per Port
- Per port (configurable)
- Storm Control
- Per port (configurable)
- Traffic Monitor
- Abnormal Traffic Detection Per Port
- VLAN Passthru
- Supports up to 4094 VLAN IDs
- LLDP Filter
- Yes
- Port Priority
- Per port (configurable)
- QoS Queue
- Schedule Mode (High First (SPQ), Weighted Round Robin (WRR), Weighted Fair Queueing (WFQ))
- 802.1p QoS/CoS
- Port and DSCP Based (configurable)
VLAN
- 802.1Q VLAN
- 256 active entries
- MAC-Based VLAN
- Yes
- Management VLAN
- Yes
- Port-Based VLAN
- Port isolation (configurable)
- QinQ
- Yes
IEEE Standards
- Compliance
- 802.3, 802.3u, 802.3ab, 802.3x, 802.3az, 802.1AB, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1X / 802.1ad, 802.3ad, 802.1s

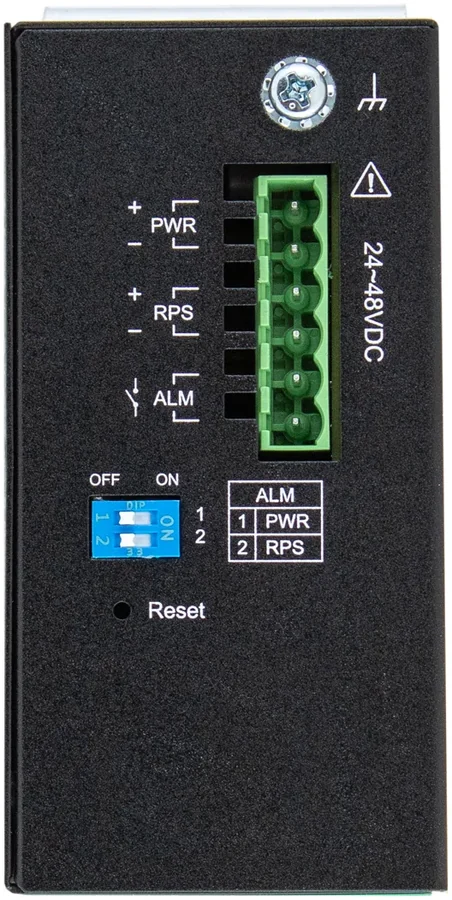

Power Details
- Input Voltage – Primary
- 24~48 VDC
- Input Voltage – Redundant
- 24~48 VDC
- Input Connector
- Terminal Block
- Max Input Current
- 0.35A @ 24 VDC without alarm / 1.35A @ 24 VDC with alarm
- Max Power Consumption
- 10W
- Current Overload Protection
- Yes
- Redundant Power System
- Yes
- Reverse Polarity Protection
- Yes
Network Management Features
- GUI
- Connect over HTTP or HTTPs
- Auto Provision
- Supports TFTP, FTP, and HTTP protocols
- Topology Map
- LLDP Discovery, or Manual Registration for MapleLink/MapleLink-Lite
- Device Management
- Supports IP-Cam, HMI, PLC, Switch, IPC, and PC
- TACACS+
- Yes
- Installation Wizard
- Not Supported on MapleLink
- Dashboard
- Not Supported on MapleLink
- CLI
- Connect over Telnet or SSH
- SNMP v1/v2c/v3
- See Manual for supported MIBs
- SNMP Trap
- Yes
- Management VLAN (MVLAN)
- Yes
- Firmware Upgradable
- Remote or Onsite, Manual or Automatic
- Configuration Backup/Restore
- Text-Based File, Remote or Onsite, Manual or Automatic
- Syslog
- Yes
- SNTP
- Yes
- LLDP
- Yes
- DHCP Client
- Obtain an IP via DHCP
- DHCP Relay
- Yes
- DHCP Option
- Supports Option 82
- Port Mirroring
- Per port (configurable)
- Server (Service) Control
- See Manual for Supported Servers (Services)
- Port Utilization
- Yes
- Alarm Information
- Yes
- Modbus TCP Client
- Read only, See Manual for available function codes
- Power Down Trap
- Yes
- Port Configuration
- Enable/Disable, Speed/Duplex
- ONVIF
- Yes
- Port Statistics
- Yes
- Remote System Reboot
- GUI/CLI
- User Account with Authority
- Utilizing 802.1X
Security Features
- STP/RSTP
- Configurable BPDU Filter, BPDU Guard, ROOT Guard
- GUI
- HTTPs
- CLI
- SSH
- IGMP Snooping
- Yes
- ACL (Access Control List)
- Yes
- Port Security
- MAC Limit
- Port-Based 802.1X
- Utilizing RADIUS
- Trusted Managed Host
- Yes
- DHCP Server Screening
- Yes
- DHCP Snooping
- Yes
- IP Source Guard
- DHCP Snooping, DHCP Binding Table, ARP inspection
- MAC Search
- Yes
- Managed Host
- Yes
- Refusal MAC
- Yes
- SNMPv3
- Yes
- Static MAC
- Yes
- Sticky MAC
- Yes
Mecánico

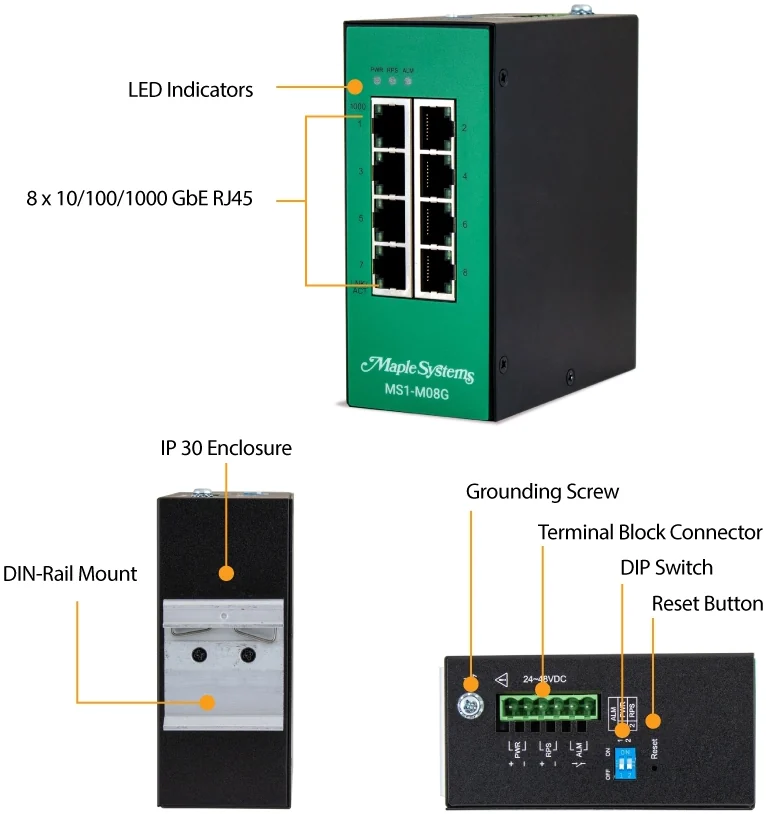

- LED Panel
- PWR, RPS, ALM, 1000, LNK/ACT
- Dip Switches
- Primary/Redundant Power Voltage Drop Alarm Setting
- Alarm Relay
- 1 Relay Output, 1A @ 24VDC
- Enclosure Material
- Black Powder-Coated Metal
- Dimensions WxHxD
- 50 x 116 x 100 mm (1.97 x 4.56 x 3.93 in)
- Weight
- 550g (1.21 lb)
- Mounting
- 35 mm DIN Rail
Ambiental
- Operating Temperature
- -40°F~167°F (-40°C~75°C)
- Storage Temperature
- -40°F~185°F (-40°C~85°C)
- Operating/Storage Relative Humidity
- 5 to 95% RH (non-condensing)
Certifications/Standards
- RoHS
- Compliant
- FCC
- Class A Compliant
- Ingress Protection
- IP30
- Shock Test
- IEC 60068-2-27
- Freefall Test
- IEC 60068-2-31
- Vibration
- IEC 60068-2-6
- EMI / CE
- FCC Part 15 Class A, EN 55011 / BS EN 55011 Class A, EN 55032 / BS EN 55032 Class A, EN 61000-6-4 / BS EN 61000-6-4
- EMS / CE
- IEC 61000-4-2 (ESD), IEC 61000-4-3 (RS), IEC 61000-4-4 (Burst), IEC 61000-4-5 (Surge), EN 61000-4-6 (CS), IEC 61000-4-8 (PFMF) / EN 55035 / BS EN 55035 EN 61000-6-2 / BS EN 61000-6-2
- CE UKCA
- Yes
- CE
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- MS1-M08G
- Línea
- Network Switch · Managed Network Switch
- Categoría
- Redes industriales
- Precio y entrega
- Por cotización
