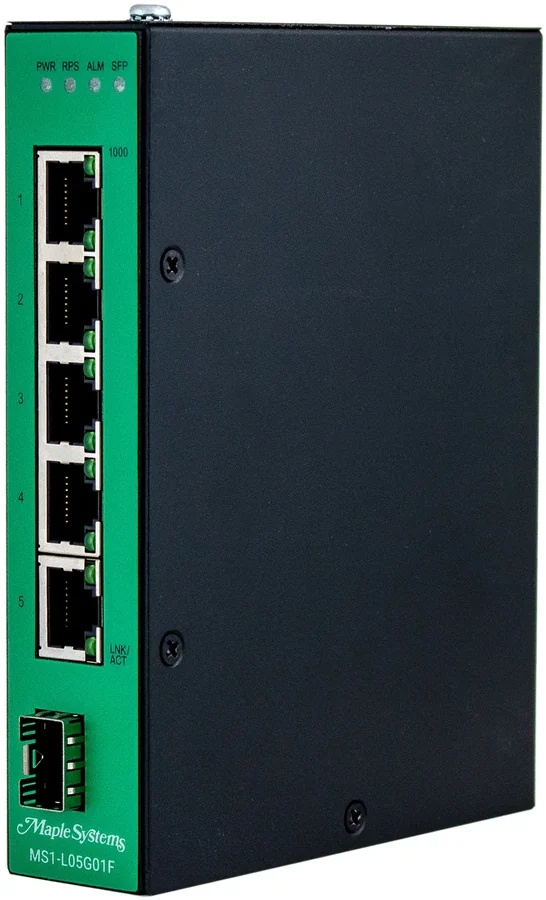

MS1-L05G01F
For use with all product
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.

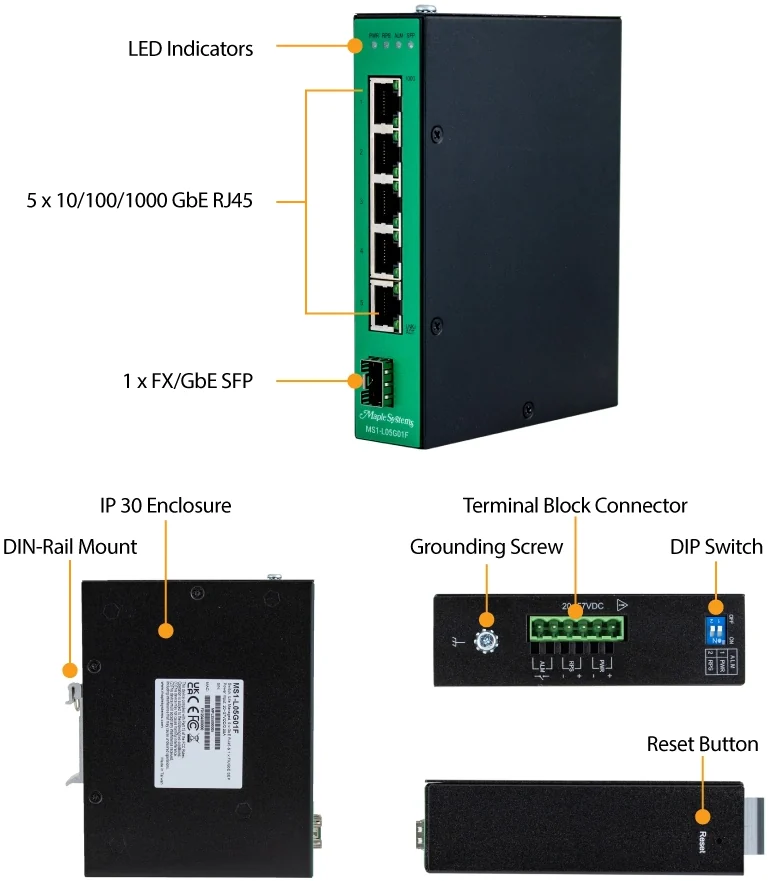

- 5 x 10/100/1000 RJ45, 1 x FX/GbE SFP uplink port
- Auto-Negotiation, Flow Control, Storm Control, 802.1Q VLAN, Advanced Management Functionality, Security, Traffic Control, STP, RSTP, ERPS
- Industrial QoS (EIP (Ethernet/IP), PROFINET, and GOOSE packets)
- Redundant Power Supply
- Operating temperature -10℃ to 60℃ (14°F~140°F)
- Metal Housing, Din-Rail
- IP30, CE, FCC, RoHS, EMI, EMS, Shock, Vibration
- Supports MapleLink-Lite User Interface Dashboard
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Port Specifications
- SFP Ports
- One (1) Mini-GBIC (SFP) with speeds of 100/1000Mbps
- Fiber Port Connectors
- LC
- Optimal Fiber Transceiver
- SX/LX/Bi-Directional
- Optimal Copper Transceiver
- 100BASE-TX/1000BASE-T SFP
- Wavelength (Bi-Directional)
- 1310nm/1490nm, 1310nm/1550nm, 1490nm/1550nm
- Wavelength (Multi Mode)
- 850nm, 1300nm
- Wavelength (Single Mode)
- 1310nm, 1550nm
- Fiber Nominal Max. Distance
- Dependent on cable type, and associated wavelength
- RJ45 Copper Ports
- Five (5)
- RJ45 Speed
- 10/100/1000BASE-T
- Auto Negotiation & MDI/MDI-X
- Supported
- RJ Nominal Max. Distance
- 328 feet (100 meters)
Performance
- Packet Buffer
- 4.1Mbits
- Jumbo Frame Size
- 10k Bytes
- MAC Table Size
- 8K entries
- L2 Forwarding Rate
- 8.9Mpps
- Switch Fabric
- 12 Gbps
- Throughput
- 14,880 pps to 10 Mbps Ethernet ports / 148,800 pps to 100 Mbps Fast Ethernet ports / 1,488,000 pps to 1000 Mbps Gigabit Ethernet ports
Reliability
- ERPS v1/v2
- <50ms revive time
- RSTP
- ~5-10 second revive time
- STP
- ~30-50 second revive time
Traffic Control
- Flow Control
- Per port (configurable)
- Loop Detection
- Per port (configurable)
- Port Isolation
- Per port (configurable)
- Storm Alarm Threshold Per Port
- Per port (configurable)
- Storm Control
- Per port (configurable)
- Traffic Monitor
- Abnormal Traffic Detection Per Port
- VLAN Passthru
- Supports up to 4094 VLAN IDs
- LLDP Filter
- Yes
- Port Priority
- Per port (configurable)
- 802.1p QoS/CoS
- Port Based (configurable)
VLAN
- 802.1Q VLAN
- Yes
- Port-Based VLAN
- Port isolation (configurable)
IEEE Standards
- Compliance
- 802.3, 802.3u, 802.3ab, 802.3x, 802.3az, 802.1AB, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1X / 802.3z
Power Details
- Input Voltage – Primary
- 20~57 VDC
- Input Voltage – Redundant
- 20~57 VDC
- Input Connector
- Terminal Block
- Max Input Current
- 0.35A @ 24 VDC without alarm / 1.35A @ 24 VDC with alarm
- Max Power Consumption
- 10W
- Current Overload Protection
- Yes
- Redundant Power System
- Yes
- Reverse Polarity Protection
- Yes
Network Management Features
- GUI
- Connect over HTTP or HTTPs
- Topology Map
- LLDP Discovery, or Manual Registration for MapleLink/MapleLink-Lite
- Device Management
- Supports IP-Cam, HMI, PLC, Switch, IPC, and PC
- Installation Wizard
- MapleLink-Lite
- Dashboard
- MapleLink-Lite
- CLI
- Connect over Telnet or SSH
- SNMP v1/v2c/v3
- See Manual for supported MIBs
- SNMP Trap
- Yes
- Management VLAN (MVLAN)
- Yes
- Firmware Upgradable
- Remote or Onsite, Manual or Automatic
- Configuration Backup/Restore
- Text-Based File, Remote or Onsite, Manual or Automatic
- Syslog
- Yes
- SNTP
- Yes
- LLDP
- Yes
- DHCP Client
- Obtain an IP via DHCP
- Port Mirroring
- Per port (configurable)
- Server (Service) Control
- See Manual for Supported Servers (Services)
- Port Utilization
- Yes
- Alarm Information
- Yes
- Modbus TCP Client
- Read only, See Manual for available function codes
- Power Down Trap
- Yes
- Port Configuration
- Enable/Disable, Speed/Duplex
- ONVIF
- Yes
- Port Statistics
- Yes
- Remote System Reboot
- GUI/CLI
- User Account with Authority
- Utilizing 802.1X
Security Features
- STP/RSTP
- Configurable BPDU Filter, BPDU Guard, ROOT Guard
- GUI
- HTTPs
- CLI
- SSH
- IGMP Snooping
- Yes
- ACL (Access Control List)
- Yes
- Port Security
- MAC Limit
- Port-Based 802.1X
- Utilizing RADIUS
- Trusted Managed Host
- Yes
- SNMPv3
- Yes
Mecánico
- LED Panel
- PWR, RPS, ALM, SFP, 1000, LNK/ACT
- Dip Switches
- Primary/Redundant Power Voltage Drop Alarm Setting
- Alarm Relay
- 1 Relay Output, 1A @ 24VDC
- Enclosure Material
- Black Powder-Coated Metal
- Dimensions WxHxD
- 31 x 136 x 109.5 mm (1.22 x 5.35 x 4.31 in)
- Weight
- 280g (0.62 lb)
- Mounting
- 35 mm DIN Rail
Ambiental
- Operating Temperature
- 14°F~140°F (-10°C~60°C)
- Storage Temperature
- -40°F~185°F (-40°C~85°C)
- Operating/Storage Relative Humidity
- 5 to 95% RH (non-condensing)
Certifications/Standards
- RoHS
- Compliant
- FCC
- Class A Compliant
- Ingress Protection
- IP30
- Shock Test
- IEC 60068-2-27
- Freefall Test
- IEC 60068-2-31
- Vibration
- IEC 60068-2-6
- EMI / CE
- FCC Part 15 Class A, EN 55011 / BS EN 55011 Class A, EN 55032 / BS EN 55032 Class A, EN 61000-6-4 / BS EN 61000-6-4
- EMS / CE
- IEC 61000-4-2 (ESD), IEC 61000-4-3 (RS), IEC 61000-4-4 (Burst), IEC 61000-4-5 (Surge), EN 61000-4-6 (CS), IEC 61000-4-8 (PFMF) / EN 55035 / BS EN 55035 EN 61000-6-2 / BS EN 61000-6-2
- CE UKCA
- Yes
- CE
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- MS1-L05G01F
- Línea
- Network Switch · Lite Managed Network Switch
- Categoría
- Redes industriales
- Precio y entrega
- Por cotización
