MON6010APHEB

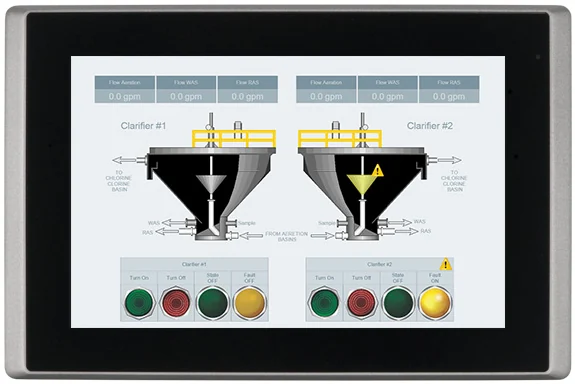

With a high-brightness sunlight readable 1000 nit optically bonded , projected capacitive With a high-brightness sunlight readable 1000 nit optically bonded , projected capacitive touchscreen, this fanless extended temperature industrial monitor is a great value. Requiring no calibrating this plug and play touch screen monitor can be paired with a Box PC or create an Andon Display with our HDMI-Enabled HMI . VESA or Panel Mount.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Optically Bonded, Projected Capacitive Touchscreen
- 1280 x 800 Resolution, 1000nits High Brightness
- -20 ~ 60 C Extended Operating Temperature
- VGA, DVI-D, DisplayPort, HDMI Inputs
- Fanless, IP66, Panel or VESA mount
- Panel Cutout: 10.71 x 6.93″ [272 x 176 mm]
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com

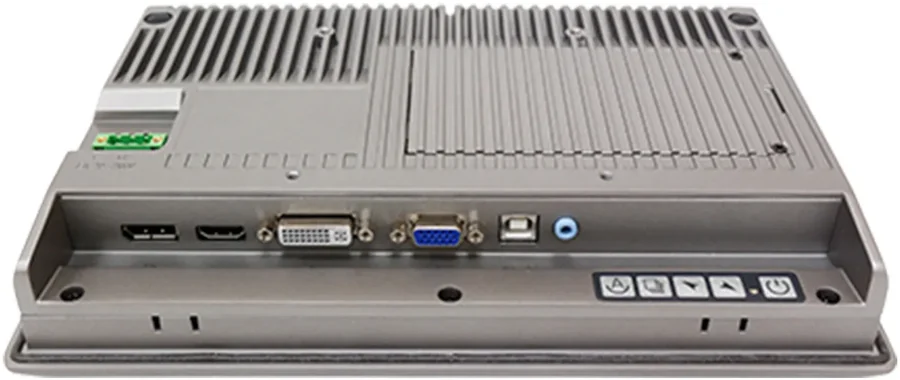

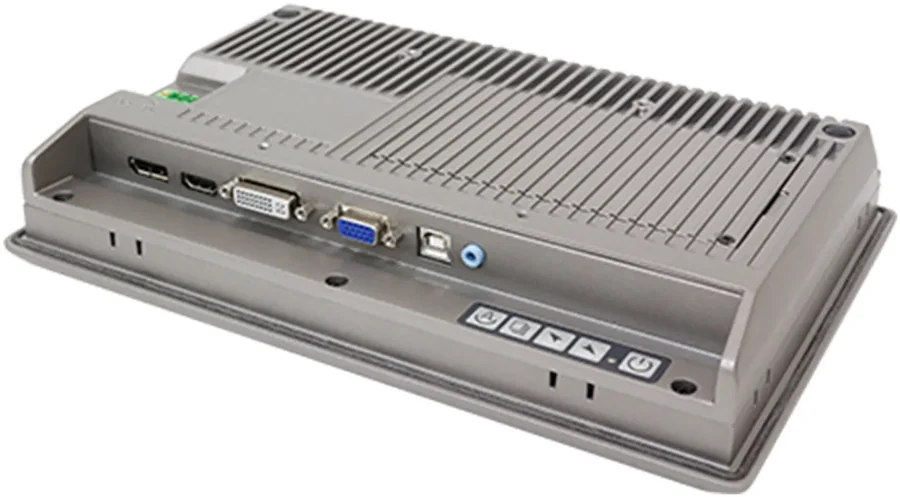

Puertos de E/S
- Power
- 3-pin connector header, DC power input
- Power Switch
- 1 x Momentary Pushbutton with Integrated LED
- Display Interface Options
- 1 x VGA 1 x DVI-D 1 x DisplayPort 1.2 1 x HDMI® 1.4a
- On-Screen Display
- OSD Control Panel at Rear of Chassis
- USB 2.0 Type B
- 1
Pantalla
- Resolution
- 1280 x 800
- Luminance (cd/m^2)
- 1000
- Contrast Ratio
- 1000:1
- Backlight Lifetime (hrs)
- 50,000+
- Colors
- 16.7 M
- Display Type
- 10.1” WXGA TFT LCD
- Viewing Angle (H°/V°)
- 170/170
Pantalla táctil
- Light Transmission
- 90+%
- Optical Bonding
- Yes
- Touch Screen Type
- Projected Capacitive Touch
- Interface
- USB
Eléctrico
- Input Power
- 9.8 W
- Input Voltage
- 9-36 VDC
- Input Current
- 0.27-1.09 A
Mecánico
- Dimensions WxHxD
- 11.22 x 7.44 x 1.93” [285 x 189 x 48.9 mm]
- Panel Cutout (inches) [mm]
- 10.71 x 6.93 [272 x 176 ]
- Weight
- ~ 4.19 lbs [1.9 kg]
- Mounting
- Panel mounting, VESA 100 x 100 mm
- Construction
- Silver die-cast aluminum chassis
Ambiental
- Operating Temperature
- -4~140°F [-20~60°C]
- Storage Temperature
- -22~158°F [-30~70°C]
- Storage Humidity
- 10 to 95% @ 40°C, non-condensing
Certificaciones
- NEMA Rating
- NEMA 4 when panel mounted
- IP Rating
- IP66
- CE
- Yes
- RoHS
- Yes
- FCC
- FCC Class A
Datos del producto
- Marca
- Maple Systems
- Número de parte
- MON6010APHEB
- Línea
- High-Brightness Monitors · Extended Temp. Monitors · Industrial Monitors
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
