MON1010APv2

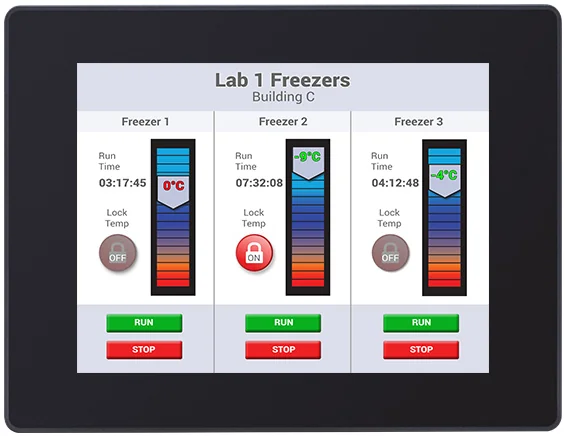

This Projected Capacitive Touchscreen Monitor has a black steel chassis making it extremelThis Projected Capacitive Touchscreen Monitor has a black steel chassis making it extremely durable. With the projected capacitive technology, can be used with any type of gloves and paired with a Box PC or create an Andon Display with our HDMI-Enabled HMI . VESA or Panel Mount. Does not include power supply. See recommended power supply 4010-0015 if required.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- High-Resolution Projected Capacitive Touchscreen
- 1024 x 768 Resolution
- Steel Chassis
- HDMI, VGA, DVI-D, DisplayPort Inputs
- Fanless, IP65, Panel or VESA mount
- Panel Cutout: 10.63 x 7.95″ [270 x 202 mm]
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com

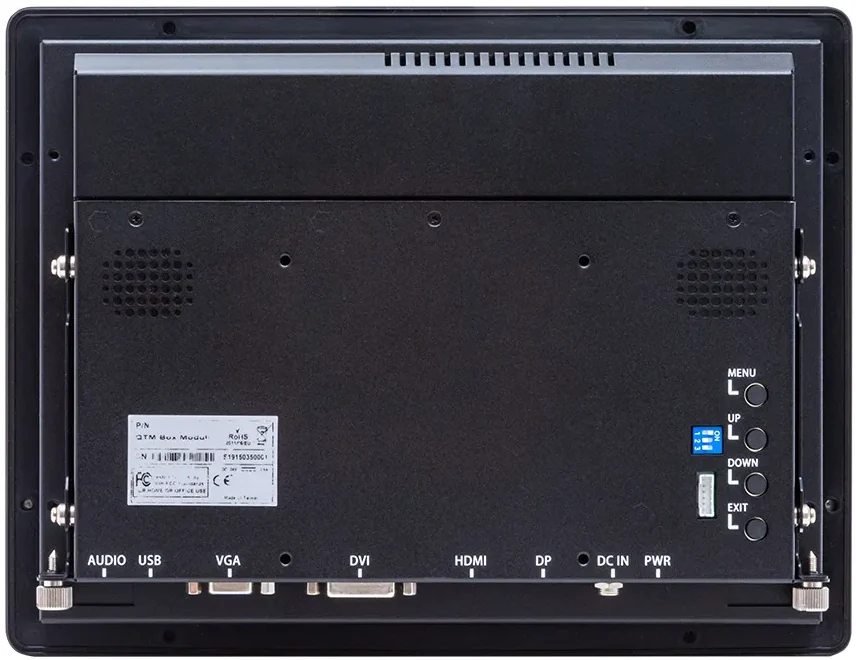

Puertos de E/S
- Power
- DC power input jack, thumbscrew secured.
- Power Switch
- 1 x Momentary Pushbutton with Integrated LED
- Display Interface Options
- 1 x VGA 1 x DVI-D 1 x DisplayPort 1.2 1 x HDMI® 1.4a
- On-Screen Display
- OSD Control Panel at Rear of Chassis
- USB 2.0 Type B
- 1
Pantalla
- Resolution
- 1024 X 768
- Luminance (cd/m^2)
- 350
- Contrast Ratio
- 1000:1
- Backlight Lifetime (hrs)
- 50,000+
- Colors
- 16.2 M
- Display Type
- 10.4” TFT XGA LCD
- Viewing Angle (H°/V°)
- 170/170
Pantalla táctil
- Touch Screen Type
- Projected Capacitive Touch
- Interface
- USB
Eléctrico
- Input Power
- 7 W
- Input Voltage
- 12~24 VDC
- Input Current
- 0.29~0.58 A
Mecánico
- Dimensions WxHxD
- 11.58 x 8.90 x 2.16” [294 x 226 x 54.9 mm]
- Panel Cutout (inches) [mm]
- 10.63 x 7.95 [270 x 202 ]
- Weight
- ~ 6.17 lbs [2.8 kg]
- Mounting
- Panel mounting, VESA 100 x 100
- Construction
- Black Steel Chassis
Ambiental
- Operating Temperature
- 32~104°F [0~40°C]
- Storage Temperature
- -22~175°F [-30~80°C]
- Storage Humidity
- 10 to 90% @ 40°C, non-condensing
Certificaciones
- NEMA Rating
- NEMA 4 when panel mounted
- IP Rating
- IP65 compliant front panel
- CE
- Yes
- RoHS
- Yes
- FCC
- FCC Class B
Datos del producto
- Marca
- Maple Systems
- Número de parte
- MON1010APv2
- Línea
- Industrial Monitors
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
