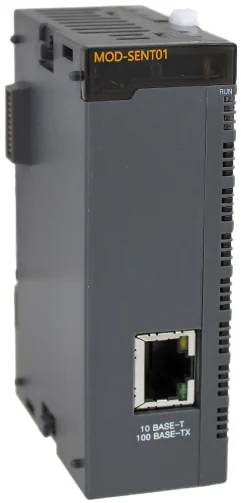

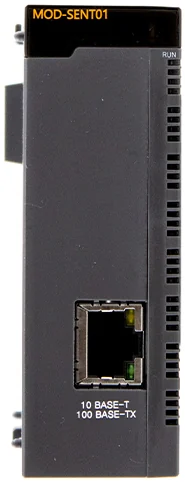

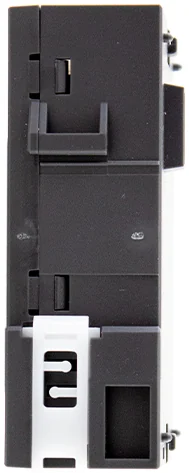

MOD-SENT01
Communication Module with Ethernet port to set PLC as TCP Master/Slave. Supports: Modbus RCommunication Module with Ethernet port to set PLC as TCP Master/Slave. Supports: Modbus RTU Master/Slave TCP Master/Slave User Protocol RTU/TCP High-Speed PLC Link (enabling high-speed communication between Maple PLCs
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Compatible expansion with any Maple Systems Modular PLC CPU
- Supports Modbus TCP/IP (Master/Slave)
- Supports User Ethernet Protocol
- Supports High-Speed PLC link enabling high-speed communication between Maple Systems PLCs
Hoja de datosmaplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Functional
- Detail
- 10 BASE-T, 100 BASE-TX, Modbus TCP Master/Slave
- Transmission Speed
- 10/100 Mbps
- Maximum Distance
- 100m
- Loader
- Yes (UDP)
- User Protocol
- Yes (TCP, UDP)
Comunicación
- Communication Ports
- 1 Ethernet Port
- Interface
- RJ45
- Modbus Master
- Yes (TCP)
- Modbus Slave
- Yes (TCP)
- High-Speed PLC Link
- Yes
Mecánico
- Dimensions WxHxD
- 90 x 20 x 63 mm (3.5 x 0.8 x 2.5 in)
- Weight
- 77 g (0.17 lb)
- Mounting
- 35mm DIN Rail Mounting
- Shock
- 15G
- Vibration
- 0.5G – Continuous, 1G – Discontinuous
- Square Wave Impulse Noise
- ±2 kV
- ESD Immunity
- ±4 kV – Contact Discharges, ±8 kV – Air Discharges
- Surge Transient Immunity
- 2 kV – CPU, Power; 2 kV – Digital I/O (VAC); 1 kV – Digital I/O (VDC); 1 kV – Communication
Ambiental
- Operating Temperature
- -10 – 60 °C (14 – 140 °F)
- Storage Temperature
- -25 – 80 °C (-13 – 176 °F)
- Operating/Storage Relative Humidity
- 5 – 95% Non-condensing
Certificaciones
- CE
- Yes
- UL
- Yes
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- MOD-SENT01
- Línea
- All PLCs · Modular PLCs
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
