IR-ETN40R

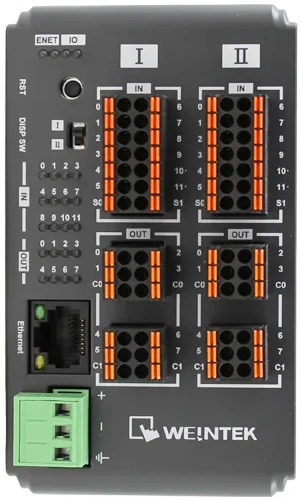

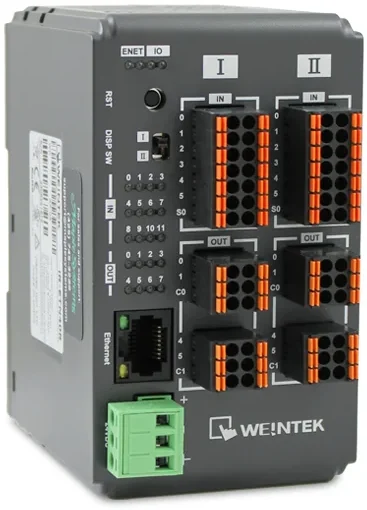

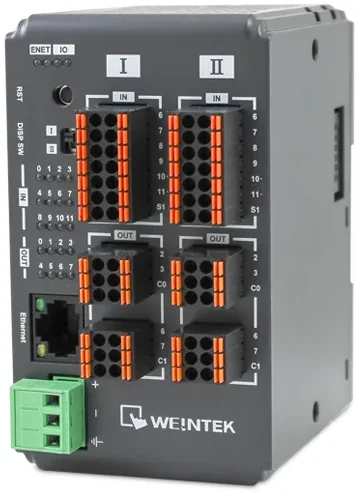

This product acts as a Modbus TCP, or EtherNet/IP, communication coupler between your CMT This product acts as a Modbus TCP, or EtherNet/IP, communication coupler between your CMT X Series HMI and your I/O. This unit comes with 24 Digital Inputs ( 4-High Speed ) and 16 Digital Outputs ( Relay ) built-in, but you can connect additional Digital or Analog I/O modules to this unit to meet your project needs. Exclusive to the iR-ETN40R, this unit supports Stop Output and Pulse Capture.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Modbus TCP/IP Server, EtherNet/IP
- Pair with up to 16 I/O Modules (Depending on Power consumption)
- 24 Digital Inputs Relay (4-High Speed)
- 16 Digital Outputs
- Stop Output & Pulse Capture
Hoja de datosmaplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Indicators
- ENET Green
- Device Status Indicator
- ENET Red
- Device Error Indicator
- IO Green
- Module Status Indicator
- IO Red
- Module Error Indicator
Comunicación
- No. of Ports
- 1
- Network to Logic Isolation
- Yes
- Data Transfer Rate
- 10/100 Mbps
- Data Transfer Medium
- 4 x 2 twisted pair copper cable; category 3 (10 Mbps), category 5 (100 Mbps)
- Distance Between Stations
- 100m between hub/switch and Bus Coupler or between Bus Coupler and Bus Coupler
- Protocol
- Modbus TCP Server, EtherNet/IP adapter
- Max. Number of TCP/IP Connections
- 8 connections
Digital Input
- Isolation
- Yes, optical isolation
- Number of General Inputs
- 20
- Input Logic
- Sink or Source
- Logic 1 Input Voltage
- 15~28 VDC
- Logic 0 Input Voltage
- 0~5 VDC
- Response Time
- OFF -> ON 5ms; ON -> OFF 1ms
- Input Impedance
- 5.6 KΩ
High Speed Digital Input
- High Speed Input Logic
- Sink Input (PNP)
- High Speed Logic 1 Input Voltage
- 15~28 VDC
- High Speed Logic 0 Input Voltage
- 0~5 VDC
- Max. High Speed Input Frequency
- 20 KHz
- High Speed Input Impedance
- 3 KΩ
- Number of High Speed Digital Inputs
- 4
Digital Output
- Total Number of Outputs
- 16
- Output Logic
- Relay
- Output Voltage
- 250VAC/30VDC
- Output Current
- 2A per channel (Max 8A)
- Response Time
- 10ms
- Isolation
- Yes, electromagnetic isolation
Expansion I/O
- Digital Input Point
- Max. 224 (Including 24 built-in points and the max. allowable number is 248 points.)
- Digital Output Point
- Max. 112 (Including 16 built-in points and the max. allowable number is 128 points.)
- Analog Input Channel
- Max. 64
- Analog Output Channel
- Max. 64
Eléctrico
- Power Dissipation
- Nominal 255mA@24VDC
- Current for Internal Bus
- Max 2A@5VDC
- Current Consumption
- 520mA@5VDC
- Power Supply
- 24 VDC (-15%/+20%)
- Back-up Fuse
- ≤ 1.6A Self-recovery
- Electrical Isolation
- Logic to Field Power Isolation: Yes
Mecánico
- Enclosure Material
- Plastic
- PCB Coating
- Yes
- Dimensions WxHxD
- 64 x 109 x 81 mm
- Weight
- Approx. 0.27 kg
- Mounting
- 35mm DIN Rail Mounting
Ambiental
- Altitude (Air Pressure)
- Below 3000 meters (70.1kPa)
- Operating Temperature
- -10° ~ 60°C (14° ~ 140°F)
- Storage Temperature
- -20° ~ 70°C (-4° ~ 158°F)
- Relative Humidity
- 10% ~ 90% (non-condensing)
- Vibration Endurance
- 10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes)
Certificaciones
- IP Rating
- IP20
- CE
- Yes
- UL
- cULus Listed
- EMC Immunity
- Conforms to EN 55032: 2012+AC: 2013, Class A EN 61000-6-4: 2007+A1:2011 EN 55024: 2010+A1: 2015 EN 61000-6-2:2005
Datos del producto
- Marca
- Maple Systems
- Número de parte
- IR-ETN40R
- Línea
- Couplers
- Categoría
- Redes industriales
