IR-ETN
This communication coupler is required when you want a qualifying cMT HMI , or PLC Base ( This communication coupler is required when you want a qualifying cMT HMI , or PLC Base ( cMT-CTRL01 ), to communicate to I/O Expansion Modules via the Modbus TCP/IP or Ethernet/IP Protocol. Only one coupler is required for up to 16 I/O expansion modules. Technical Articles Connect an iR-ETN (Remote IO) to a Maple Systems PLC over Modbus
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Modbus TCP/IP Server, EtherNet/IP
- Pair with up to 16 I/O Modules (Depending on Power consumption)
- CE, cULus, RoHS
Hoja de datosmaplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com

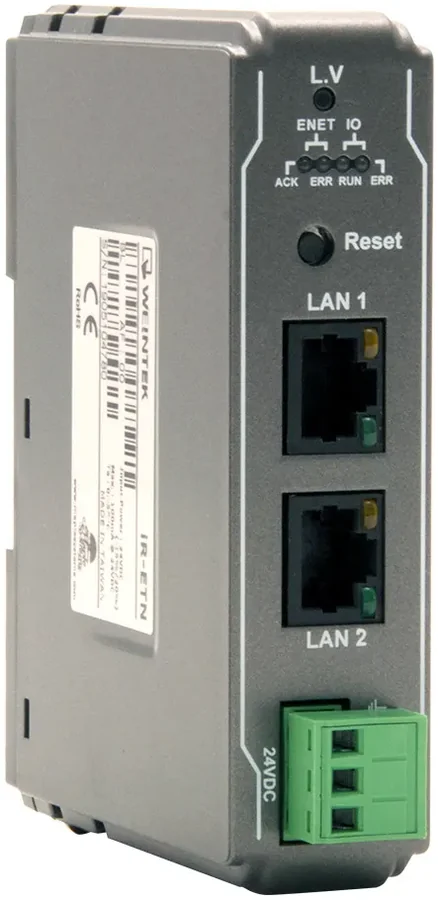

Indicators
- ENET ACK (Green)
- Device Status Indicator
- ENET ERR (Red)
- Device Error Indicator
- L.V (Red)
- Low Voltage Status Indicator
- IO RUN (Green)
- Module Status Indicator
- IO ERR (Red)
- Module Error Indicator
Comunicación
- Data Transfer Rate
- 10/100 Mbps
- Data Transfer Medium
- 4 x 2 twisted pair copper cable; category 3 (10 Mbps), category 5 (100 Mbps)
- Distance Between Stations
- 100m between hub/switch and Bus Coupler or between Bus Coupler and Bus Coupler
- Protocol
- Modbus TCP/IP Server, Ethernet/IP
- Max. Number of TCP/IP Connections
- 8 connections
- Topology
- line or star wiring
Expansion I/O
- No. of Bus Terminals
- Depends on Power Consumption
- Digital Input Point
- Max. 256
- Digital Output Point
- Max. 128
- Analog Input Channel
- Max. 64
- Analog Output Channel
- Max. 64
Eléctrico
- Power Dissipation
- Nominal 100mA@24VDC
- Current for Internal Bus
- Max 2A@5VDC
- Current Consumption
- 220mA@5VDC
- Power Supply
- 24 VDC (-15%/+20%)
- Back-up Fuse
- ≤ 1.6A Self-recovery
- Electrical Isolation
- Network to Logic: Isolation; Logic to Field power: Isolation

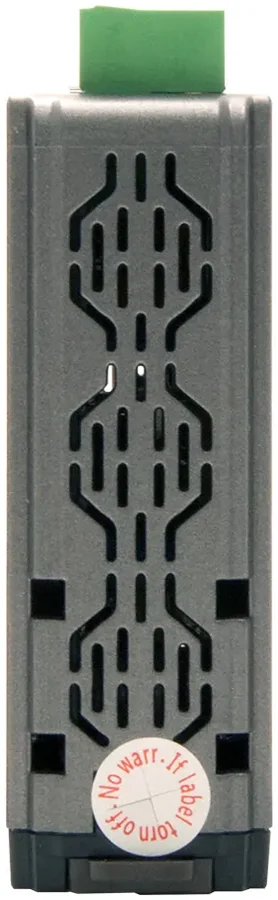

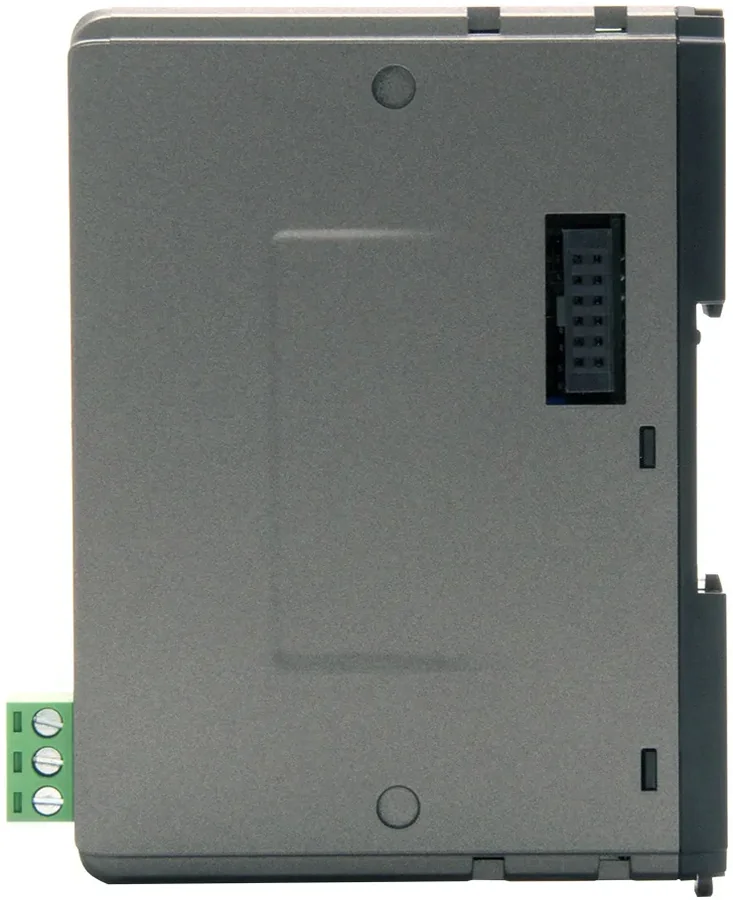

Mecánico
- Enclosure Material
- Plastic
- PCB Coating
- Yes
- Dimensions WxHxD
- 27 x 109 x 81 mm
- Weight
- Approx. 0.15 kg
- Mounting
- 35mm DIN Rail Mounting
Ambiental
- Operating Temperature
- 0° ~ 55°C (32° ~ 131°F)
- Storage Temperature
- -20° ~ 70°C (-4° ~ 158°F)
- Storage Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- IP Rating
- IP20
- EMC Immunity
- Conforms to EN 55032: 2012+AC: 2013, Class A EN 61000-6-4: 2007+A1:2011 EN 55024: 2010+A1: 2015 EN 61000-6-2:2005
Datos del producto
- Marca
- Maple Systems
- Número de parte
- IR-ETN
- Línea
- Couplers
- Categoría
- Redes industriales
- Precio y entrega
- Por cotización
