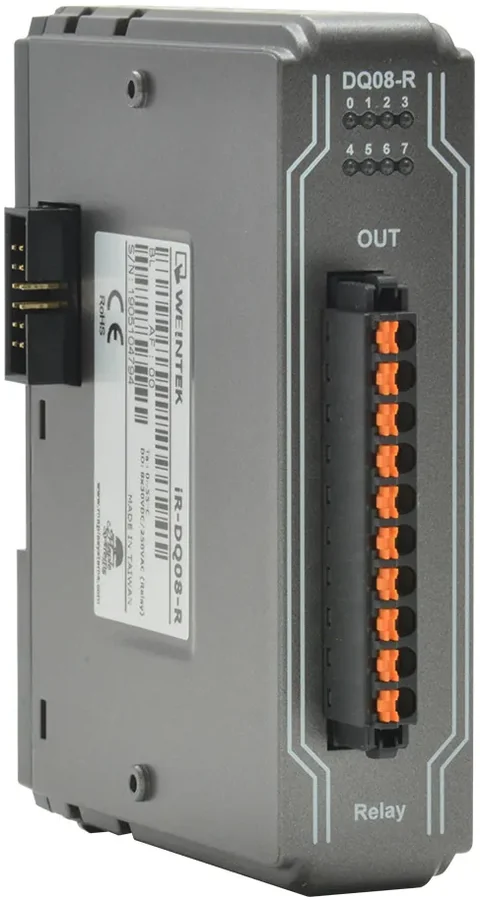

IR-DQ08-R
As part of the iR Series, this I/O module works with any qualifying cMT HMI or PLC Base ( As part of the iR Series, this I/O module works with any qualifying cMT HMI or PLC Base ( cMT-CTRL01 ) to implement a control solution that utilizes our free EasyRemoteIO software or CODESYS programming. Mix and match additional I/O modules to meet your unique project needs. See below for more information how this module integrates with other hardware.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 8 Relay Digital Outputs
Hoja de datosmaplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Comunicación
- Connection Cross-section
- AWG 24-16
Digital Output
- Total Number of Outputs
- 8
- Output Logic
- Relay
- Output Voltage
- 250VAC/30VDC
- Output Current
- 2A per channel (Max 8A)
- Response Time
- 10ms
- Isolation
- Yes, electromagnetic isolation
- Current Consumption
- 220mA@5VDC
Mecánico
- Enclosure Material
- Plastic
- Dimensions WxHxD
- 27 x 109 x 81 mm
- Weight
- Approx. 0.13 kg
- Mounting
- 35mm DIN Rail Mounting
Ambiental
- Operating Temperature
- 0° ~ 55°C (32° ~ 131°F)
- Storage Temperature
- -20° ~ 70°C (-4° ~ 158°F)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- IP Rating
- IP20
- CE
- Yes
- UL
- cULus Listed
- RoHS
- Yes
- EMC Immunity
- Conforms to EN 55032: 2012+AC: 2013, Class A EN 61000-6-4: 2007+A1:2011 EN 55024: 2010+A1: 2015 EN 61000-6-2:2005
Datos del producto
- Marca
- Maple Systems
- Número de parte
- IR-DQ08-R
- Línea
- I/O Modules
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
