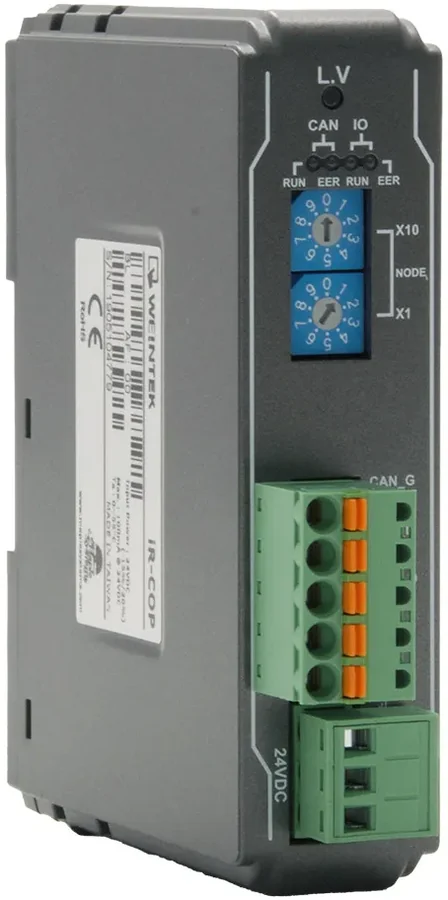

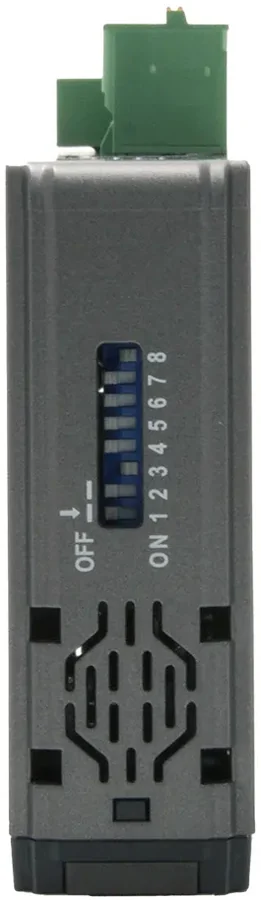

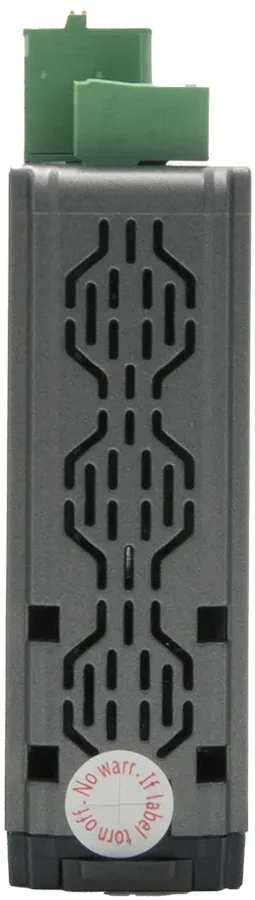

IR-COP
This communication coupler is required when you want a qualifying cMT HMI , or PLC Base ( This communication coupler is required when you want a qualifying cMT HMI , or PLC Base ( cMT-CTRL01 ), to communicate to I/O Expansion Modules via the CANopen protocol . Only one coupler is required for up to 16 I/O expansion modules .
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- CANopen Communication
- Pair with up to 16 I/O Modules (Depending on Power consumption)
- CE, cULus, RoHS
Hoja de datosmaplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Indicators
- L.V (Red)
- Low Voltage Status Indicator
- IO RUN (Green)
- Module Status Indicator
- IO ERR (Red)
- Module Error Indicator
- CAN RUN (Green)
- CANopen Status Indicator
- CAN ERR (Red)
- CANopen Error Indicator
Comunicación
- Cable Length
- 20m 50m 100m 250m 500m 600m 1,000m
- Node ID
- 1~99
- Number of PDOs (CANopen)
- 8 Transmit PDOs / 8 Receive PDOs
- Process Data Operating Modes
- synchronous, event-driven, event timer, polling
- Number of SDOs Available
- 1 Standard SDOs
- Bus Connection
- 1 x open style connector, 5-pole, plug included
- Additional CANopen Features
- Life/node Guarding, heartbeat, emergency object, variables mapping, store/restore, output error mode
- Data Transfer Rate
- 1M 800K 500K 250K 125K 100K 50K
- Connection Cross-section
- 0.5 mm² … 2.5 mm², stranded, solid wire, AWG 26-12
Expansion I/O
- No. of Bus Terminals
- Depends on Power Consumption
- Digital Input Point
- Max. 256
- Digital Output Point
- Max. 128
- Analog Input Channel
- Max. 64
- Analog Output Channel
- Max. 64
Eléctrico
- Power Dissipation
- Nominal 100mA@24VDC
- Current for Internal Bus
- Max 2A@5VDC
- Current Consumption
- 170mA@5VDC
- Power Supply
- 24 VDC (-15%/+20%)
- Back-up Fuse
- ≤ 1.6A Self-recovery
- Electrical Isolation
- Isolated CANopen: Yes; Isolated power: Yes
Mecánico
- Enclosure Material
- Plastic
- PCB Coating
- Yes
- Dimensions WxHxD
- 27 x 109 x 81 mm
- Weight
- Approx. 0.15 kg
- Mounting
- 35mm DIN Rail Mounting
Ambiental
- Operating Temperature
- 0° ~ 55°C (32° ~ 131°F)
- Storage Temperature
- -20° ~ 70°C (-4° ~ 158°F)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- IP Rating
- IP20
- EMC Immunity
- Conforms to EN 55032: 2012+AC: 2013, Class A EN 61000-6-4: 2007+A1:2011 EN 55024: 2010+A1: 2015 EN 61000-6-2:2005
Datos del producto
- Marca
- Maple Systems
- Número de parte
- IR-COP
- Línea
- Couplers
- Categoría
- Redes industriales
- Precio y entrega
- Por cotización
