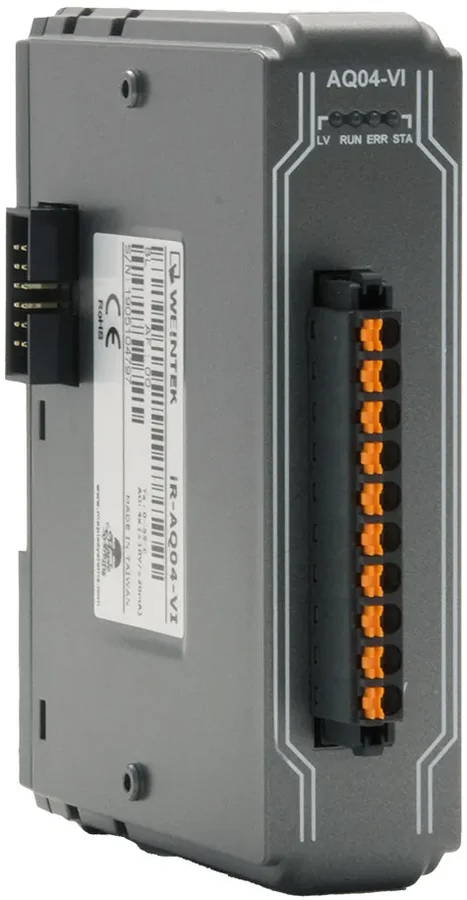

IR-AQ04-VI
Pair this I/O module with the cMT-CTRL01 PLC base, or any qualifying cMT HMI and CommunicaPair this I/O module with the cMT-CTRL01 PLC base, or any qualifying cMT HMI and Communication Coupler combination to implement a control solution that utilizes optional CODESYS programming or our free EasyRemoteIO. Up to 16 modules can be added to create a highly functioning remote I/O block.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 4 Analog Outputs (Voltage, Current)
Hoja de datosmaplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Comunicación
- Connection Cross-section
- AWG 24-16
Analog I/O
- Number of Analog Outputs
- 4 (±10V/ ±20mA)
- Current Consumption
- 65mA@5VDC
- Analog Power Supply
- 24 VDC(20.4 VDC~28.8 VDC)(-15%~+20%)
Analog Output
- Output Impedance
- ≧1kΩ: -10~10V, -5V~5V, 1~5V / ≦500Ω: -20~20mA, 40~20mA
- Data Format
- -10~10V: ±32000 / -5V~5V: ±32000 / 1-5V: 0~32000 / -20~20mA: ±32000 / 4~20mA: 0~32000
- Resolution
- -10~10V: 5mV, 12 bit / -5V~5V: 5mV, 11 bit / 1~5V: 5mV, 10 bit / -20~20mA: 10uA, 12 bit / 4~20mA: 10uA, 11 bit
- Accuracy
- ± 0.2 % Full Scale@25°C / ± 0.3 % Full Scale@0° ~ 55°C
- Conversion Time
- 1.6ms/4 channels ,1.3ms/3 channels, 1ms/2 channels, 700us/1 channel
- Isolation
- 500 VDC：(Analog / Digital)
- Output Range
- -10V~10V、-20mA~20mA
Mecánico
- Enclosure Material
- Plastic
- PCB Coating
- Yes
- Dimensions WxHxD
- 27 x 109 x 81 mm
- Weight
- Approx. 0.12 kg
- Mounting
- 35mm DIN Rail Mounting
Ambiental
- Operating Temperature
- 0° ~ 55°C (32° ~ 131°F)
- Storage Temperature
- -20° ~ 70°C (-4° ~ 158°F)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- IP Rating
- IP20
- CE
- Yes
- UL
- cULus Listed
- RoHS
- Yes
- EMC Immunity
- Conforms to EN 55032: 2012+AC: 2013, Class A EN 61000-6-4: 2007+A1:2011 EN 55024: 2010+A1: 2015 EN 61000-6-2:2005
Datos del producto
- Marca
- Maple Systems
- Número de parte
- IR-AQ04-VI
- Línea
- I/O Modules
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
