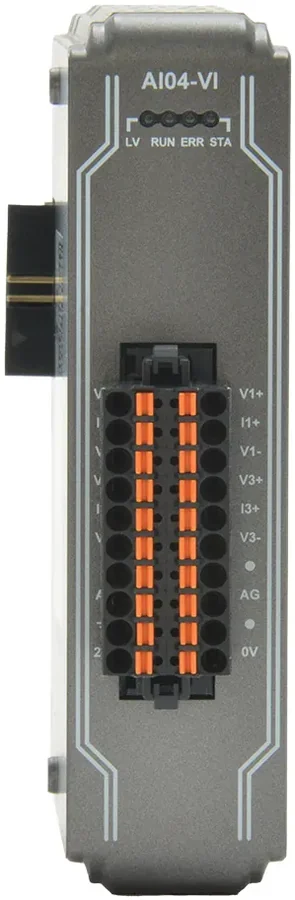

IR-AI04-VI
Pair this iR-AI04-VI Input/Output (I/O) module with the cMT-CTRL01 PLC base, or any qualifPair this iR-AI04-VI Input/Output (I/O) module with the cMT-CTRL01 PLC base, or any qualifying cMT HMI and Communication Coupler combination to implement a control solution that utilizes optional CODESYS programming or our free EasyRemoteIO. Up to 16 modules can be added to create a highly functioning remote I/O block.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 4 Analog Inputs (Voltage/Current)
Hoja de datosmaplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Comunicación
- Connection Cross-section
- AWG 28-16
Analog I/O
- Number of Analog Inputs
- 4 (±10V/ ±20mA)
- Current Consumption
- 70mA@5VDC
- Analog Power Supply
- 24 VDC(20.4 VDC~28.8 VDC)(-15%~+20%)
Analog Input
- Input Range
- -10V~10V, -20mA~20mA
- Conversion Time
- 2ms/Channel
- Isolation
- 500 VDC: (Analog / Digital)
- Data Format
- -10~10V: ±32000 / -5V~5V: ±32000 / 1~5V: 0~32000 / -20~20mA: ±32000 / 4~20mA: 0~32000
- Resolution
- -10~10V: 0.312mV, 16 bit / -5V~5V: 0.156 mV, 16 bit / 1~5V: 0.156mV, 15 bit / -20~20mA: 0.625uA, 16 bit / 4~20mA: 0.625uA, 15 bit
- Input Impedance
- 1MΩ:-10~10V, -5V~5V, 1~5V / 250 Ω: -20~20mA, 4~20mA
- Diagnose
- Supply Voltage; Wire break (1~5V & 4~20mA); Overflow/underflow
- Accuracy
- ± 0.2 % Full Scale@25°C; ± 0.3 % Full Scale@0° ~ 55°C
Mecánico
- Enclosure Material
- Plastic
- PCB Coating
- Yes
- Dimensions WxHxD
- 27 x 109 x 81 mm
- Weight
- Approx. 0.12 kg
- Mounting
- 35mm DIN Rail Mounting
Ambiental
- Operating Temperature
- 0° ~ 55°C (32° ~ 131°F)
- Storage Temperature
- -20° ~ 70°C (-4° ~ 158°F)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- IP Rating
- IP20
- CE
- Yes
- UL
- cULus Listed
- RoHS
- Yes
- EMC Immunity
- Conforms to EN 55032: 2012+AC: 2013, Class A EN 61000-6-4: 2007+A1:2011 EN 55024: 2010+A1: 2015 EN 61000-6-2:2005
Datos del producto
- Marca
- Maple Systems
- Número de parte
- IR-AI04-VI
- Línea
- I/O Modules
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
