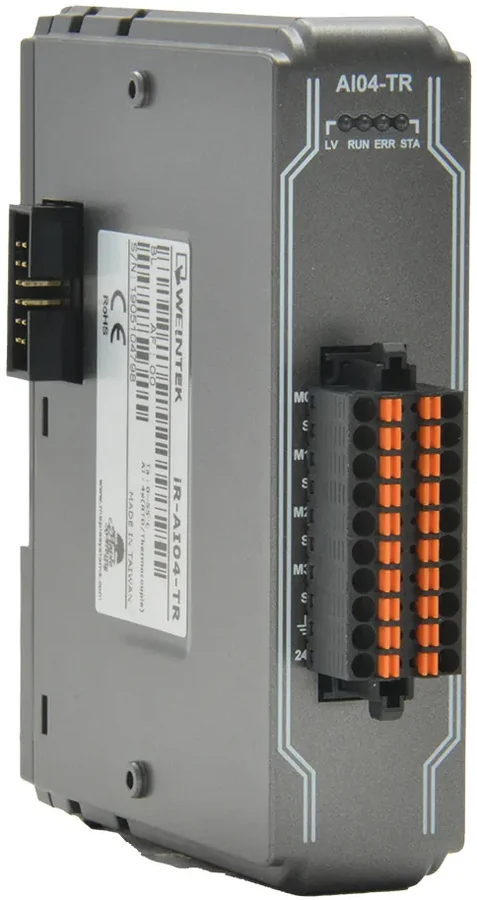

IR-AI04-TR
Pair this I/O module with the cMT-CTRL01 PLC base, or any qualifying cMT HMI and CommunicaPair this I/O module with the cMT-CTRL01 PLC base, or any qualifying cMT HMI and Communication Coupler combination to implement a control solution that utilizes optional CODESYS programming or our free EasyRemoteIO. Up to 16 modules can be added to create a highly functioning remote I/O block.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 4 Temperature Inputs (RTD/Thermocouple)
Hoja de datosmaplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Functional
- Thermocouple Temperature Input Range (IEC 60584)
- J: -210 °C – 1200 °C, K: -270 °C – 1370 °C, R: -50 °C – 1760 °C, S: -50 °C – 1760 °C, T: -270 °C – 400 °C, E: -200 °C – 1000 °C, N: -270 °C – 1300 °C, B: 200 °C – 1820 °C, C: 0 °C – 2320 °C
- Thermocouple Temperature Input Range (DIN 43714)
- L: 0 °C – 900 °C, U: -200 °C – 600 °C
- Thermocouple Temperature Input Range (P8.585.2001)
- TXK/XK(L): -200 °C – -800 °C, TBP / BP(A)–1: TBP / BP(A)–1, TBP / BP(A)–2: 0-1800, TBP / BP(A)–3: 0-1800, M: -200-100
- RTD Temperature Input Range (α: 0.00385)
- Pt100, Pt200, Pt500, Pt1000: -200°C ~850°C
- RTD Temperature Range (α: 0.00392)
- Pt100, Pt1000: -200°C ~850°C
- RTD Temperature Range (JIS C 1609)
- jPt100: -200°C ~600°C
- RTD Temperature Range (Nickle Type)
- LG-Ni1000: -60~250, Ni100 & Ni1000 α 0.00617: -100~180, Ni120 α 0.00672: -80~260°C
- Resistance
- 0-5000Ω (0-30000), 200ms/Channel, 0.167Ω / 0-500Ω (0-30000), 200ms/Channel, 0.0167Ω
- Isolation (Analog/Digital)
- 500 VDC
- Diagnose
- Supply Voltage, Wire break, Overflow/underflow
Comunicación
- Connection Cross-section
- AWG 28-16
Analog I/O
- Thermocouple Conversion Time
- 100ms/channel
- Thermocouple Resolution
- 0.1°C/0.1°F
- Thermocouple Accuracy
- ± [0.4 % Full Scale + 3°C] At 25°C / ± [0.6 % Full Scale + 3°C] At 0° ~ 55°C
- RTD Conversion Time
- 200ms/channel
- RTD Accuracy
- ± 0.2 % Full Scale At 25°C / ± 0.3 % Full Scale At 0° ~ 55°C
- RTD Resolution
- 0.1°C/0.1°F
- Number of Analog Inputs
- 4 (RTD/Thermocouple)
- Current Consumption
- 65mA@5VDC
- Analog Power Supply
- 24 VDC(20.4 VDC~28.8 VDC)(-15%~+20%)
Mecánico
- Enclosure Material
- Plastic
- PCB Coating
- Yes
- Dimensions WxHxD
- 27 x 109 x 81 mm
- Weight
- Approx. 0.12 kg
- Mounting
- 35mm DIN Rail Mounting
Ambiental
- Operating Temperature
- 0° ~ 55°C (32° ~ 131°F)
- Storage Temperature
- -20° ~ 70°C (-4° ~ 158°F)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- IP Rating
- IP20
- CE
- Yes
- UL
- cULus Listed
- RoHS
- Yes
- EMC Immunity
- Conforms to EN 55032: 2012+AC: 2013, Class A EN 61000-6-4: 2007+A1:2011 EN 55024: 2010+A1: 2015 EN 61000-6-2:2005
Datos del producto
- Marca
- Maple Systems
- Número de parte
- IR-AI04-TR
- Línea
- I/O Modules
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
