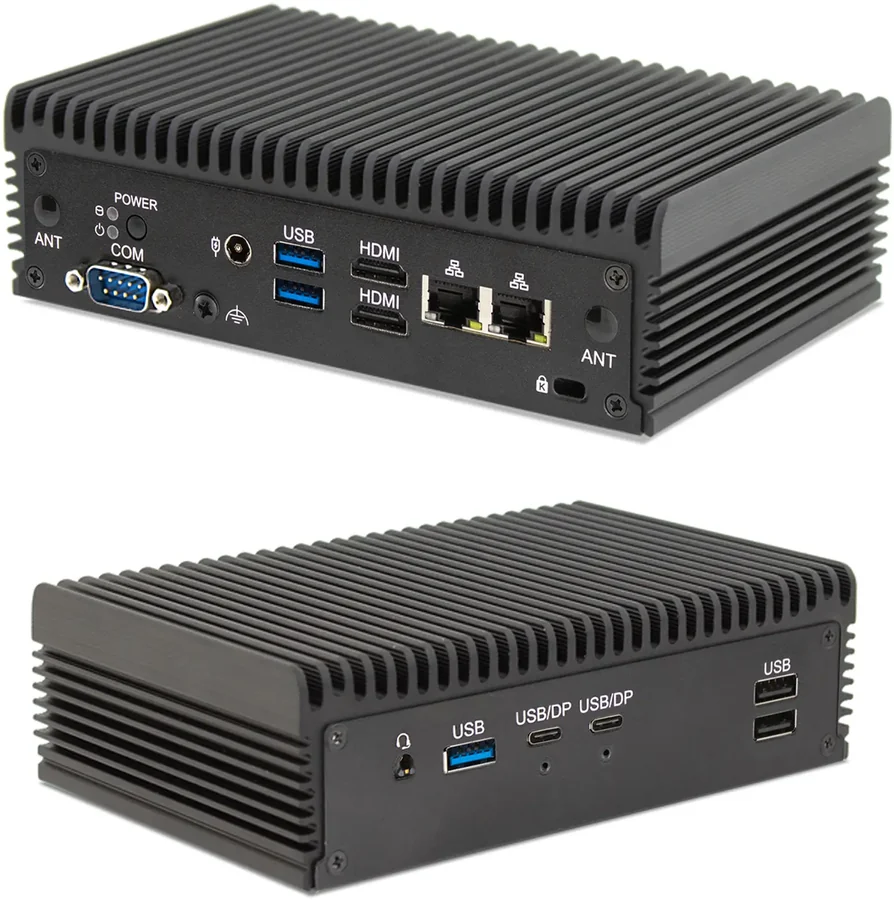

IPC2790A
The rugged, heavy duty IPC2790A has a powerful Intel® Core™ Ultra processor (Meteor Lake-UThe rugged, heavy duty IPC2790A has a powerful Intel® Core™ Ultra processor (Meteor Lake-U) (Ultra 5 125U, 2P+8E), up to 64 GB RAM , extended operating temperature ( -20~50°C ), and supports high-definition resolution displays. Built in Neuro-Processing Unit , boosting AI performance to 11 Trillion Operations Per Second.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Intel® Core™ Ultra processors (Meteor Lake-U) (Ultra 5 125U, 2P+8E) – vPro Supported
- Built-in NPU with Intel ® AI Boost, supporting up to 11 TOPS
- Quad-Display UHD 4K Resolution Output, Intel ® Arc Graphics
- Microsoft Windows ® 10 IoT, Windows ® 11 IoT, Linux Ubuntu OS
- Options Optional Wi-Fi Kit with Bluetooth 5.2 support
- Wall Mounting Kit Included
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® Core™ Ultra Processors (Meteor Lake-U) (Ultra 5 125U, 2P+8E) Learn More CPU: Intel® Core™ Ultra Processors (Meteor Lake-U) (Ultra 5 125U, 2P+8E) Hybrid Architecture for Efficient Performance, Built-in AI Acceleration, Built-in Intel Arc Graphics, Improved Power Efficiency for Edge Deployment, Advanced media and I/O Capabilities
- Memory (RAM)
- 2 x DDR5 262-pin SO-DIMM RAM (8, 16, 32, 64 GB)
- System Chipset
- MCP: Intel Meteor Lake-U (Core Ultra Series 1)
- Solid State Drive Type
- NVME
- Solid State Drive Capacity
- 128, 256, 512 GB, 1TB, 2TB SSD
- CPU Graphics
- Intel® Arc™ Graphics Learn More CPU Graphics: Intel® Arc™ Graphics Intel® Arc™ Graphics is the integrated GPU within the Intel® Core™ Ultra 5 processor. It provides advanced graphics performance and supports AI, media processing, and visualization workloads without requiring a discrete graphics card.
- TPM Module
- Yes (TPM 2.0)
Storage
- Solid State Drive
- 1 x M.2 NVME, 3D TLC (128, 256, 512 GB, 1TB, 2TB SSD)

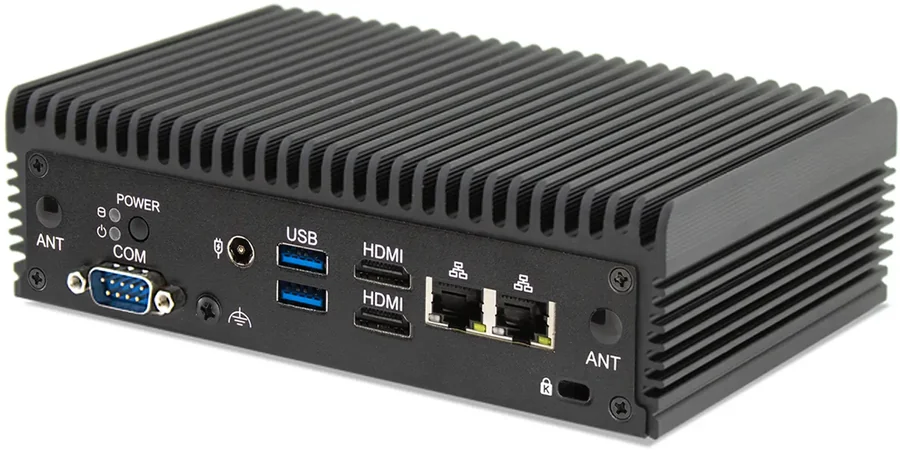

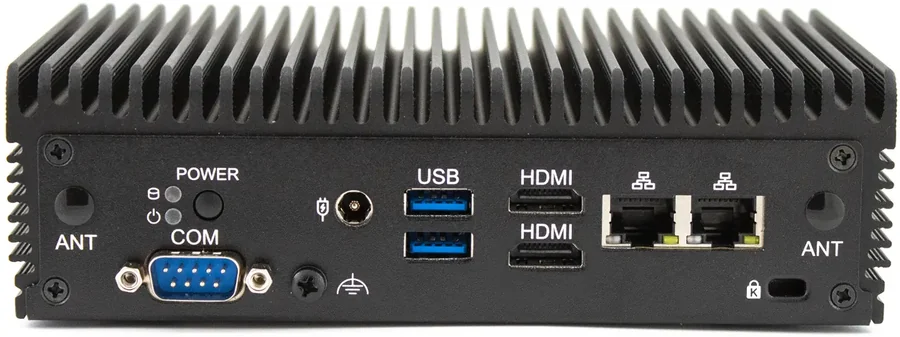

Front I/O
- Wireless LAN
- 2x Wireless LAN Antenna ports (covered unless optional Wi-Fi Expansion kit purchased)
- Ethernet/LAN
- LAN 1: 1 x 2.5 GbE RJ-45 (Supports vPro) Learn More Ethernet/LAN: LAN 1: 1 x 2.5 GbE RJ-45 (Supports vPro) The Intel vPro Platform provides powerful remote manageability, allowing IT teams to fix and update devices even when they are powered off or unresponsive. / LAN 2 : 1 x 2.5 GbE RJ-45
- Power
- 1 x DC Jack Input Connector
- Power Switch
- 1 x Momentary Pushbutton
- Serial
- 1 x RS-232/422/485 DE-9P: COM1
- Display Interface
- 2 x HDMI 2.1 TMDS (max. 4096 x 2160 pixels @60Hz),
- USB
- 2 x USB 3.2 Gen 2 type A
Rear I/O
- USB 3.2 Gen 2 Type A
- 1
- USB 3.2 Gen 2 Type C
- 1 (Supports DisplayPort 1.4a display output)
- Audio Output
- 1 x 3.5 mm Headset Jack
- USB 2.0 Type A
- 2
- USB4/Thunderbolt™ 4 (5V/3A, Supports DP 2.1 display output)
- 1 Learn More USB4/Thunderbolt™ 4 (5V/3A, Supports DP 2.1 display output): 1 Provides ultra-fast data transfer, enabling quick connection to high performance peripherals and storage devices. Combines data, video, and power delivery over a single cable, simplifying installation and reducing cable clutter.
Expansion I/O
- Expansion Option
- Optional Wi-Fi kit (IEEE802.11ax card and 2 x antenna, Bluetooth 5.2 Support
Eléctrico
- Input Power
- 90 W Max
- Input Voltage
- 12~24 VDC +/- 10%
- Input Current
- 7.5 A Max.
Mecánico
- Dimensions WxHxD
- 6.76 x 4.31 x 1.97 inches [171.8 x 109.5 x 50.1 mm]
- Weight
- Approx. 3.5 lbs. [1.6 kg]
- Mounting
- Wall Mount Kit Included/VESA Mount Optional
- Construction
- Black Aluminum Heatsink and Chassis
Ambiental
- Operating Temperature
- -4° ~ 122°F (-20° ~ 50°C)
- Storage Temperature
- -40°F~185°F (-40°C~85°C)
- Storage Humidity
- 5 to 90%, non-condensing
Certificaciones
- IP Rating
- IP30
- CE
- Yes
- RoHS
- Yes
- FCC
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- IPC2790A
- Línea
- Industrial Box PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
