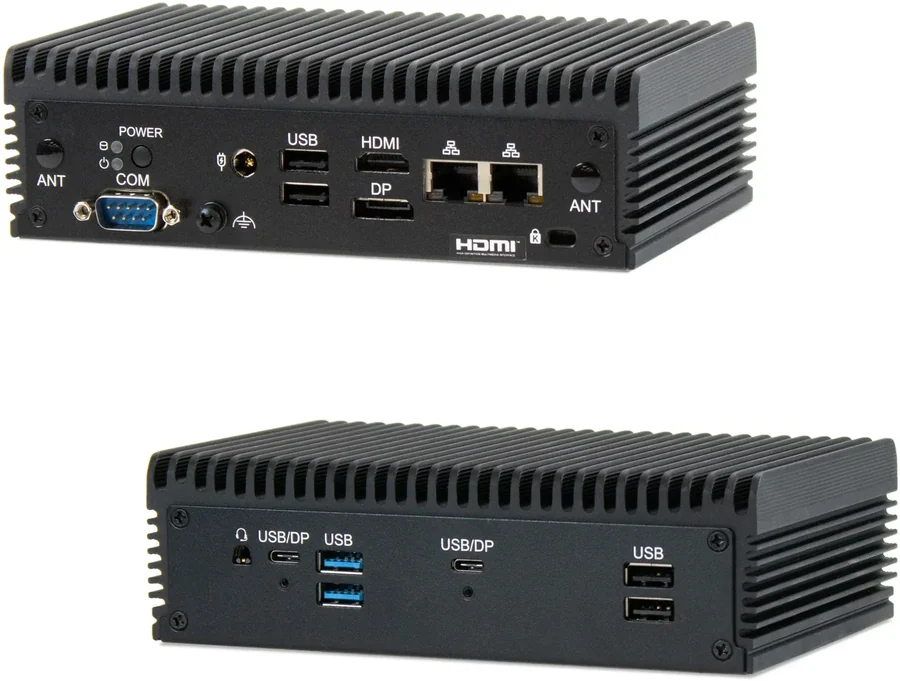

IPC2710A
The IPC2710A delivers reliable industrial performance with an AMD ® Ryzen ® Embedded V2516The IPC2710A delivers reliable industrial performance with an AMD ® Ryzen ® Embedded V2516 Hexa-Core processor, up to 64 GB RAM , and 2 TB of SSD storage. Its rugged design and -20°~50°C operating temperature range make it ideal for demanding environments. Available with Windows ® or Linux ® , it supports high definition displays and 3rd party SCADA software like AVEVA ® , SIMATIC WinCC, Ignition, FactoryTalk ® .
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- AMD ® Ryzen ® Embedded V2516 @ 2.1 GHz ( Hexa-Core )
- Quad-Display UHD 4K Resolution Output
- Microsoft Windows ® 10 IoT, Windows ® 11 IoT, Linux Ubuntu OS
- Optional Wi-Fi Kit with Bluetooth 5.2 support
- VESA Mounting Kit Included
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- AMD® Ryzen® Embedded V2516 @ 2.1 GHz (Hexa-Core)
- Memory (RAM)
- 2 x DDR4 260-pin SO-DIMM RAM (8, 16, 32, 64 GB)
- System Chipset
- SoC
- Solid State Drive Type
- SATA 3
- Solid State Drive Capacity
- 64, 128, 256, 512 GB, 1TB, 2TB SSD
- CPU Graphics
- AMD® Radeon™ Graphics
- TPM Module
- Yes (TPM 2.0)
Storage
- Solid State Drive
- 1 x M.2 SATA 3, 3D TLC (64, 128, 256, 512 GB, 1TB, 2TB SSD)
Front I/O
- Wireless LAN
- 2x Wireless LAN Antenna ports (covered unless optional Wi-Fi Expansion kit purchased)
- Ethernet/LAN
- 1 x GbE RJ-45, 1 x 2.5 GbE RJ-45
- Power
- 1 x DC Power Input
- USB 2.0 Type A
- 2
- Power Switch
- 1 x Momentary Pushbutton
- Serial
- 1 x RS-232 DE-9P: COM1
- Display Interface
- 1 x HDMI 2.0a (max. 4096 x 2160 pixels @60Hz), 1 x DisplayPort 1.2a (max. 4096 x 2160 pixels @60Hz)

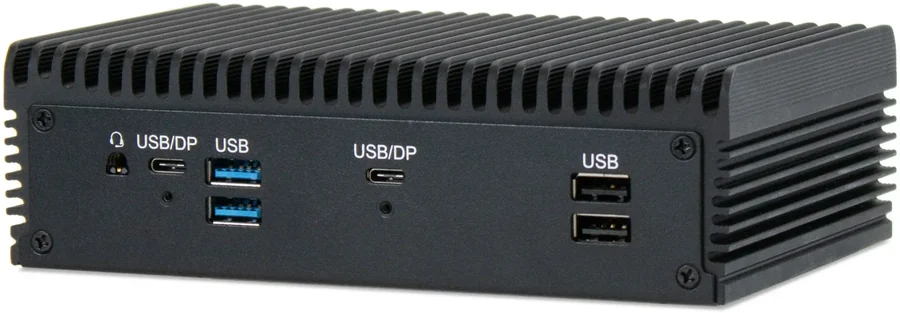

Rear I/O
- USB 3.2 Gen 2 Type A
- 2
- USB 3.2 Gen 2 Type C
- 2 (Supports DisplayPort 1.2a display output)
- Audio Output
- 1 x 3.5 mm Headset Jack
- USB 2.0 Type A
- 2
Expansion I/O
- Expansion Option
- Optional Wi-Fi kit (IEEE802.11ax card and 2 x antenna, Bluetooth 5.2 Support
Eléctrico
- Input Power
- 90 W Max
- Input Voltage
- 12-19 VDC +/- 10%
- Input Current
- 7.5 A Max.
Mecánico
- Dimensions WxHxD

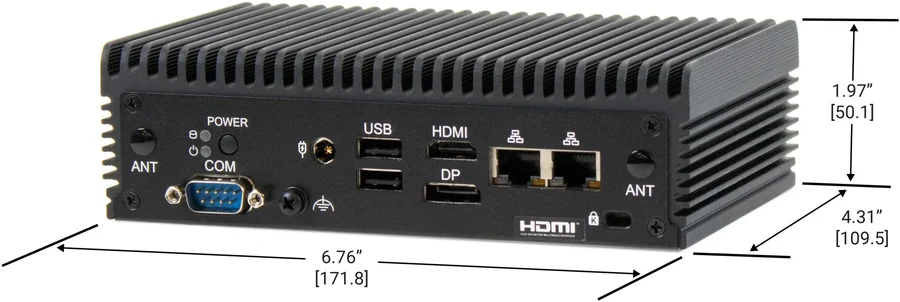

- 6.76 x 4.31 x 1.97 inches [171.8 x 109.5 x 50.1 mm]
- Weight
- Approx. 3.5 lbs. [1.6 kg]
- Mounting
- VESA Mounting Kit Included/Wall Mount Optional
- Construction
- Black Aluminum Heatsink and Chassis
Ambiental
- Operating Temperature
- -4° ~ 122°F (-20° ~ 50°C)
- Storage Temperature
- -40°F~185°F (-40°C~85°C)
- Storage Humidity
- 5 to 90%, non-condensing
Certificaciones
- IP Rating
- IP30
- CE
- Yes
- RoHS
- Yes
- FCC
- Class A
Datos del producto
- Marca
- Maple Systems
- Número de parte
- IPC2710A
- Línea
- Industrial Box PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
