IPC2610A
This compact, UL listed , wide-operating temperature ( -40~70°C ) industrial IPC2610A is rThis compact, UL listed , wide-operating temperature ( -40~70°C ) industrial IPC2610A is ruggedly built, making it ideal for outdoor applications. With a Windows® Operating System, this PC supports 3rd party SCADA software like AVEVA ®, Ignition, SIMATIC WinCC, or FactoryTalk®. Pair with one of our Industrial Monitors
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Intel® Quad-Core Atom® x7-E3950 1.6GHz CPU
- cULus Listed
- Windows 10® Available
- Extended Operating Temp (-40~70°C)
- Wi-Fi/Bluetooth 5.2 upgrade available
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® Quad-Core Atom® x7-E3950 @ 1.6 GHz
- Memory (RAM)
- 1 x DDR3L 204-pin SO-DIMM RAM (4, 8 GB)
- System Chipset
- SoC
- Solid State Drive Type
- mSATA
- Solid State Drive Capacity
- 128, 256, 512 GB, 1TB SSD
- CPU Graphics
- Intel® UHD Graphics
- TPM Module
- Yes (TPM 2.0)
Storage
- Solid State Drive
- 1 x mSATA 3D TLC (128, 256, 512 GB, 1TB SSD)
Front I/O
- Ethernet/LAN
- 2 x GbE RJ-45
- Power
- 1 x 3-Pin Terminal Block Connector
- USB 3.0 Type A
- 4
- Power Switch
- 1 x Momentary Pushbutton
- Display Interface
- 1 x DisplayPort (max. 4096 x 2160 pixels @60Hz); 1 x DVI-I Port (max. 2560 x 1600 pixels @60Hz)
Side I/O
- Wireless LAN
- 2x Wireless LAN Antenna ports (covered unless optional Wi-Fi Expansion kit purchased)
- Audio
- 1 x 3.5 mm Line-out
- Serial
- 2 x RS-232/422/485 DE-9P: COM1, COM2 (default RS-232)
Expansion I/O
- Expansion Option
- Optional Wi-Fi kit (IEEE802.11ax card and 2 x antenna, Bluetooth 5.2 Support
Eléctrico
- Input Power
- 43.2 W Max
- Input Voltage
- 9~36 VDC +/- 10%
- Input Current
- 4.8 A Max
Mecánico

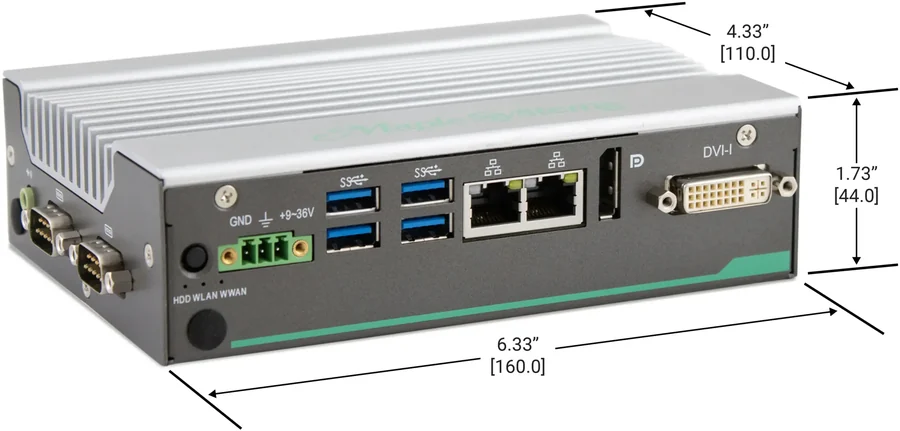

- Dimensions WxHxD
- 6.30 x 4.33 x 1.73 inches [160 x 110 x 44 mm]
- Weight
- Approx. 2.2 lbs. [1.0 kg]
- Mounting

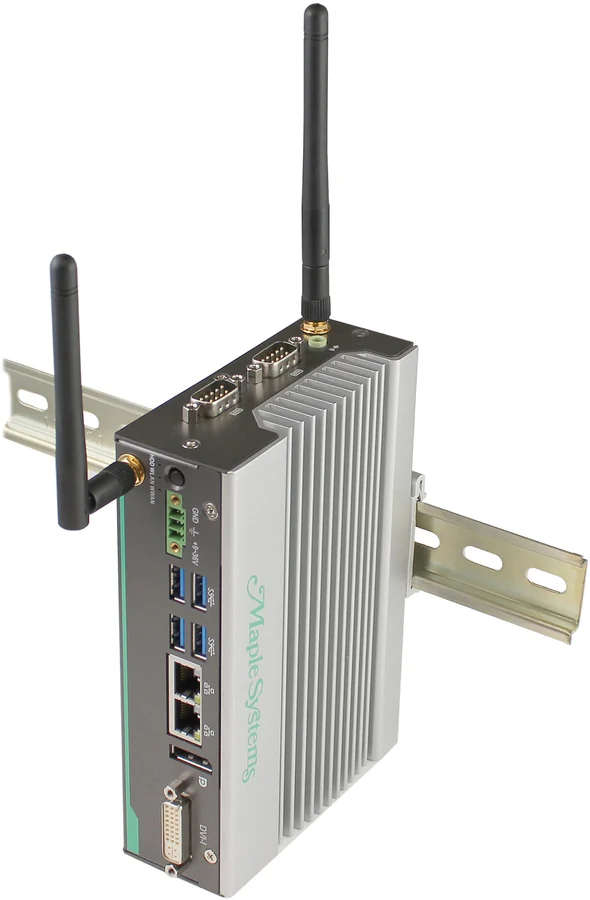

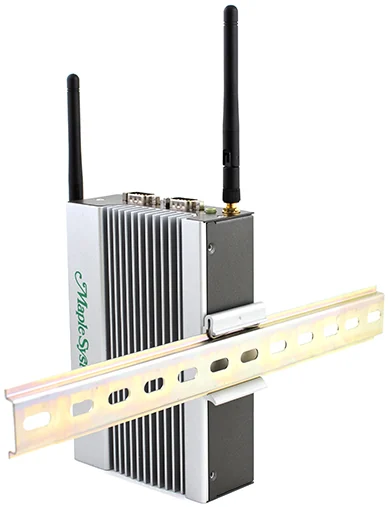

- Wall Mounting Kit Included; DIN-Rail Mounting Kit Included
- Construction
- Silver Anodized Aluminum Heatsink, Grey Steel Chassis
Ambiental
- Shock Resistance
- Operating: 30G, 11ms duration (per MIL-STD-810G); Non-Operating: 40G, 11ms duration (per MIL-STD-810G)
- Vibration Resistance
- Operating: 2.0 Grms, 5~500Hz, random operation (per IEC 60068-2-64); Non-Operating: 3.0 Grms, 5~500Hz, random operation (per IEC 60068-2-64)
- Operating Temperature
- -40~158°F [-40~70°C]
- Storage Temperature
- -40°F~185°F (-40°C~85°C)
- Storage Humidity
- 5 to 90% @45°C, non-condensing
Certificaciones
- IP Rating
- IP54
- CE
- Yes
- UL
- Yes
- RoHS
- Yes
- FCC
- Class B
Datos del producto
- Marca
- Maple Systems
- Número de parte
- IPC2610A
- Línea
- Extended Temp. PCs · Industrial Box PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
