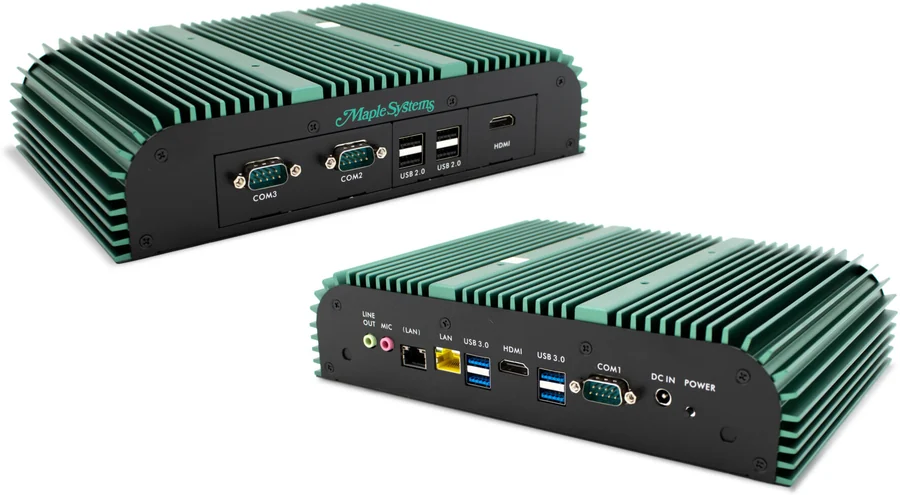

IPC2550C
The rugged, heavy duty IPC2550C has options for either a 12th GEN Hexa-Core i3 CPU, Deca-CThe rugged, heavy duty IPC2550C has options for either a 12th GEN Hexa-Core i3 CPU, Deca-Core i5 CPU, Deca-Core i7 CPU up to 64 GB RAM , extended operating temperature ( -20~60°C ), supports high-definition resolution displays, and rugged construction. With a Windows ® or Linux ® Operating System, this IPC supports 3rd party and SCADA software like FactoryTalk ® , SIMATIC WinCC, Ignition, or AVEVA ® .
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Hexa-Core i3 Processor, Deca-Core i5/i7 Processor
- 4K Ultra High Definition Resolution Supported
- Up to 64GB DDR5 SO-DIMM RAM
- Extended Operating Temperature (-20~60C)
- Steel Chassis, Aluminum Heatsink
- Wi-Fi with Bluetooth 5.2 Support upgrade available
- Wall, VESA, or DIN Rail Mounting Capabilities
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® Hexa Core™ i3-1215UE @ 4.4GHz / Intel® Deca Core™ i5-1245UE @ 4.4GHz (Supports vPro) / Intel® Deca-Core™ i7-1256UE @ 4.7GHz (Supports vPro)
- Memory (RAM)
- 2 x DDR5 262-pin SO-DIMM RAM (8, 16, 32, 64 GB)
- System Chipset
- SoC
- Solid State Drive Type
- NVME
- Solid State Drive Capacity
- 128, 256, 512 GB, 1TB, 2TB SSD
- CPU Graphics
- i3 CPU: Intel UHD Graphics / i5 CPU: Intel Iris Xe Graphics / i7 CPU: Intel Iris Xe Graphics
- TPM Module
- Yes (TPM 2.0)
Storage
- Solid State Drive
- 1 x M.2 NVME, 3D TLC (128, 256, 512 GB, 1TB, 2TB SSD)
Front I/O
- HDMI Port
- 1 x HDMI® 2.0b port (max. 4096 x 2160 pixels @60Hz)
- USB 2.0 Type A
- 4
- Serial
- 2 x RS-232/422/485 DE-9P, COM2/COM3 (default RS-232)
Rear I/O
- Power Switch
- 1 x Momentary Pushbutton
- Serial
- 1 x RS-232 DE-9P, COM1
- Wireless LAN
- 2 x Wireless LAN Antenna ports (Covered Unless Optional Wi-Fi Expansion Kit Purchased)
- Ethernet/LAN
- 2 x GbE RJ-45
- Audio Output
- 1 x 3.5 mm Headphone-out; 1 x 3.5 mm Mic-in
- Display Output
- 1 x HDMI® 2.0b port (max. 4096 x 2160 pixels @60Hz)
- Power
- 1 x DC Power Input
- USB 3.0 Type A
- 4
Expansion I/O
- Expansion Option
- Optional Wi-Fi kit (IEEE802.11ax card and 2 x antenna, Bluetooth 5.2 Support
Eléctrico
- Input Power
- 90 W Max
- Input Voltage
- 9~36 VDC
- Input Current
- 10 A Max
Mecánico
- Dimensions WxHxD

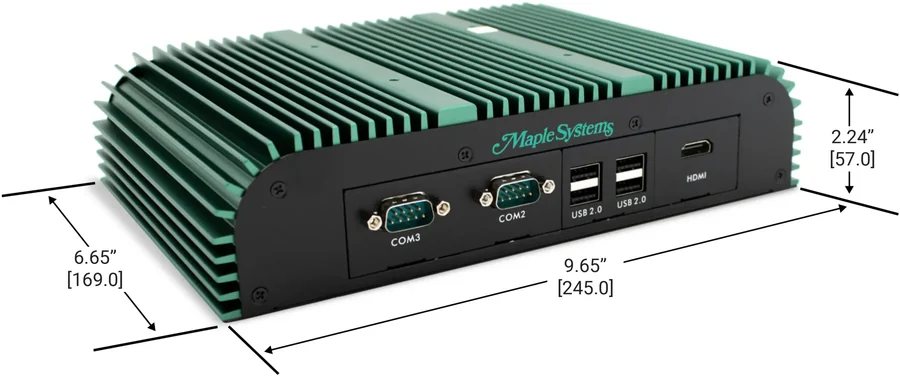

- 9.65 x 6.65 x 2.24 inches [245 x 169 x 57 mm]
- Weight
- Approx. 6.28 lbs. [2.85 kg]
- Mounting

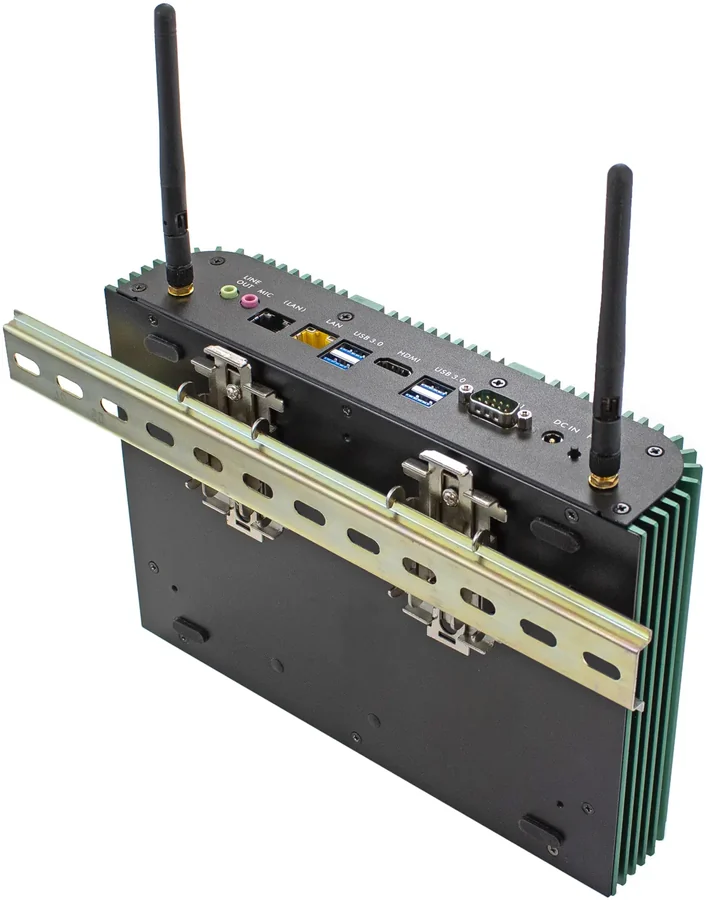

- 35 mm DIN Rail / Wall, VESA 75×75, 35mm DIN-Rail (mounting hardware not included)
- Construction
- Green Anodized Aluminum Heatsink, Black Steel Chassis
Ambiental
- Operating Temperature
- -4~140°F [-20~60°C]
- Storage Temperature
- -40°F~185°F (-40°C~85°C)
- Storage Humidity
- 0 to 90%, non-condensing
Certificaciones
- IP Rating
- IP30
- CE
- Yes
- RoHS
- Yes
- FCC
- Class A
Datos del producto
- Marca
- Maple Systems
- Número de parte
- IPC2550C
- Línea
- Industrial Box PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
