IPC2410B
This fanless, wide-operating temperature ( -40~60°C ), IPC2410B is ruggedly built, making This fanless, wide-operating temperature ( -40~60°C ), IPC2410B is ruggedly built, making it ideal for outdoor applications. With Windows® or Linux® Operating System, this PC supports 3rd party and SCADA software like FactoryTalk®, SIMATIC WinCC, Ignition, and AVEVA® . Optional 4G Module allowing for 4G/LTE Data Network Usage . VESA or Wall mounting capabilities. Pair with one of our Industrial Monitors
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Intel® Quad-Core Atom® x6425E 2.0 GHz CPU
- Windows 10®, Windows 11® and Linux Ubuntu OS Available
- Extended Operating Temp (-40C~60C)
- Wi-Fi upgrade available with Bluetooth
- 4G Module upgrade available for 4G/LTE Data Network Usage
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® Quad-Core Atom® x6425E @ 2.0 GHz
- Memory (RAM)
- 1 x DDR4 260-pin SO-DIMM RAM (4, 8, 16, 32 GB)
- System Chipset
- SoC
- Solid State Drive Type
- NVME
- Solid State Drive Capacity
- 128, 256, 512 GB, 1TB SSD
- CPU Graphics
- Intel® UHD Graphics
- TPM Module
- Yes (TPM 2.0)
Storage
- Solid State Drive
- 1 x M.2 NVME, 3D TLC (128, 256, 512 GB, 1TB SSD)

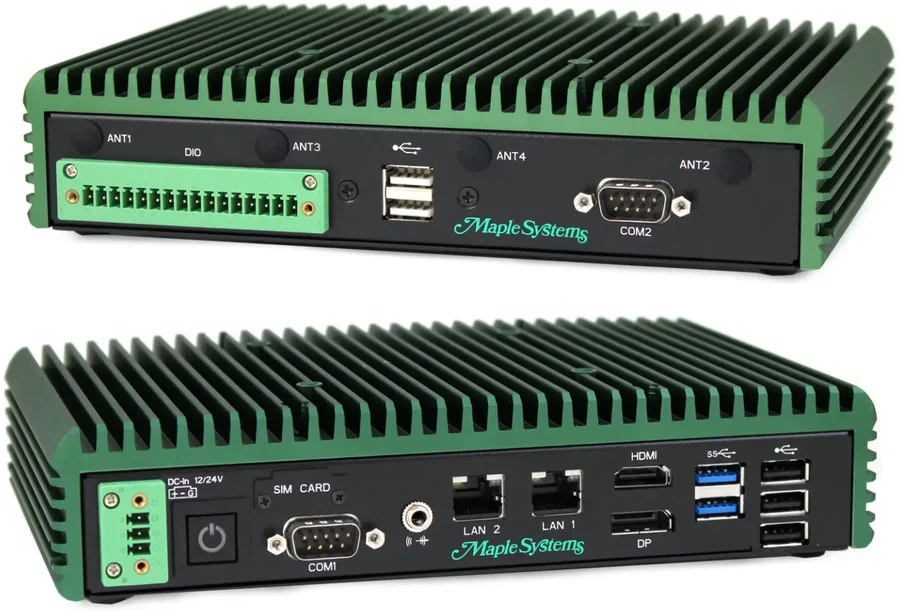

Front I/O
- Ethernet/LAN
- 2 x 2.5GbE RJ-45
- Audio Output
- 1 x 3.5 mm Line-out
- Power
- 1 x 3-Pin Terminal Block Connector
- USB 2.0 Type A
- 3
- USB 3.0 Type A
- 2
- Power Switch
- 1 x Momentary-Type Toggle Switch
- Serial
- 1 x RS-232/422/485 DE-9P: COM1 (default RS-232)
- Display Interface
- 1 x HDMI 2.0a (max. 4096 x 2160 pixels @60Hz), 1 x DisplayPort 1.2a (max. 4096 x 2160 pixels @60Hz)
- SIM Card Slot
- 1 x Micro-SIM Card slot (covered unless optional 4G/LTE Module is purchased)

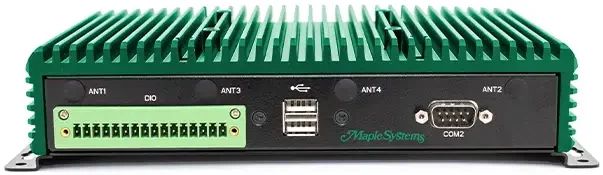

Rear I/O
- Serial
- 1 x RS-232/422/485 DE-9P: COM2 (default RS-232)
- Wireless LAN
- 2 x Wireless LAN Antenna ports (Covered Unless Optional Wi-Fi Expansion Kit Purchased)
- Digital I/O
- 1 x 16-pin Terminal Block connector (8-in, 8-out)
- USB 2.0 Type A
- 2
Expansion I/O
- Expansion Option
- Optional Wi-Fi kit (IEEE802.11ax card and 2 x antenna, Bluetooth 5.2 Support
Eléctrico
- Input Power
- 72 W Max
- Input Voltage
- 12 or 24 VDC +/-10%
- Input Current
- 6 A Max
Mecánico

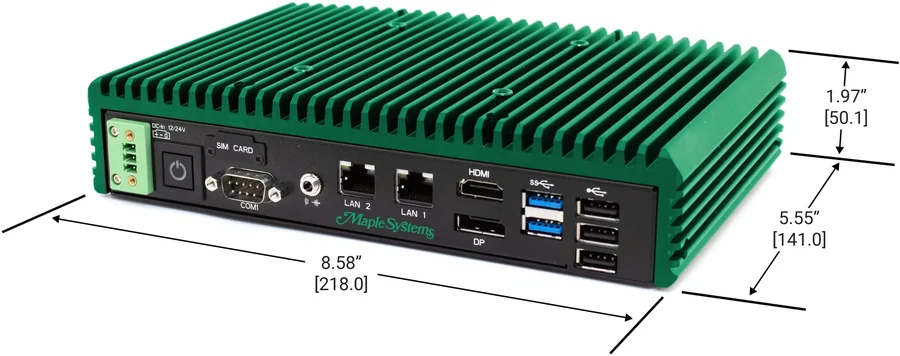

- Dimensions WxHxD
- 8.58 x 5.55 x 1.97 inches [218 x 141 x 50 mm]
- Weight
- ~ 4.4 lbs. [2.0 kg]
- Mounting
- VESA 75 x 75 mm; Wall Mounting Kit Included
- Construction
- Green Anodized Aluminum Heatsink, Black Steel Chassis
Ambiental
- Operating Temperature
- -40~140°F [-40~60°C]
- Storage Temperature
- -40°F~185°F (-40°C~85°C)
- Storage Humidity
- 20 to 90%, non-condensing
Certificaciones
- IP Rating
- IP30
- CE
- Yes
- RoHS
- Yes
- FCC
- Class A
Datos del producto
- Marca
- Maple Systems
- Número de parte
- IPC2410B
- Línea
- Industrial Box PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
