IPC2360A
The rugged , heavy duty IPC2360A industrial computer, powered by Intel ® Quad, Deca, or 20The rugged , heavy duty IPC2360A industrial computer, powered by Intel ® Quad, Deca, or 20 Core ™ processors, with flexible expansion capabilities, up to 64 GB RAM , extended operating temperature of -4° – 140°F, and support for 4K Ultra High Definition displays, is designed for applications such as machine vision , automated optical inspection, automation control, measurement, robotic monitoring/control, IIoT and…
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Intel® Quad, Deca, or 20 Core – 14th Gen. i-Core™ Processors
- 4K UHD Resolution Output Supported
- RAID 0 and RAID 1 Support (Contact Sales for details)
- Microsoft Windows ® 10 IoT, Windows ® 11 IoT, Linux Ubuntu OS
- Optional Wi-Fi Kit with Bluetooth 5.2 support
- Wall Mounting
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® Quad Core™ i3-14100T @ 4.4GHz / Intel® Deca Core™ i5-14400T @ 4.5GHz / Intel® Icosa (20) Core™ i7-14700T @ 5.2GHz (Supports vPro)
- Memory (RAM)
- 2 x DDR5 262-pin SO-DIMM RAM (8, 16, 32, 64 GB)
- System Chipset
- SoC: Intel® Q670E
- Solid State Drive Type
- NVME
- Solid State Drive Capacity
- 128, 256, 512 GB, 1TB, 2TB SSD
- CPU Graphics
- Intel® HD Graphics
- TPM Module
- Yes (TPM 2.0)
Storage
- Solid State Drive
- 1 x M.2 NVME, 3D TLC (128, 256, 512 GB, 1TB, 2TB SSD) / RAID 0 and RAID 1 Options Available Learn More Solid State Drive: RAID 0 and RAID 1 Options Available Additional RAID 0 and RAID 1 SSD options available. Contact [email protected] for more details.
Front I/O
- Wireless LAN
- 6x Wireless LAN Antenna ports (covered unless optional Wi-Fi Expansion kit purchased)
- Ethernet/LAN
- LAN 1: 1 x 2.5 GbE RJ-45 (Supports vPro) Learn More Ethernet/LAN: LAN 1: 1 x 2.5 GbE RJ-45 (Supports vPro) The Intel vPro Platform provides powerful remote manageability, allowing IT teams to fix and update devices even when they are powered off or unresponsive. / LAN 2 : 1 x 2.5 GbE RJ-45
- Audio Output
- 1 x 3.5 mm Mic-in / 1 x 3.5 mm Line-out
- Power
- 1 x 3-Pin Terminal Block Connector
- Power Switch
- 1 x Momentary Pushbutton
- Serial
- 4 x RS-232/422/485 DE-9P, COM1, COM2, COM3, COM4
- Display Interface
- 1 x HDMI® 2.0A port (max. 4096 x 2160 pixels) / 1 x DisplayPort 1.4A (max. 7680 x 4320 pixels)
- USB 3.2 Gen 1 Type A
- 4
Expansion I/O
- Expansion Option

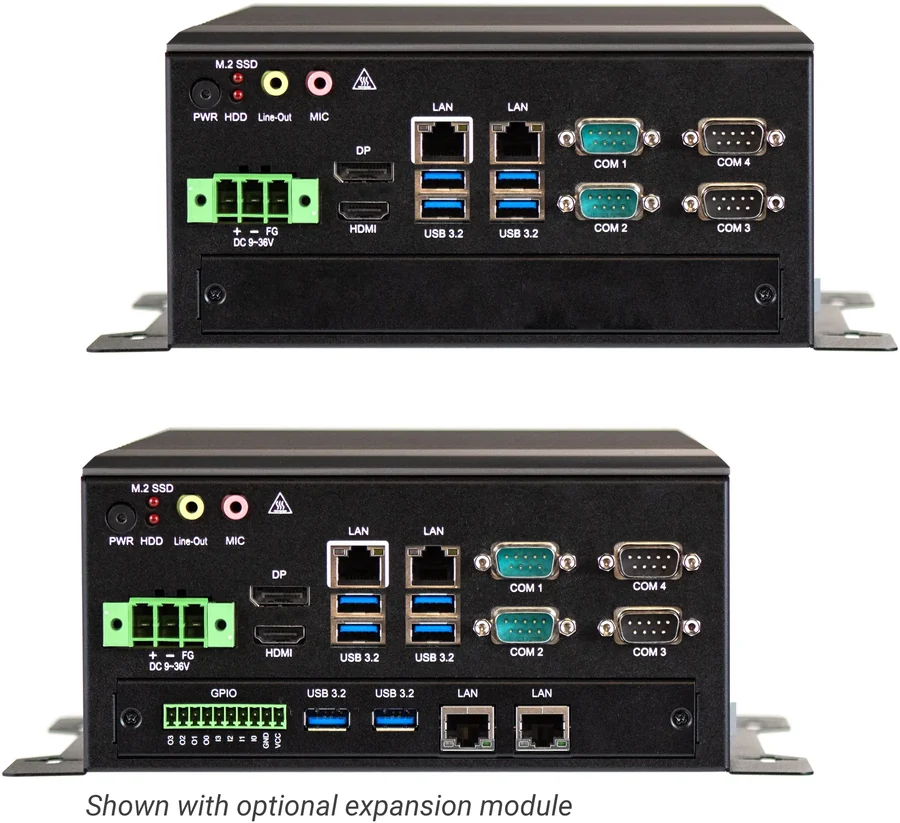

- Optional Wi-Fi kit (IEEE802.11ax card and 2 x antenna, Bluetooth 5.2 Support / Optional Expansion with GPIO (4 in/4 out), 2 x USB 3.2 Type A, 2 x GbE RJ45
Eléctrico
- Input Power
- 145 W
- Input Voltage
- 9-36 VDC
- Input Current
- 16.15 A~4.03 A
Mecánico

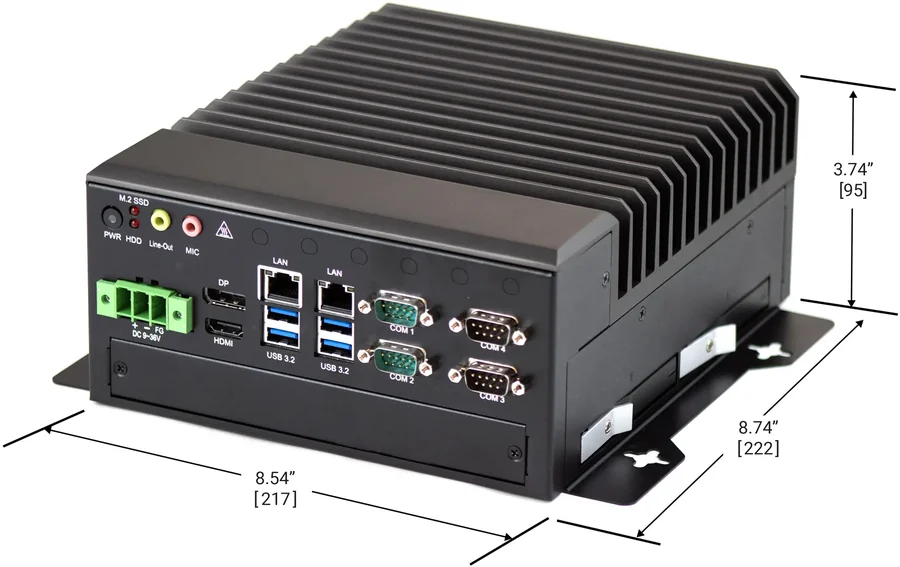

- Dimensions WxHxD
- 8.74 x 8.54 x 3.74 inches [222 x 217 x 95 mm]
- Weight
- Approx. 8.60 lbs [3.9 kg]
- Mounting
- Wall Mount Kit Included/VESA Mount Optional
- Construction
- Titanium Gray Aluminum Heat Sink, Black Steel Chassis
Ambiental
- Operating Temperature
- -4~140°F [-20~60°C]
- Storage Temperature
- -40°F~185°F (-40°C~85°C)
- Storage Humidity
- 10 to 90% @ 40°C, non-condensing
Certificaciones
- CE
- Yes
- RoHS
- Yes
- FCC
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- IPC2360A
- Línea
- Industrial Box PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
