IPC2215A
This compact IPC has a powerful Quad-Core CPU, multiple IO, and rugged construction makingThis compact IPC has a powerful Quad-Core CPU, multiple IO, and rugged construction making it ideal for outdoor applications. With a Windows® 10 or Windows® 11 Operating System, the IPC2215A supports 3rd party SCADA software like FactoryTalk®, SIMATIC WinCC, Ignition, or AVEVA® . Pair with one of our Industrial Monitors
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Intel® Quad-Core Celeron® J6412 2.0GHz CPU
- Up to 32 GB DDR4 SO-DIMM RAM
- Windows 10® or Windows 11® Available
- Wi-Fi/Bluetooth 5.2 upgrade available
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® Quad-Core Celeron® J6412 @ 2.0 GHz
- Memory (RAM)
- 2 x DDR4 260-pin SO-DIMM RAM (8, 16, 32 GB total)
- System Chipset
- SoC
- Solid State Drive Type
- SATA 3
- Solid State Drive Capacity
- 64, 128, 256, 512 GB, 1TB SSD
- CPU Graphics
- Intel® UHD Graphics
- TPM Module
- Yes (TPM 2.0)
Storage
- Solid State Drive
- 1 x M.2 SATA 3, 3D TLC (64, 128, 256, 512 GB, 1TB SSD)

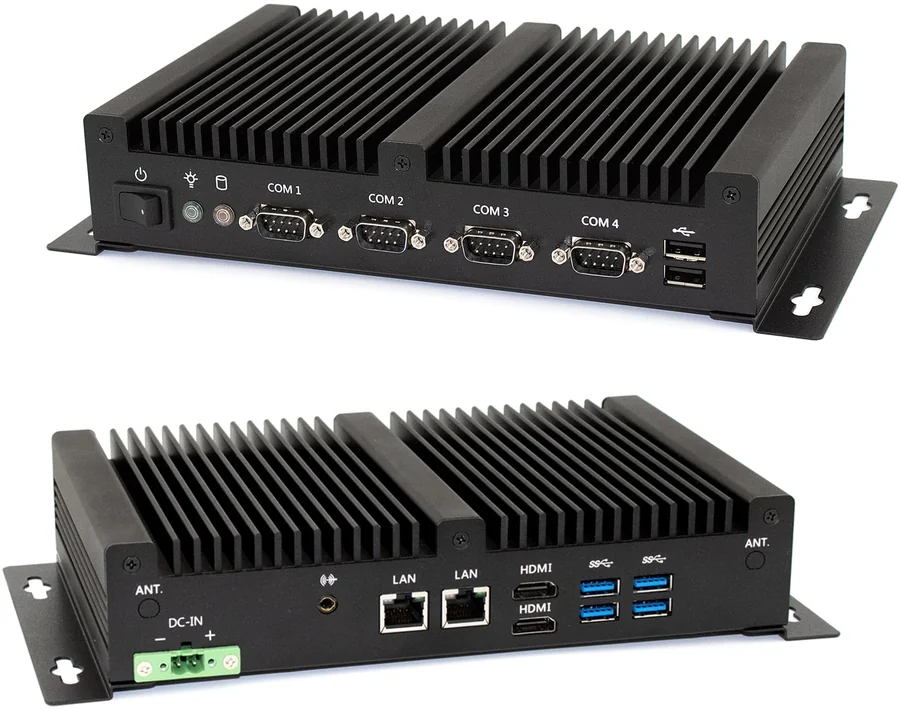

Front I/O
- USB 2.0 Type A
- 2
- Power Switch
- 1 x Momentary-Type Toggle Switch
- Serial
- 2 x RS-232/422/485 DE-9P: COM1, COM2 (default RS-232); 2 x RS-232 DE-9P : COM3, COM4

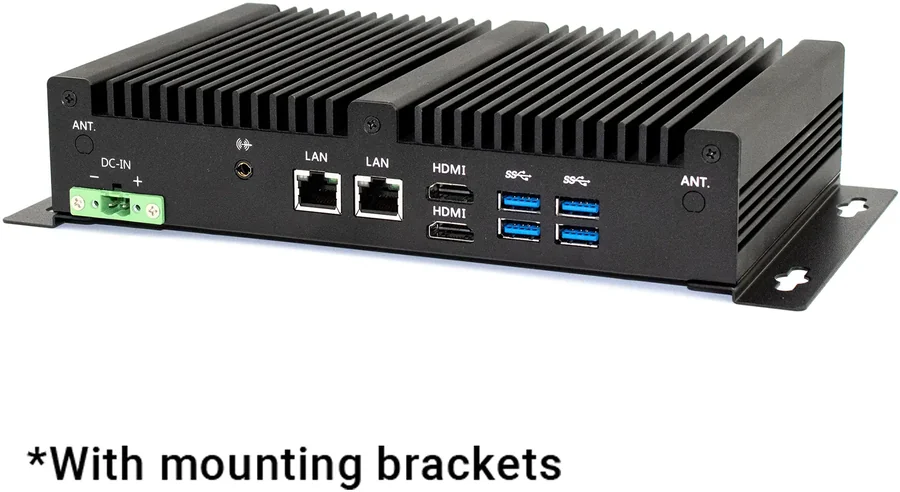

Rear I/O
- Wireless LAN
- 2x Wireless LAN Antenna ports (covered unless optional Wi-Fi Expansion kit purchased)
- USB 3.2 Gen 2 Type A
- 4
- Display Interface
- 2 x HDMI port (max. 4096 x 2160 pixels @60Hz)
- Ethernet/LAN
- 2 x GbE RJ-45
- Audio Output
- 1 x 3.5 mm Line-out
- Power
- 1 x 2-pin Terminal Block Connector
Expansion I/O
- Expansion Option
- Optional Wi-Fi kit (IEEE802.11ax card and 2 x antenna, Bluetooth 5.2 Support
Eléctrico
- Input Power
- 60 W Max
- Input Voltage
- 9~36 VDC +/- 10%
- Input Current
- 6.6 A Max
Mecánico

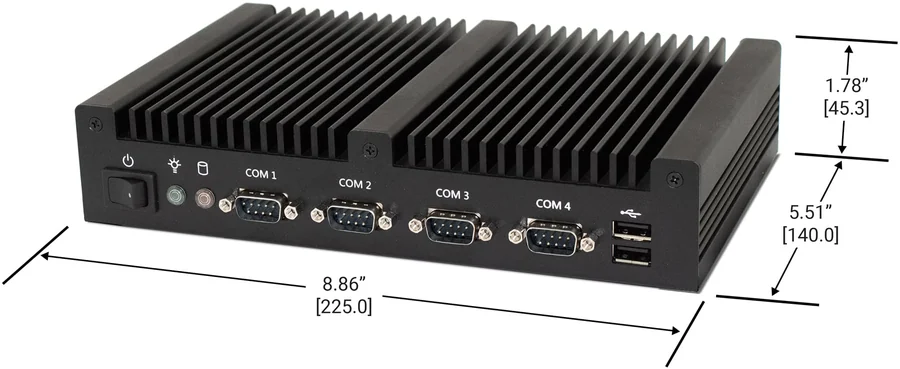

- Dimensions WxHxD
- 8.86 x 5.51 x 1.78 inches [225 x 140 x 45.3 mm]
- Weight
- Approx. 5.0 lbs. [2.50 kg]
- Mounting
- Wall Mount kit included
- Construction
- Black Aluminum Heatsink, Black Steel Chassis
Ambiental
- Operating Temperature
- 32~140°F [-0~60°C]
- Storage Temperature
- -40°F~185°F (-40°C~85°C)
- Storage Humidity
- 5 to 95%, non-condensing
Certificaciones
- IP Rating
- IP30
- CE
- Yes
- RoHS
- Yes
- FCC
- Class B
Datos del producto
- Marca
- Maple Systems
- Número de parte
- IPC2215A
- Línea
- Industrial Box PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
