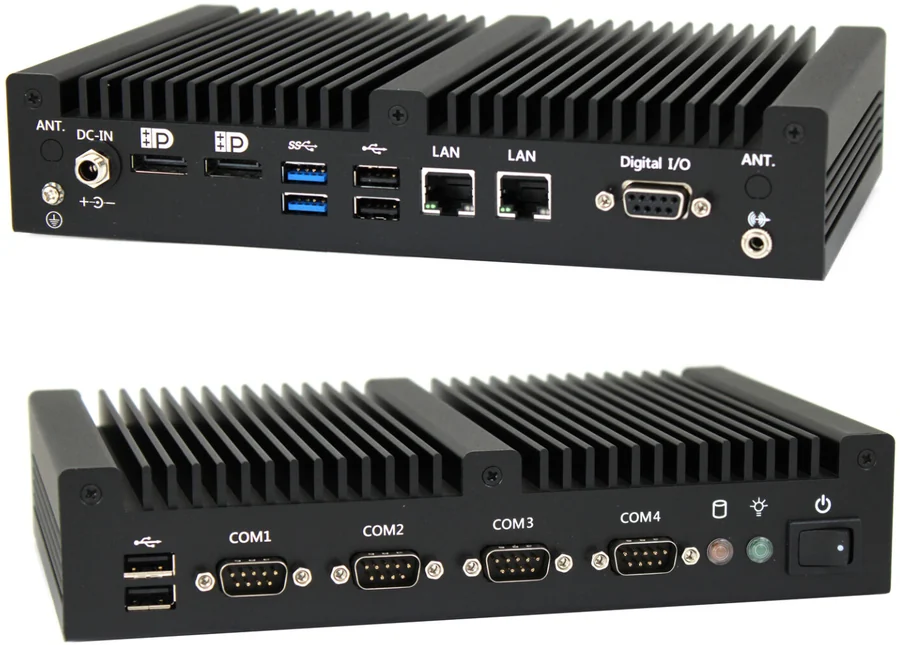

IPC2210A
The IPC2210A is a compact, rugged industrial PC designed for reliable operation in demandiThe IPC2210A is a compact, rugged industrial PC designed for reliable operation in demanding environments, with a wide operating temperature range ( -40°~70°C ), a powerful Quad-Core CPU, and multiple I/O interfaces. Available with Windows® or Linux® Ubuntu® , it supports a wide range of 3rd party and SCADA software like SIMATIC WinCC , Ignition , FactoryTalk® or AVEVA® .
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Intel® Atom® x6425E Elkhart Lake 2.0 GHz CPU
- Extended Operating Temp (-40C~70C)
- Up to 32 GB DDR4 SO-DIMM RAM
- Wi-Fi upgrade available
- Windows 10®, Windows 11®, or Linux® Available
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® Quad-Core Atom® x6425E @ 2.0 GHz
- Memory (RAM)
- 1 x DDR4 260-pin SO-DIMM RAM (8, 16, 32 GB)
- System Chipset
- SoC
- Solid State Drive Type
- SATA 3
- Solid State Drive Capacity
- 64, 128, 256, 512 GB, 1TB, 2TB SSD
- CPU Graphics
- Intel® UHD Graphics
- TPM Module
- Yes (TPM 2.0)
Storage
- Solid State Drive
- 1 x M.2 SATA 3, 3D TLC (64, 128, 256, 512 GB, 1TB, 2TB SSD)
Front I/O
- USB 2.0 Type A
- 2
- Power Switch
- 1 x Momentary-Type Toggle Switch
- Serial
- 1 x RS-232/422/485 DE-9P: COM2 (default RS-232); 3 x RS-232 DE-9P : COM1, COM3, COM4
Rear I/O
- Wireless LAN
- 2x Wireless LAN Antenna ports (covered unless optional Wi-Fi Expansion kit purchased)
- USB 3.2 Gen 2 Type A
- 2
- Digital I/O
- 1 x DE-9P (8-Bit GPIO, GND)
- Display Interface
- 2 x DP++port (max. 4096 x 2160 pixels @60Hz)
- Ethernet/LAN
- 2 x 2.5GbE RJ-45
- Audio Output
- 1 x 3.5 mm Line-out
- Power
- 1 x DC Power Input
- USB 2.0 Type A
- 2
Expansion I/O
- Expansion Option
- Optional Wi-Fi kit (IEEE802.11ax card and 2 x antenna, Bluetooth 5.2 Support
Eléctrico
- Input Power
- 60 W Max
- Input Voltage
- 12 VDC +/- 10%
- Input Current
- 5 A Max
Mecánico

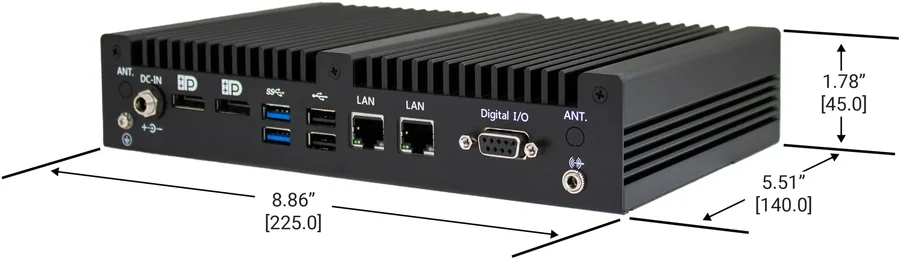

- Dimensions WxHxD
- 8.86 x 5.51 x 1.78 inches [225 x 140 x 45 mm]
- Weight
- Approx. 5.51 lbs. [2.50 kg]
- Mounting
- Wall Mount kit included
- Construction
- Black Aluminum Heatsink, Black Steel Chassis
Ambiental
- Operating Temperature
- -40~158°F [-40~70°C]
- Storage Temperature
- -40°F~185°F (-40°C~85°C)
- Storage Humidity
- 5 to 95%, non-condensing
Certificaciones
- IP Rating
- IP30
- CE
- Yes
- RoHS
- Yes
- FCC
- Class B
Datos del producto
- Marca
- Maple Systems
- Número de parte
- IPC2210A
- Línea
- Digital Signage · Extended Temp. PCs · Industrial Box PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
