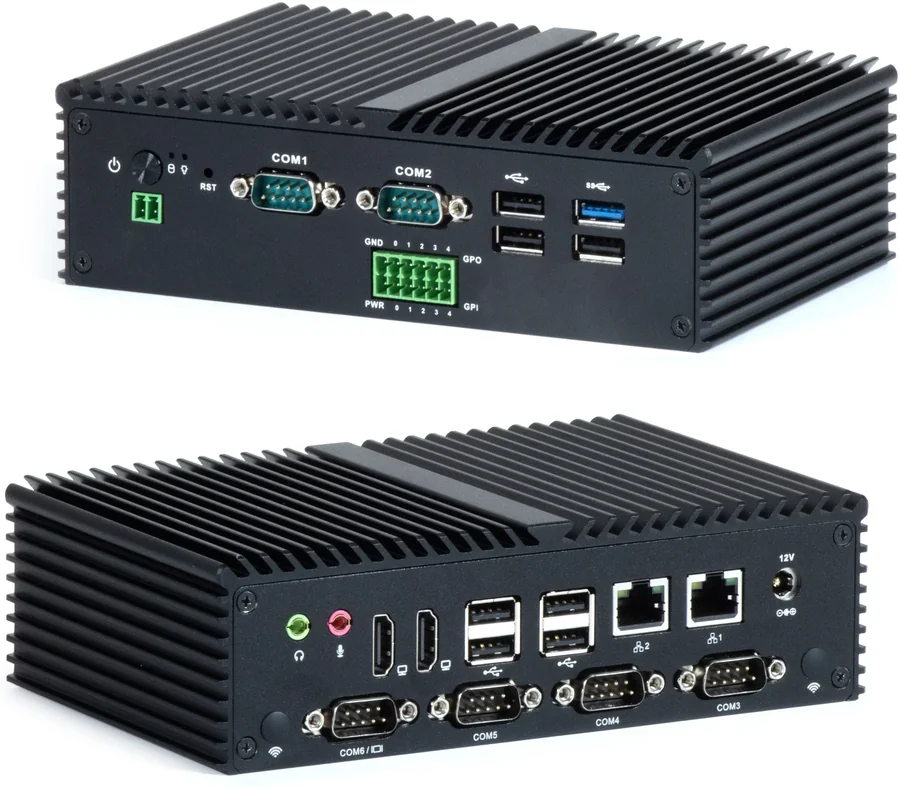

IPC2115A
Perfect for small footprints, this mini computer is big on power, I/O, and performance. ThPerfect for small footprints, this mini computer is big on power, I/O, and performance. The IPC2115A offers the choice of a Windows ® or Linux® Ubuntu ® Operating System. Support for FactoryTalk ® and other 3rd party or SCADA software like SIMATIC WinCC, Ignition, and AVEVA ® . Pair this IPC with one of our Industrial Monitors
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Intel ® Alder Lake-N N100 Quad-core, 3.4GHz Processor
- 2 x HDMI TM Ports and Built-in GPIO
- Choose Microsoft Windows 10, 11 or Ubuntu ® Linux ® OS
- Additional Memory, Storage, and Wi-Fi Kit upgrades available
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® Alder Lake-N N100 Quad-Core @ 3.4 GHz
- Memory (RAM)
- 1 x DDR5 SO-DIMM RAM (8, 16 GB)
- System Chipset
- SoC
- Solid State Drive Type
- NVME
- Solid State Drive Capacity
- 128, 256, 512 GB, 1TB, 2TB SSD
- CPU Graphics
- Intel® UHD Graphics
- TPM Module
- Yes (TPM 2.0)
Storage
- Solid State Drive
- 1 x M.2 NVME, 3D TLC (128, 256, 512 GB, 1TB, 2TB SSD)

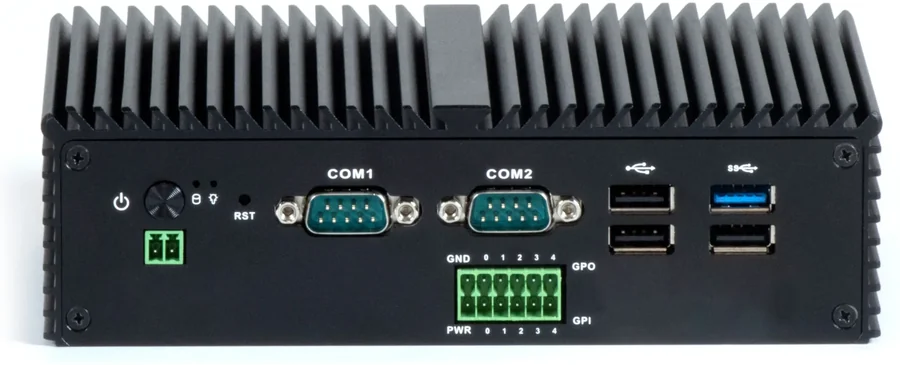

Front I/O
- USB 2.0 Type A
- 3
- USB 3.0 Type A
- 1
- Power Switch
- 1 x Momentary Pushbutton
- Remote Power Switch
- 2-Pin Connector Header
- Serial
- 2 x RS-232/485 DE-9P (COM1/COM2)
- Digital I/O
- 1 x 12-pin Terminal Block Connector (5-in, 5-out, 5 VDC GPIO)
Rear I/O
- Serial
- 4 x RS-232 DE-9P (COM3/COM4/COM5/COM6)
- Wireless LAN
- 2x Wireless LAN Antenna ports (covered unless optional Wi-Fi Expansion kit purchased)
- Display Interface
- 2 x HDMI port (max. 4096 x 2160 pixels @60Hz)
- Ethernet/LAN
- 2 x GbE RJ-45
- Audio Output
- 1 x 3.5 mm Headphone-out; 1 x 3.5 mm Mic-in
- Power
- 1 x 12VDC power input jack
- USB 2.0 Type A
- 4
Expansion I/O
- Expansion Option
- Optional Wi-Fi kit (IEEE802.11ax card and 2 x antenna, Bluetooth 5.2 Support
Eléctrico
- Input Power
- 60 W Max
- Input Voltage
- 12 VDC +/- 10%
- Input Current
- 5 A Max
Mecánico

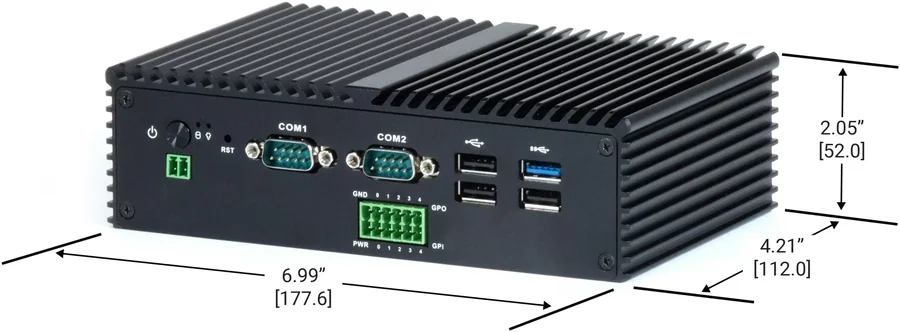

- Dimensions WxHxD
- 6.99 x 4.21 x 2.05" [177.6 x 112 x 52 mm]
- Weight
- Approx. 1.98 lbs. [0.9 kg]
- Mounting
- VESA 75 x 75 mm; Wall Mounting Kit Included
- Construction
- Black Aluminum Heatsink, SECC Steel Chassis
Ambiental
- Operating Temperature
- 32 ~ 122°F (0 ~ 50°C)
- Storage Temperature
- -4° ~ 158°F (-20° ~ 70°C)
- Storage Humidity
- 20 to 90%, non-condensing
Certificaciones
- CE
- Yes
- RoHS
- Yes
- FCC
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- IPC2115A
- Línea
- Industrial Box PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
