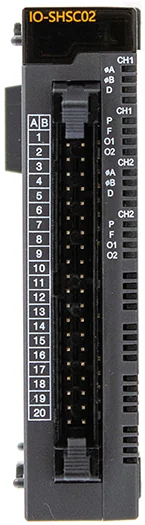

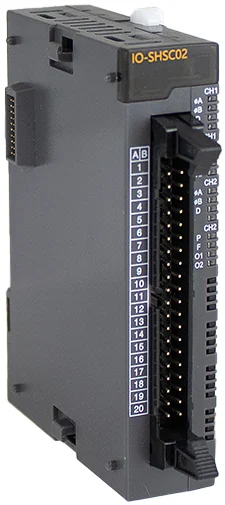

IO-SHSC02-KIT

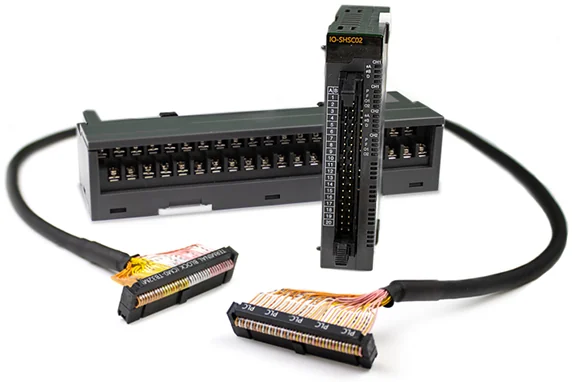

High Speed Counter (HSC) Kit. Module that will count pulses, monitor fast events, and contHigh Speed Counter (HSC) Kit. Module that will count pulses, monitor fast events, and control processes where precise and rapid counting is required. Kit includes HSC, terminal block and I/O cable . Support for the quadrature types open-collector and line-drive. Linear/Ring counter modes are supported.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 2-Channel high speed counter (5V, 12V, 24V)
- Up to 200kHz (kpps) count speed
- 1 phase input / 2 phase input
- Linear/Ring counter modes are supported
Functional
- Power Consumption
- 90 mA
- I/O Points
- 16 points
- Sensor
- 2 Channels
- Count Input Signal Phase
- 1 Phase input/2 Phase input
- Count Input Signal Level (фA,фB)
- 5/12/24 V DC 2—5 mA
- Count Input Signal Types
- PNP Encoder (-Common)
- Count Speed
- 200kHz (kpps)
- Count Range
- 32-bit signed binary values (-2147483648 — 2147483647)
- Count Mode
- Up/Down Preset Counter + Ring Counter
- Count Min. Count Pulse Period (µs) (Duty ratio 50%)
- 5 µs
- Maximum Input Frequency
- 200 kHz
- Compared Range
- 32-bit signed binary values
- Output Comparison
- Compared value (less than, equal to, greater than) Present value
- External Input
- 5/12/24 V DC 2—5 mA
- External Output
- TR (SINK Type) Output 12—24 V
Mecánico
- Terminal Connector Type
- External Terminal Block
- Dimensions WxHxD
- 90 x 20 x 60 mm (3.5 x 0.8 x 2.4 in)
- Weight
- 68.5 g (0.15 lb)
- Mounting
- 35mm DIN Rail Mounting
- Shock
- 15G
- Vibration
- 0.5G – Continuous, 1G – Discontinuous
- Square Wave Impulse Noise
- ±2 kV
- ESD Immunity
- ±4 kV – Contact Discharges, ±8 kV – Air Discharges
- Radiated Electromagnetic Immunity
- 80–1000 MHz, 10 V/m
- Surge Transient Immunity
- 2 kV – CPU, Power; 2 kV – Digital I/O (VAC), 1 kV – Digital I/O (VDC), 1 kV – Communication
Ambiental
- Operating Temperature
- -10 – 60 °C (14 – 140 °F)
- Storage Temperature
- -25 – 80 °C (-13 – 176 °F)
- Operating/Storage Relative Humidity
- 5 – 95% Non-condensing
Certificaciones
- CE
- Yes
- UL
- Yes
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- IO-SHSC02-KIT
- Línea
- All PLCs · Modular PLCs
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
