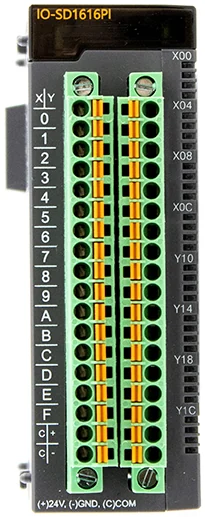

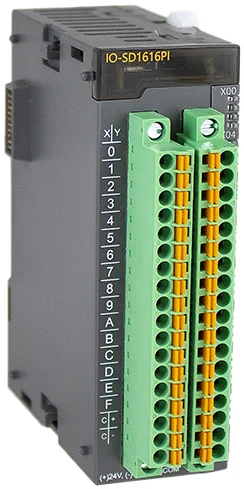

IO-SD1616PI
16 TR Sink/Source Inputs, 16 TR Source Outputs, 24 VDC, Push-in Terminal Connector
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 16 TR Sink/Source Inputs
- 16 TR Sourcing Outputs
- Compatible expansion with any Maple modular PLC CPU
- Group-isolated
- Automatically detects sink/source input, no programming required
Hoja de datosmaplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Digital Input
- Number of Digital Input Points
- 16
- Input Type
- Sink/Source
- Rated Digital Input Voltage
- 24 VDC
- Rated Digital Input Current
- 4 mA
- Response Time: Off -> On
- 3 ms or less
- Response Time: On -> Off
- 3 ms or less
- On Voltage/Current
- DC 19 V/3 mA
- Off Voltage/Current
- DC 6 V/1 mA
- Operation Indication
- LED will be ON when the input is ON
- Insulation Method
- Photocoupler
Digital Output
- Output Type
- Source
- Number of Digital Output Points
- 16
- Rated Digital Output Voltage
- 12/24 VDC
- Rated Digital Output Current
- 1 point = 0.2 A, 1 COM = 2 A
- Response Time: Off -> On
- 1 ms or less
- Response Time: On -> Off
- 1 ms or less
- Insulation Method
- Photocoupler
- Operation Indication
- LED will be ON when the input is ON
Mecánico
- Terminal Connector Type
- Push-in Terminal Connector
- Dimensions WxHxD
- 90 x 30 x 63 mm (3.5 x 1.2 x 2.5 in)
- Weight
- 116 g (0.26 lb)

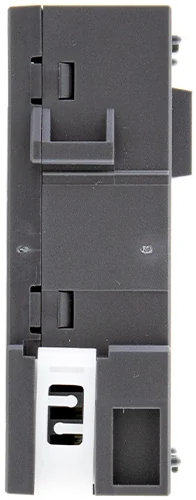

- Mounting
- 35mm DIN Rail Mounting
- Shock
- 15G
- Vibration
- 0.5G – Continuous, 1G – Discontinuous
- Square Wave Impulse Noise
- ±2 kV
- ESD Immunity
- ±4 kV – Contact Discharges, ±8 kV – Air Discharges
- Radiated Electromagnetic Immunity
- 80–1000 MHz, 10 V/m
- Surge Transient Immunity
- 2 kV – CPU, Power; 2 kV – Digital I/O (VAC), 1 kV – Digital I/O (VDC), 1 kV – Communication
Ambiental
- Operating Temperature
- -10 – 65 °C (14 – 149 °F)
- Storage Temperature
- -25 – 80 °C (-13 – 176 °F)
- Operating/Storage Relative Humidity
- 5 – 95% Non-condensing
Certificaciones
- CE
- Yes
- UL
- Yes
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- IO-SD1616PI
- Línea
- All PLCs · Modular PLCs
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
