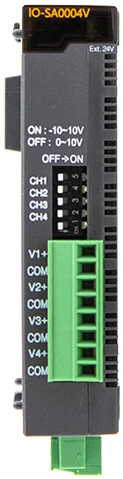

IO-SA0004V
4 Voltage Outputs (-10 – 10V) Analog Output Module
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 4 Analog Voltage Outputs
- 0-10V or –10-10V configuration (14-bit or 16-bit resolution)
- Screw-based connector
- Group-isolated
Hoja de datosmaplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Analog Output
- Number of Analog Output Points
- 4 Points
- Voltage
- 0 – 10 V, -10 – 10 V
- Minimum Load Impedance
- 3 kOhm
- Resolution
- 14-bit, 0 – 16000
- Accuracy
- ±0.01% (Full Scale)
- Conversion Speed
- <2 ms
- Insulation Method
- Photocoupler
- Power Supply
- External 24 VDC
- Current Consumption (mA) Internal
- @3.3 VDC, 40 mA
- Current Consumption (mA) External
- @24 VDC, 50 mA
Mecánico
- Terminal Connector Type
- Screw-based Connector
- Dimensions WxHxD
- 90 x 20 x 63 mm (3.5 x 0.8 x 2.5 in)
- Weight
- 86 g (0.19 lb)
- Mounting
- 35mm DIN Rail Mounting
- Shock
- 15G
- Vibration
- 0.5G – Continuous, 1G – Discontinuous
- Square Wave Impulse Noise
- ±2 kV
- ESD Immunity
- ±4 kV – Contact Discharges, ±8 kV – Air Discharges
- Radiated Electromagnetic Immunity
- 80–1000 MHz, 10 V/m
- Surge Transient Immunity
- 2 kV – CPU, Power; 2 kV – Digital I/O (VAC), 1 kV – Digital I/O (VDC), 1 kV – Communication
Ambiental
- Operating Temperature
- -10 – 60 °C (14 – 140 °F)
- Storage Temperature
- -25 – 80 °C (-13 – 176 °F)
- Operating/Storage Relative Humidity
- 5 – 95% Non-condensing
Certificaciones
- CE
- Yes
- UL
- Yes
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- IO-SA0004V
- Línea
- All PLCs · Modular PLCs
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
