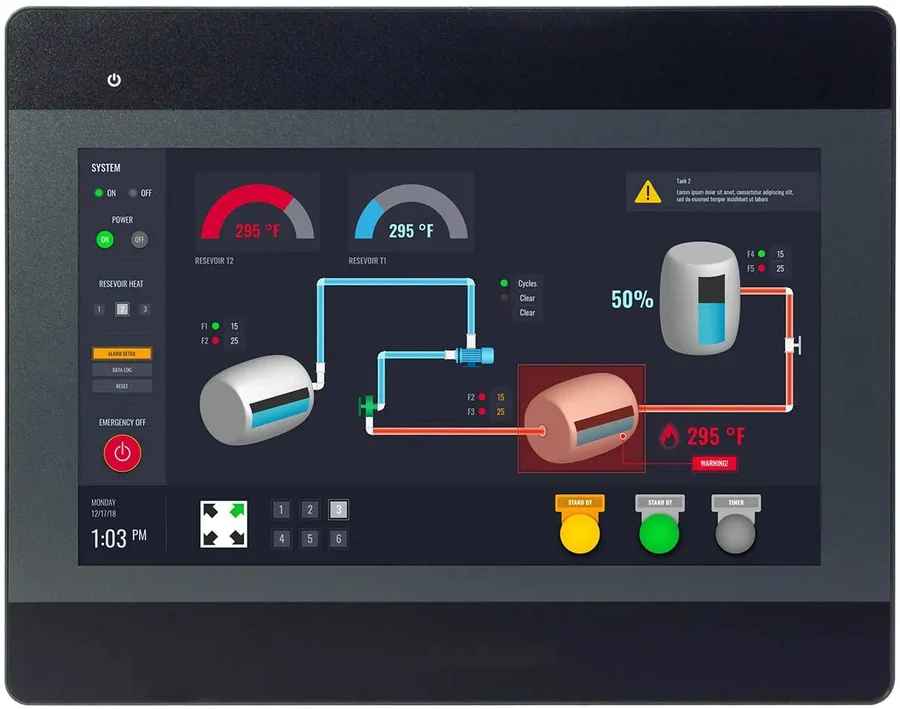

HMI5100Bv3
The wide-screen HMI5100Bv3 provides a high-quality unit for applications requiring straighThe wide-screen HMI5100Bv3 provides a high-quality unit for applications requiring straight-forward HMI functionality at a great price. Paired with our FREE software , this operator interface is an exceptional value. Try Before You Buy: Follow along to learn how EBPro, our 100% free HMI configuration software, allows you to develop and simulate your HMI program entirely free of charge.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 1024 x 600 Resolution
- Quad-Core RISC CPU
- Non-UL Certified
- 1 Ethernet Port, 1 USB Port, 2 Serial Ports
- 1 Year Warranty
- Support for over 400 protocols
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Quad-Core RISC
- Memory (RAM)
- 128 MB
- Memory (Flash)
- 256 MB
- RTC
- Built-in
- Programming Software
- EBPro (Latest Version)

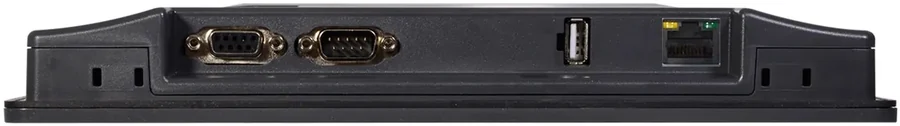

Puertos de E/S
- Ethernet/LAN
- 10/100 Base-T x 1
- USB Host Ports
- USB 2.0 x 1
- COM Port
- 1 x DE9S COM2: RS-485 2 or 4 wire, COM3: RS-485 2 wires / 1 x DE9P COM1: RS-232, COM3: RS-232
- Serial Ports
- 2
Pantalla
- Display Size
- 10.1" TFT
- Resolution
- 1024 x 600
- Luminance (cd/m^2)
- 350
- Contrast Ratio
- 1000:1
- Backlight Type
- LED
- Backlight Lifetime (hrs)
- 50,000+
- Colors
- 16.7 M
- Display Type
- 10.1” TFT
- Viewing Angle (H°/V°)
- 178/178
- Size (W x H)
- 8.70 x 5.12 inches [221 x 130 mm]
Pantalla táctil
- Type
- 4-wire resistive touch
- Accuracy
- Length (X) ±2%, width (Y) ±2%
Eléctrico
- Input Power
- 9.6 W
- Power Isolation
- Built-in
- Isolation Resistance
- Exceed 50 MΩ – @ 500 VDC
- Input Voltage
- 24 ± 20% VDC
- Input Current
- 400 mA @ 24 VDC
Mecánico
- Vibration Endurance
- 10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes)
- Enclosure Material
- Plastic, charcoal grey
- Dimensions WxHxD
- 10.67 x 8.39 x 1.44 inches [271 x 213 x 36.5 mm]
- Panel Cutout (inches) [mm]
- 10.24 x 7.95 [260 x 202]
- Weight
- Approx. 2.2 lbs. [1.0 kg]
- Mounting
- Panel mount
Ambiental
- Operating Temperature
- 32° ~ 131°F (0° ~ 55°C)
- Storage Temperature
- -4° ~ 140°F (-20° ~ 60°C)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- NEMA Rating
- NEMA4
- IP Rating
- IP65 compliant front panel
- CE
- Yes
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- HMI5100Bv3
- Línea
- Human Machine Interface
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
