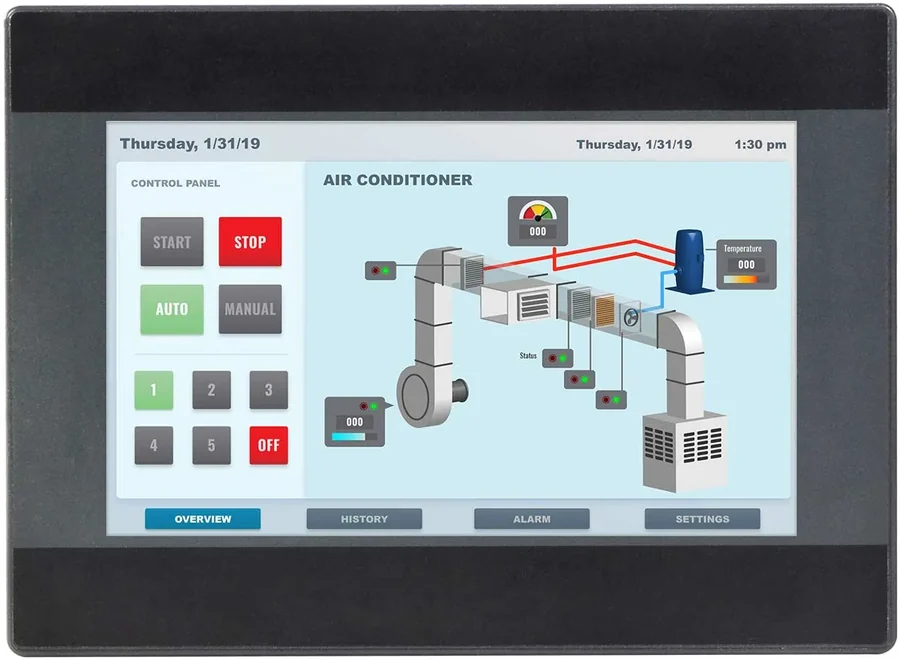

HMI5070Bv4
The HMI5070Bv4 HMI display touch screen provides a high-quality unit for applications requThe HMI5070Bv4 HMI display touch screen provides a high-quality unit for applications requiring straight-forward HMI functionality at a great price. Paired with our free software , this operator interface is an exceptional value. Try Before You Buy: Follow along to learn how EBPro, our 100% free HMI configuration software, allows you to develop and simulate your HMI program entirely free of charge.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 800 x 480 Resolution Touchscreen
- Quad Core RISC
- 1 Ethernet Port, 1 USB Port, 1 Serial Port
- 1 Year Warranty
- Support for over 400 protocols
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Quad-Core RISC
- Memory (RAM)
- 128 MB
- Memory (Flash)
- 128 MB
- RTC
- Built-in
- Programming Software
- EBPro (Latest Version)

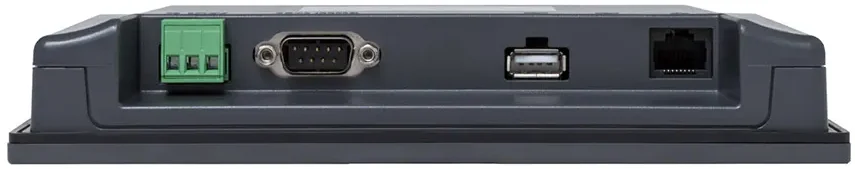

Puertos de E/S
- Ethernet/LAN
- 10/100 Base-T x 1
- USB Host Ports
- USB 2.0 x 1
- COM Port
- 1 x DE9P COM1: RS-232, COM2: RS-485 2 or 4 wires
- Serial Ports
- 1
Pantalla
- Display Size
- 7" TFT
- Resolution
- 800 x 480
- Luminance (cd/m^2)
- 300
- Contrast Ratio
- 500:1
- Backlight Type
- LED
- Backlight Lifetime (hrs)
- 30,000+
- Colors
- 16.7 M
- Display Type
- 7” TFT
- Viewing Angle (H°/V°)
- 140/120
- Size (W x H)
- 5.98 x 3.58 inches [152 x 91 mm]
Pantalla táctil
- Type
- 4-wire resistive touch
- Accuracy
- Length (X) ±2%, width (Y) ±2%
Eléctrico
- Input Power
- 10.8 W
- Power Isolation
- Built-in
- Isolation Resistance
- Exceed 50 MO – @ 500 VDC
- Input Voltage
- 24 ± 20% VDC
- Input Current
- 350 mA @ 24 VDC
Mecánico
- Vibration Endurance
- 10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes)
- Enclosure Material
- Plastic, charcoal grey
- Dimensions WxHxD
- 7.89 x 5.77 x 1.34 inches [200.4 x 146.5 x 34 mm]
- Panel Cutout (inches) [mm]
- 7.56 x 5.43 [192 x 138]
- Weight
- Approx. 1.15 lbs. [0.52 kg]
- Mounting
- Panel mount
Ambiental
- Operating Temperature
- 32° ~ 131°F (0° ~ 55°C)
- Storage Temperature
- -4° ~ 140°F (-20° ~ 60°C)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- NEMA Rating
- NEMA4
- IP Rating
- IP65 compliant front panel
- CE
- Yes
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- HMI5070Bv4
- Línea
- Human Machine Interface
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
