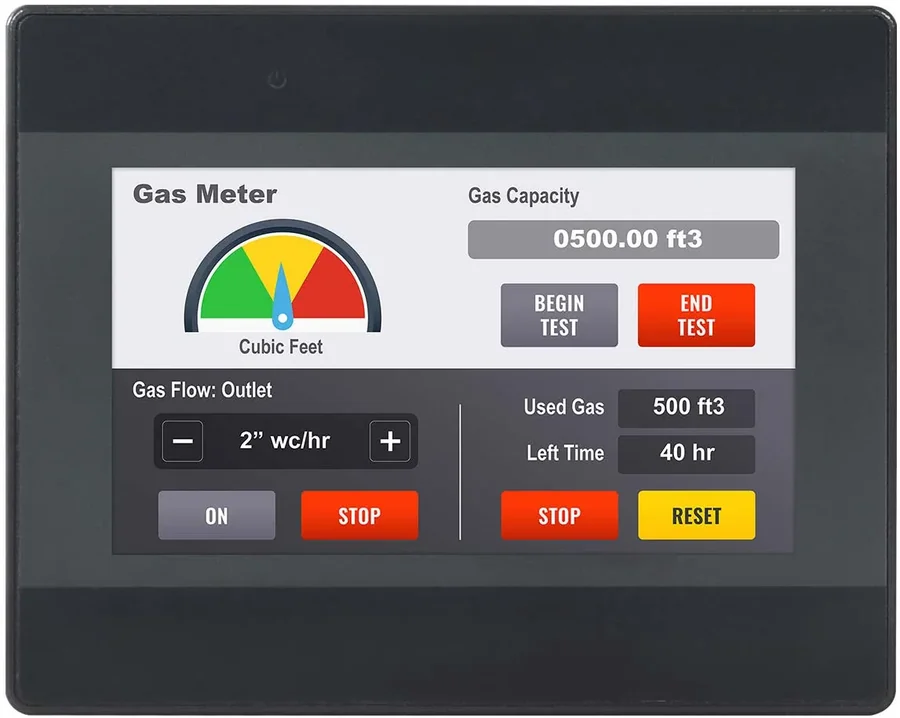

HMI5040Bv2
As part of our Standard Series , this model provides a high-quality unit for applications As part of our Standard Series , this model provides a high-quality unit for applications requiring straight-forward HMI functionality at a great price. Paired with our free software , the Standard Series is an exceptional value. See our Advanced and High Performance HMI Series if your project requires UL or additional features.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 480 x 272 Resolution
- Dual Core-RISC CPU
- Non-UL Certified
- 1 Year Warranty
- Support for over 400 protocols
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Dual-Core RISC
- Memory (RAM)
- 128 MB
- Memory (Flash)
- 256 MB
- RTC
- Built-in
- Programming Software
- EBPro (Latest Version)

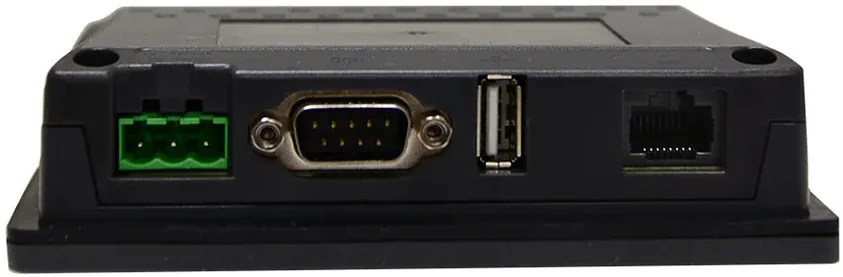

Puertos de E/S
- Ethernet/LAN
- 10/100 Base-T x 1
- USB Host Ports
- USB 2.0 x 1
- COM Port
- 1 x DE9P COM1: RS-232/RS-485 2 or 4 wire, COM 3: RS-485 2 wires
- Serial Ports
- 1
Pantalla
- Display Size
- 4.3" TFT
- Resolution
- 480 x 272
- Luminance (cd/m^2)
- 400
- Contrast Ratio
- 500:1
- Backlight Type
- LED
- Backlight Lifetime (hrs)
- 30,000+
- Colors
- 16.7 M
- Display Type
- 4.3" TFT
- Viewing Angle (H°/V°)
- 140/120
- Size (W x H)
- 3.74 x 2.13 inches [95 x 54 mm]
Pantalla táctil
- Type
- 4-wire resistive touch
- Accuracy
- Length (X) ±2%, width (Y) ±2%
Eléctrico
- Input Power
- 9.6 W
- Power Isolation
- Built-in
- Isolation Resistance
- Exceed 50 MΩ – @ 500 VDC
- Input Voltage
- 24 ± 20% VDC
- Input Current
- 400 mA @ 24 VDC
Mecánico
- Vibration Endurance
- 10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes)
- Enclosure Material
- Plastic, charcoal grey
- Dimensions WxHxD
- 5.04 x 4.02 x 1.26 inches [128 x 102 x 32 mm]
- Panel Cutout (inches) [mm]
- 4.69 x 3.66 [119 x 93]
- Weight
- Approx. 0.55 lbs. [0.25 Kg]
- Mounting
- Panel mount
Ambiental
- Operating Temperature
- 32° ~ 131°F (0° ~ 55°C)
- Storage Temperature
- -4° ~ 140°F (-20° ~ 60°C)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- NEMA Rating
- NEMA4
- IP Rating
- IP65 compliant front panel
- CE
- Yes
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- HMI5040Bv2
- Línea
- Human Machine Interface
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
