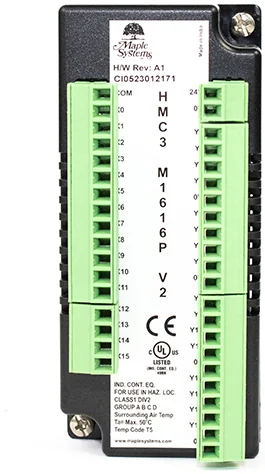

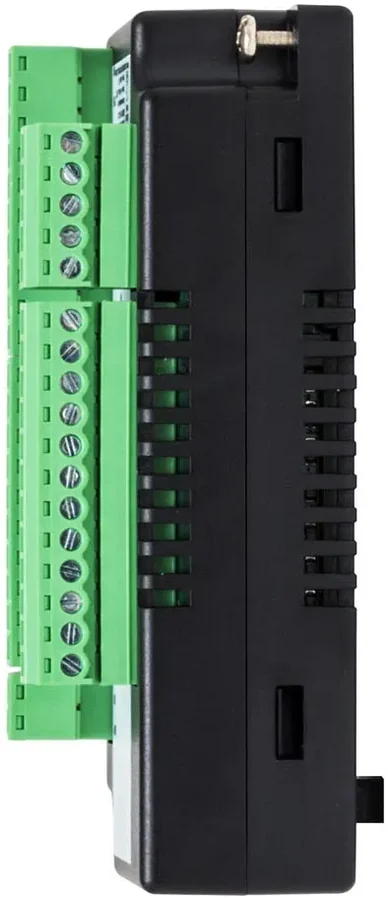

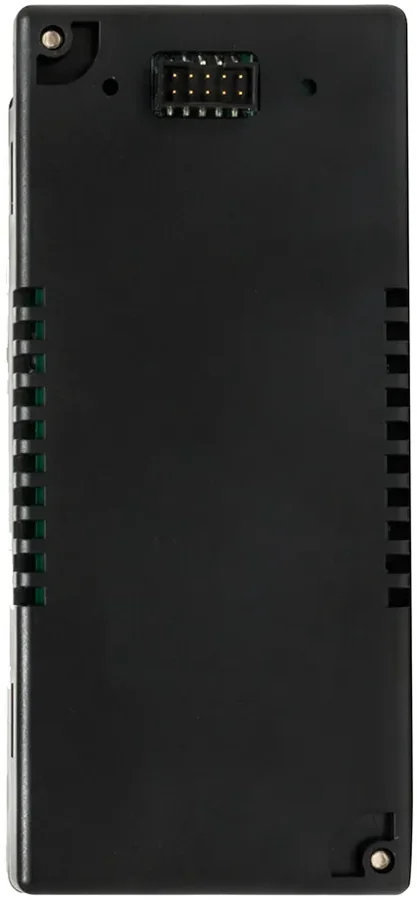

HMC3-M1616P-V2
As part of the HMC2000 and HMC4000, this Digital I/O module expands the capabilities of thAs part of the HMC2000 and HMC4000, this Digital I/O module expands the capabilities of the HMI for increased PLC functionality. Mix and match additional I/O modules to meet your unique project needs. 16 DI, 16 DO
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 16 Bi-Directional Digital Inputs ( 2 High Speed (Quadrature, Standard))
- 16 PNP Digital Outputs ( 1 PWM (Normal, CW/CCW, Pulse/Direction and Fixed Pulse))
- Class I, Division 2 Rated
Hoja de datosmaplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Power Supply
- Voltage Rating
- 24VDC (±15%), 12V from base
- Power Rating
- Input/channel: 24VDC, 5mA typical Output/Channel: 250mA @ 24VDC
- Isolation
- Optical Isolation for all I/O points. High isolation voltage (BV= Greater than 1.5 KV)
Digital I/O
- High Speed Inputs (HSC)
- 2 pairs
- Max Input Frequency (HSC)
- 200kHz
- High Speed Output (PWM)
- 1
- Max Output Frequency (PWM)
- 1kHz
- Number of Inputs
- 16 Inputs Bi-directional Type
- Input Design
- According to EN 61131-2 Type 1
- ON Voltage
- Min.: 15VDC, Max.: 30VDC
- OFF Voltage
- Min.: -3VDC, Max.: 5VDC
- Nominal Input Voltage
- 24VDC
- Nominal Input Current
- 5mA typical
- Input Response Time
- ON: 10msec, OFF: 10msec
- Input Impedance
- 4.8 KΩ
- Number of Outputs
- 16 PNP type transistor outputs
- ON Output Voltage
- Min ON: 22VDC, Max. ON: 30VDC (Voltage across load)
- Nominal Output Voltage
- 30VDC
- Nominal Output Current
- 250mA type/channel
- Output Response Time
- ON: 10msec, OFF: 10msec
- Accuracy
- ± 0.2% of full scale @ 25°C
Ambiental
- Operating Temperature
- 0 to 60°C
- Storage Temperature
- -20 to 85°C
- Humidity
- 10 to 90% (Non-Condensing)
- Short Circuit Protection
- Yes
- Product Dimensions
- 48mm x 108mm x 35.7mm (W x H x D)
Certificaciones
- Class 1 Div 2
- Yes
- Approvals
- CE, UL
Datos del producto
- Marca
- Maple Systems
- Número de parte
- HMC3-M1616P-V2
- Línea
- HMI + PLC
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
