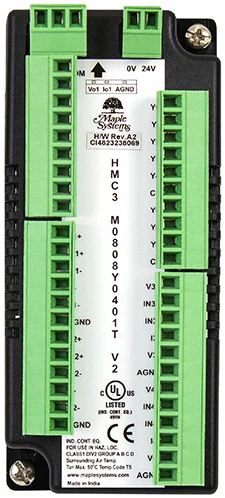

HMC3-M0808Y0401T-V2
As part of the HMC2000 and HMC4000, this I/O module expands the capabilities of the HMI foAs part of the HMC2000 and HMC4000, this I/O module expands the capabilities of the HMI for increased PLC functionality. Mix and match additional I/O modules to meet your unique project needs. 8 DI, 8 DO, 4 AI, 1 AO
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 8 Bi-Directional Digital Inputs ( 2 High Speed (Quadrature, Standard))
- 8 Digital Outputs ( 6 Relay , 2 PNP , 2 PWM (Normal, CW/CCW, Pulse/Direction and Fixed Pulse))
- 4 Analog Inputs (Voltage/Current/ Thermocouple / RTD )
- 1 Analog Outputs (Voltage/Current)
- Class I, Division 2 Rated
Hoja de datosmaplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Power Supply
- Voltage Rating
- 24VDC (±15%)
- Power Rating
- Input/channel – 24 VDC 5mA typical; Output/Channel – 250mA@ 24VDC for PNP, 2A @24VDC & 230VAC for Relay
- Isolation
- Optical Isolation for all I/O points. High isolation voltage (BV= Greater than 1.5kV)
Digital I/O
- High Speed Inputs (HSC)
- 2 pairs
- Max Input Frequency (HSC)
- 200kHz
- High Speed Output (PWM)
- 2
- Max Output Frequency (PWM)
- 200kHz
- Number of Inputs
- 8 Inputs Bi-directional Type
- ON Voltage
- Min. 15VDC, Max. 30VDC
- OFF Voltage
- Min. -3VDC, Max. 3VDC
- Nominal Input Voltage
- 24VDC
- Nominal Input Current
- 5mA typical
- Input Response Time
- ON: 10msec, OFF: 10msec
- Input Impedance
- Greater than 4.8kΩ
- Number of Outputs
- 8 Digital outputs – 2 PNP type transistor outputs and 6 Relay type outputs
- Nominal Output Voltage
- 24VDC
- Nominal Output Current
- 250mA@ 24VDC for PNP, 2A@24VDC & 230VAC for Relay
- Output Response Time
- ON: 10msec, OFF: 10msec (for Relay), ON/OFF: 20 to 30 µs (for transistor)
Analog I/O
- mV Input
- 0-50mV, 0-100mV
- Thermocouple Input
- J and K type
- RTD Input
- PT100 (α1, α2), PT1000
- Analog Input Total Channels
- 4 Universal Input channels (16 bit resolution)
- Input Type
- 0-20mA, 4-20mA & 0-10VDC, 0-5VDC 0-50mV, 0-100mV, Thermocouple (Type J and K) and RTD (PT100 a1, PT100 a2, PT1000)
- Analog Output Total Channels
- 1 Output channels (12 bit resolution)
- Output Type
- 0-20mA, 4-20mA and 0-10VDC, 0-5VDC
- Accuracy
- ± 0.2% of full scale @ 25°C & ± 0.5% of full scale over temperature range
Ambiental
- Operating Temperature
- 0 to 60°C
- Storage Temperature
- -20 to 85°C
- Humidity
- 10 to 90% (Non-Condensing)
- Short Circuit Protection
- Yes
- Product Dimensions
- 48mm x 108mm x 41mm (W x H x D)
Certificaciones
- Class 1 Div 2
- Yes
- Approvals
- CE, UL
Datos del producto
- Marca
- Maple Systems
- Número de parte
- HMC3-M0808Y0401T-V2
- Línea
- HMI + PLC
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
