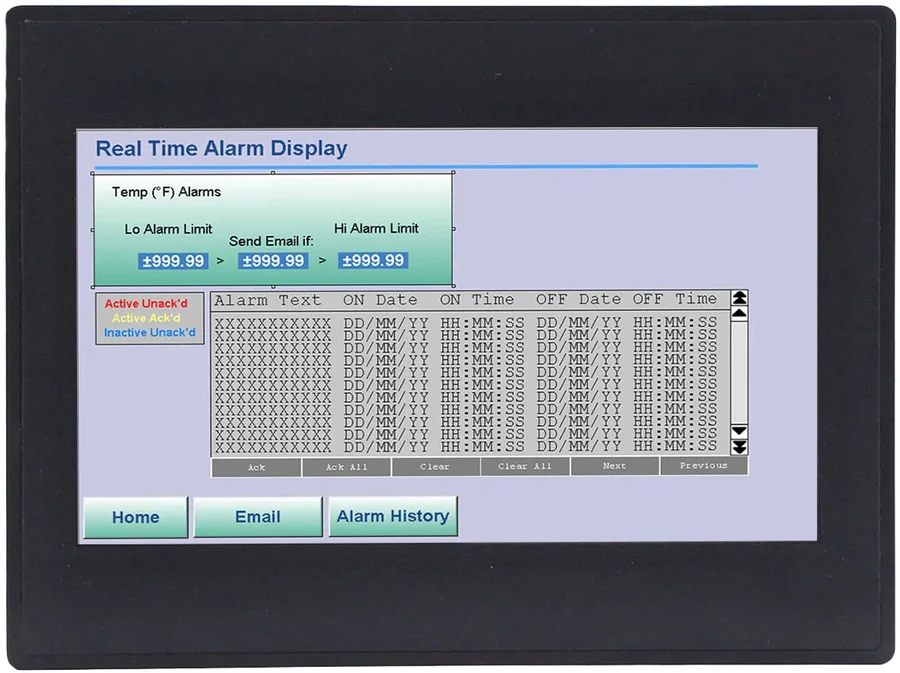

HMC2070A-M
Expandable Class I Division 2, HMI+ PLC combines the ease of a graphic HMI with PLC functiExpandable Class I Division 2, HMI+ PLC combines the ease of a graphic HMI with PLC functionality in one unit and one software. Pair this with up to three HMC3 I/O modules , to make this HMI + PLC customized and cost effective for your application. Paired with free configuration software , the HMC2070A-M product is best suited for upgrades from the HMC3000 series.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Support for up to 3 I/O Expansion Modules
- IEC 61131-3 Programming Logic
- Class I, Division 2 Rated
- Send files via FTP, Web Server
- New project should use the HMC4070A-M
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- 32-bit RISC 454MHz
- Memory (RAM)
- 16 MB
- Memory (Flash)
- 16 MB
- RTC
- Built-in
- Application Memory
- 8 MB
- Programming Software
- MAPware-7000 (Latest Version)
- PLC Ladder Memory
- 2 MB
- PLC Ladder Logic
- Yes
Puertos de E/S
- Ethernet/LAN
- 10/100 Base-T x 1
- SD Card Slot
- SD/SDHC (32GB capacity)
- USB Host Ports
- USB 2.0 x 1 (Type A)
- USB Client Ports
- USB 2.0 x 1 (Type C)
- COM Port
- COM1: RS-232/RS-485 2W/4W, COM2: RS-232/RS-485 2W/4W
- I/O
- Expandable
- I/O Slots
- 3
- Max I/O Points (Digital)
- 96
- Max Digital In
- 48
- Max Digital Out
- 48
- Max I/O Points (Analog)
- 15
- Max Analog In
- 12
- Max Analog Out
- 3
- Serial Ports
- 2
Pantalla
- Display Size
- 7" WVGA
- Resolution
- 800 x 480
- Luminance (cd/m^2)
- 350
- Contrast Ratio
- 500:1
- Backlight Type
- LED
- Backlight Lifetime (hrs)
- 25,000+
- Colors
- 16.7 M
- View Angle (H° V°)
- 140/120
Pantalla táctil
- Type
- TFT Resistive
Eléctrico
- Input Current (Base Only)
- 230 mA @ 24 VDC
- Input Power (Base Only)
- 5.52 W
- Input Current w/ Expansion(s)
- 250 mA @ 24 VDC
- Input Power w/ Expansion(s)
- 6 W
- Input Voltage
- 24 VDC +20%, -15%
Mecánico
- Vibration Endurance
- 5 to 150Hz (X, Y, Z direction 3G peak)
- Enclosure Material
- Black Plastic
- Dimensions WxHxD
- 7.32 x 5.43 x 1.22 [186mm x 138mm x 31mm]
- Panel Cutout (inches) [mm]
- 6.88 x 5.00 [175 x 127]
- Weight
- Approx. 0.88 lbs. [0.4 Kg]
- Mounting
- Panel mount
- Shock (Operation)
- 25 g acceleration for 11 ms
Ambiental
- Operating Temperature
- 32~122°F [0~50°C]
- Storage Temperature
- -4° ~ 185°F (-20° ~ 85°C)
- Relative Humidity
- 10% ~ 95% (non-condensing)
Certificaciones
- UL Type Rating
- UL Class 1 Div 2
- IP Rating
- IP66 Compliant Front Panel
- CE
- Yes
- UL
- cULus Listed
- Class 1 Div 2
- Yes
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- HMC2070A-M
- Línea
- HMI + PLC
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
