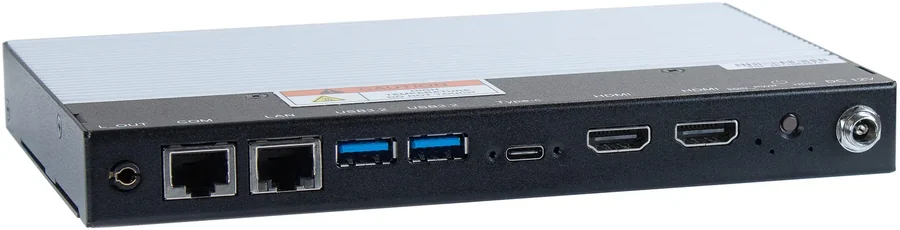

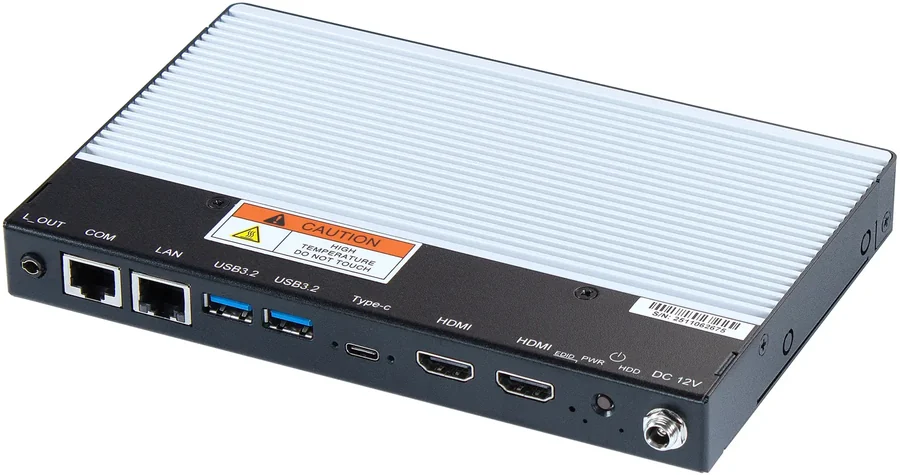

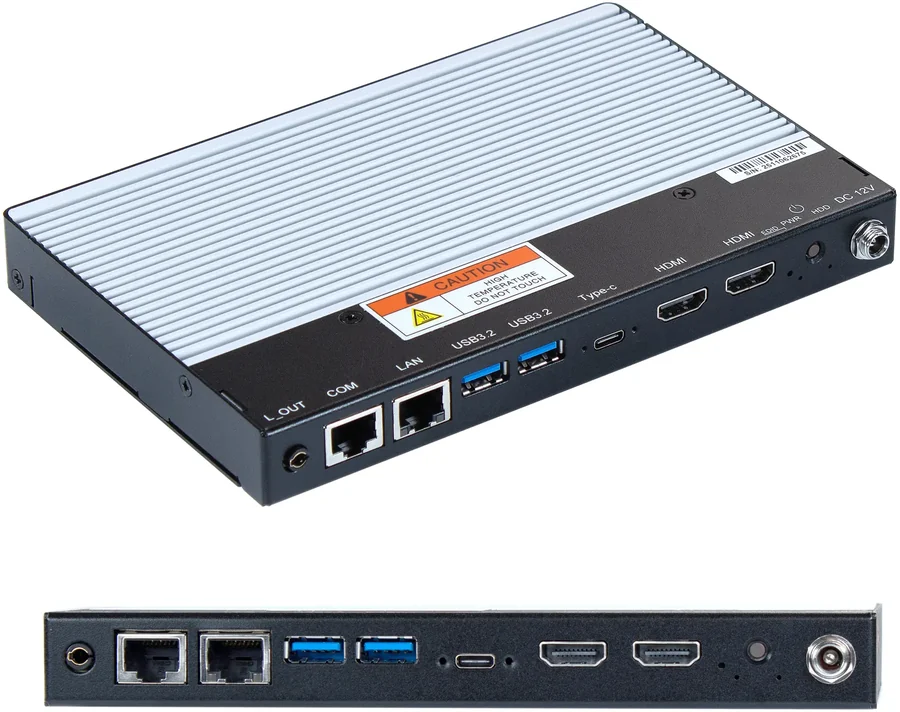

BPC5023A
The BPC5023A is a compact, fanless digital signage player designed for reliable 24/7 operaThe BPC5023A is a compact, fanless digital signage player designed for reliable 24/7 operation in retail, transportation, corporate, and public environments. Powered by the latest Intel® Amston Lake, Atom® x7433RE Quad-Core™ processor, it delivers smooth 4K multimedia playback with dual HDMI 2.0 outputs for independent dual-display support .
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Intel® Amston Lake, Atom® x7433RE Quad-Core™ Processor
- Intelligent Energy Saving Technology, CEC and EDID emulation built-in
- Wake on LAN (WoL) and PDPC technologies included
- High-Resolution Multi-Display Output
- cULus Listed, Wi-Fi/Bluetooth 5.2 Options
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® Amston Lake, Atom® x7433RE Quad-Core™ up to 3.40GHz Processor
- Memory (RAM)
- 1 x DDR5 SO-DIMM RAM (8, 16 GB)
- System Chipset
- SoC
- Solid State Drive Type
- SATA3 3D TLC (64GB) / NVMe 3D TLC (All Others) Learn More Solid State Drive Type: SATA3 3D TLC (64GB) / NVMe 3D TLC (All Others) *Only the 64GB is configured with a SATA3 3D TLC SSD. 128GB, 256GB, 512GB, 1TB, 2TB are NVMe 3D TLC SSDs.
- Solid State Drive Capacity
- 64, 128, 256, 512 GB, 1TB, 2TB SSD
- CPU Graphics
- Gen 12 UHD Graphics (up to 32EU)
- TPM Module
- Yes (TPM 2.0)
Storage
- Solid State Drive
- 1 x M.2 2280 SATA3 3D TLC (64GB) / NVMe 3D TLC SSD (128GB, 256GB, 512GB, 1TB, 2TB) Learn More Solid State Drive: 1 x M.2 2280 SATA3 3D TLC (64GB) / NVMe 3D TLC SSD (128GB, 256GB, 512GB, 1TB, 2TB) *Only the 64GB is configured with a SATA3 3D TLC SSD. 128GB, 256GB, 512GB, 1TB, 2TB are NVMe 3D TLC SSDs.
Front I/O
- Wireless LAN
- 2x Wireless LAN Antenna ports (covered unless optional Wi-Fi Expansion kit purchased)
- Ethernet/LAN
- 1 x GbE RJ45
- Audio Output
- 1 x 3.5 mm Line-out
- Power
- 1 x DC Jack Input Connector
- USB 2.0 Type A
- 1
- USB 3.2 Type A
- 2
- Power Switch
- 1 x Momentary Pushbutton
- Serial
- 1 x RS-232 RJ45: COM 1
- Display Interface
- 2 x HDMI 2.0b (max. 3840 x 2160 pixels @ 60Hz)
- EDID
- Yes Learn More EDID: Yes Extended Display Identification Data. EDID is the data a monitor sends to the PC telling it what its capabilities are. The emulator basically mimics that data so the IPC thinks the monitor is always connected and powered on, which prevents connection loss, even when changing out displays or providing maintenance, allowing for 24/7 operation.
Auto Control and Monitoring
- Watchdog Timer
- 256 Segments, 0, 1, 2…255 (sec/min) Learn More Watchdog Timer: 256 Segments, 0, 1, 2…255 (sec/min) Acts as a fail-safe recovery mechanism that automatically resets the system if it becomes unresponsive.
- Energy Saving Technology
- Yes Learn More Energy Saving Technology: Yes This Energy Saving Technology automatically manages system power states based on usage, helping reduce power consumption during idle or low-load conditions. Allowing automatic, scheduled power on/shut down/ resume based on predefined schedules, saves cost, extends lifespan, and reduces cooling requirements.
- EDID HW
- Yes Learn More EDID HW: Yes Extended Display Identification Data. EDID is the data a monitor sends to the PC telling it what its capabilities are. The emulator basically mimics that data so the IPC thinks the monitor is always connected and powered on, which prevents connection loss, even when changing out displays or providing maintenance, allowing for 24/7 operation.
- PDPC Support
- Yes Learn More PDPC Support: Yes Intelligently manages power to connected USB peripherals, reducing energy consumption and improving system reliability.
- HDMI-CEC
- Yes Learn More HDMI-CEC: Yes HDMI-CEC enables automatic control of connected displays, including powering the display on or off, switching inputs, and synchronizing operation without requiring additional control cables
- Wake on LAN (WoL)
- Yes Learn More Wake on LAN (WoL): Yes Wake on LAN (WoL) enables administrators to start, update, or troubleshoot signage systems without physical access, reducing maintenance time and improving operational efficiency.
Expansion I/O
- Expansion Option
- Optional Wi-Fi kit (IEEE802.11ax card and 2 x antenna, Bluetooth 5.2 Support
Eléctrico
- Input Power
- 50 W
- Input Voltage
- 12 VDC +/- 10%
- Input Current
- 4.17A Max.
- Power Supply
- 50W Power Adaptor with locking DC plug included (does not support Op. Temp -40°-158°F)
Mecánico
- Dimensions WxHxD
- 8.54" x 0.88" x 4.84" [217 x 22.5 x 123 mm]
- Weight
- Approx. 2.2 lbs. [1.0 kg]
- Mounting
- Wall Mount kit included
- Construction
- Aluminum Heatsink, SGCC Chassis
Ambiental
- Operating Temperature
- -40° – 158°F [-40° – 70°C] without the included power adapter / 32° – 113°F [0° – 45°C] with the included power adapter
- Storage Temperature
- -40° – 185°F [-40° – 85°C] without the included power adapter
- Storage Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- IP Rating
- IP30
- CE
- Yes
- UL
- Yes
- RoHS
- Yes
- FCC
- Class B
Datos del producto
- Marca
- Maple Systems
- Número de parte
- BPC5023A
- Línea
- Digital Signage · Digital Signage Box PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
