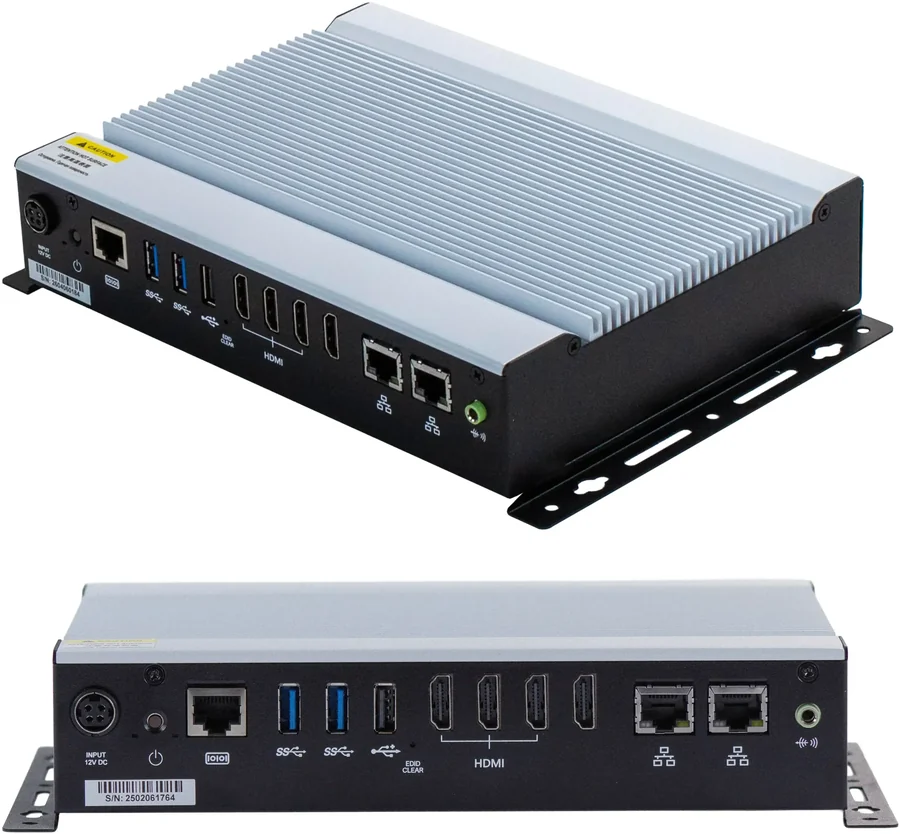

BPC2620A
This UL listed, embedded system is designed to deliver reliable performance in demanding eThis UL listed, embedded system is designed to deliver reliable performance in demanding environments, while providing the graphics capability and connectivity required for modern control rooms and monitoring stations. Combining durability with multimedia performance, the BPC2620A is an ideal solution for industries requiring both operational computing and visual communication.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- AMD® Ryzen™ R2314 Processor (Zen+)
- Next Gen AMD Radeon® HD GPU Graphics
- Intelligent Energy Saving Technology
- High-Resolution Multi-Display Output
- cULus Listed, Wi-Fi/Bluetooth 5.2 Options
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- AMD® Ryzen R2314 Processor (Zen+)
- Memory (RAM)
- 1 x DDR4 260-pin SO-DIMM RAM (8, 16, 32 GB)
- System Chipset
- SoC
- Solid State Drive Type
- SATA 3
- Solid State Drive Capacity
- 64, 128, 256, 512 GB, 1TB, 2TB SSD
- CPU Graphics
- Next-Gen AMD Radeon® HD GPU Graphics Integrated
- TPM Module
- AMD® fTPM 2.0
Storage
- Solid State Drive
- 1 x M.2 SATA 3, 3D TLC (64, 128, 256, 512 GB, 1TB, 2TB SSD)
Front I/O
- Wireless LAN
- 2x Wireless LAN Antenna ports (covered unless optional Wi-Fi Expansion kit purchased)
- Ethernet/LAN
- 2 x Realtek RTLB111H-CG Gigabit LAN
- Audio Output
- 1 x 3.5 mm Line-out
- Power
- 1 x DC Jack Input Connector
- USB 2.0 Type A
- 1
- USB 3.0 Type A
- 2
- Power Switch
- 1 x Momentary Pushbutton
- Serial
- 1 x RS-232 RJ50: COM 1
- Display Interface
- 4 x HDMI 2.0 with hardware EDID emulation (max. 4096 x 2160 pixels @60Hz)
- EDID
- Yes Learn More EDID: Yes Extended Display Identification Data. EDID is the data a monitor sends to the PC telling it what its capabilities are. The emulator basically mimics that data so the IPC thinks the monitor is always connected and powered on, which prevents connection loss, even when changing out displays or providing maintenance, allowing for 24/7 operation.
Auto Control and Monitoring
- Watchdog Timer
- 256 Segments, 0, 1, 2…255 (sec/min) Learn More Watchdog Timer: 256 Segments, 0, 1, 2…255 (sec/min) Acts as a fail-safe recovery mechanism that automatically resets the system if it becomes unresponsive.
- Energy Saving Technology
- Yes Learn More Energy Saving Technology: Yes This Energy Saving Technology automatically manages system power states based on usage, helping reduce power consumption during idle or low-load conditions. Allowing automatic, scheduled power on/shut down/ resume based on predefined schedules, saves cost, extends lifespan, and reduces cooling requirements.
Expansion I/O
- Expansion Option
- Optional Wi-Fi kit (IEEE802.11ax card and 2 x antenna, Bluetooth 5.2 Support
Eléctrico
- Input Power
- 84 W max.
- Input Voltage
- 12 VDC +/- 10%
- Input Current
- 7 A max.
Mecánico

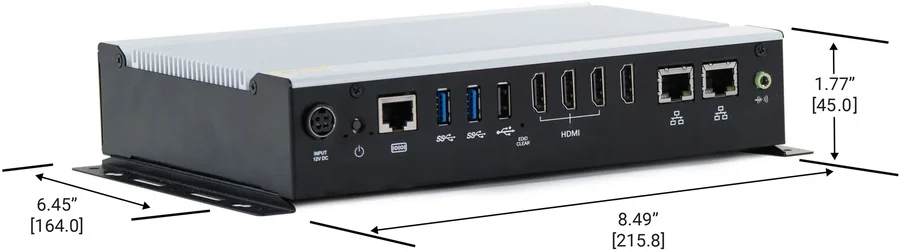

- Dimensions WxHxD
- 8.49 x 1.77 x 6.45 inches [215.8 x 45.0 x 164.0 mm]
- Weight
- Approx. 3.1 lbs. [1.5 kg]
- Mounting
- Wall Mount kit included
- Construction
- Silver Anodized Aluminum Heatsink, Grey Steel Chassis
Ambiental
- Operating Temperature
- 32° ~ 113°F (0° ~ 45°C)
- Storage Temperature
- -4~176°F [-20~80°C]
- Storage Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- IP Rating
- IP30
- CE
- Yes
- UL
- Yes
- RoHS
- Yes
- FCC
- Class B
Datos del producto
- Marca
- Maple Systems
- Número de parte
- BPC2620A
- Línea
- Digital Signage · Digital Signage Box PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
