AEx-921AP

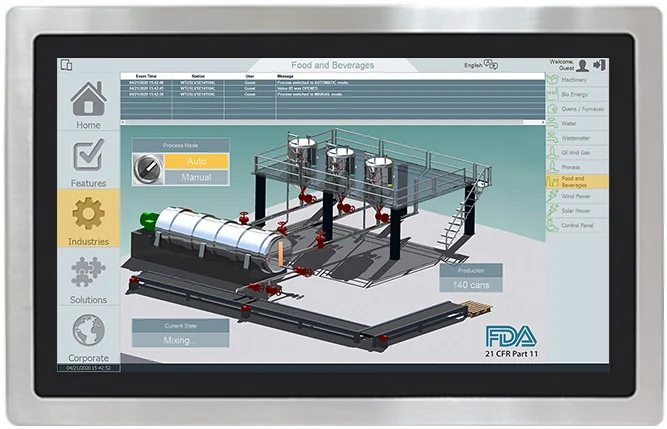

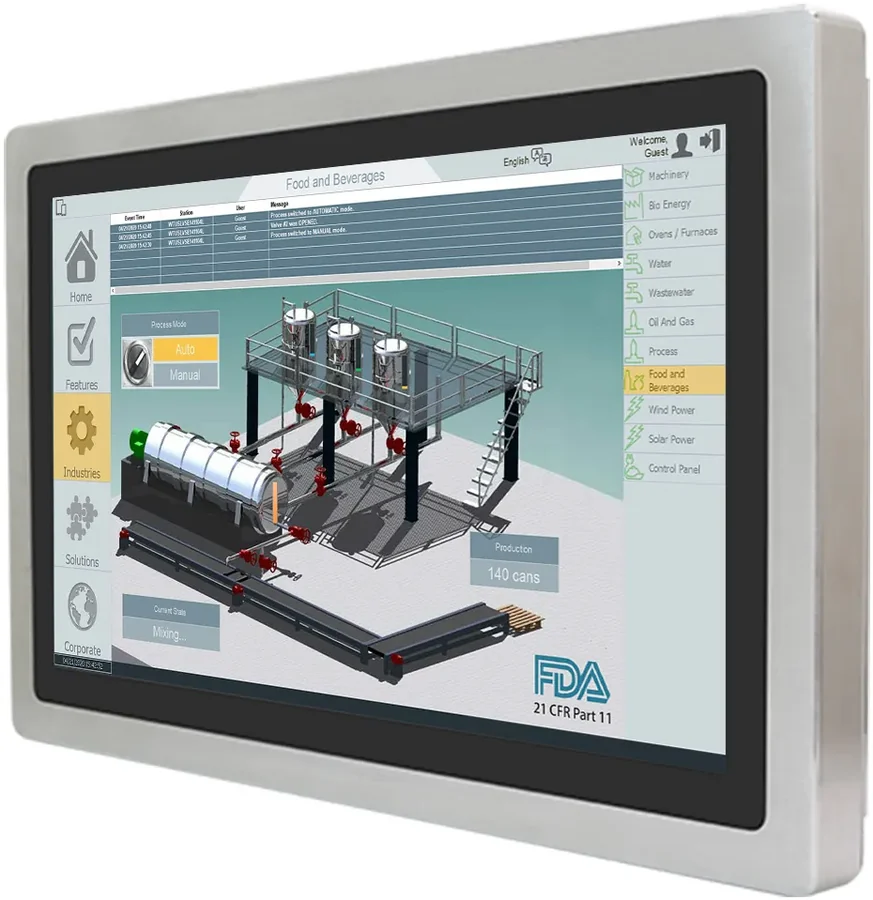

AEx-921AP-The 21.5” AEx-921AP features an extended operating temperature range ( -20~60°C ) , capacitive touchscreen, 316 Stainless Steel enclosure, and is IP66 rated. And because this IPC is CID2 rated, it is designed to keep operators and their environment safe. Comes with a Windows ® 10 IoT OS, a powerful Intel Processor, and 16 GB RAM. VESA mount. ATEX rated.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 1920 x 1080 Resolution, Optically Bonded
- Class I Div 2, Class 2 Div 2, M12 Connectors
- 316 Stainless Steel Chassis
- Intel ® Skylake Core i5-6300U 2.4 GHz
- -20~60°C Operating Temperature
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® Skylake Core™ i5-6300U 2.4GHz Dual-Core Processor
- Memory (RAM)
- 1 x DDR4 260-pin SO-DIMM 16 GB 2133 MHz
- System Chipset
- SoC
- Solid State Drive Type
- SATA / mSATA
- Solid State Drive Capacity
- 1 x 256 GB 2.5” SATA III, MLC SSD, 1 x 64 GB mSATA MLC SSD
Puertos de E/S

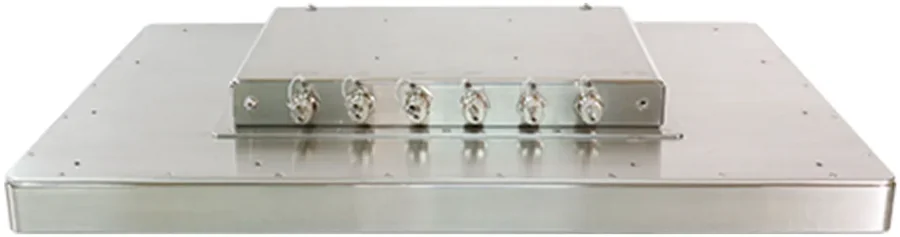

- Connector Type
- M12, with waterproof cover and tether chain
- Power
- 1 x M12 3-pin for DC power input (leads)
- Ethernet/LAN
- 2 x M12 8-pin for RJ-45
- Display Output
- 1 x M12 12-pin for VGA
- USB 2.0 Type A
- 2 (1 x M12 8-pin for 2 x USB 2.0)
- Serial Ports
- 1
- Serial Options
- 1 x M12 8-pin for RS-232/422/485, DE-9, COM1 (default RS-232)
Pantalla
- Display Size
- 21.5” FHD TFT LCD
- Resolution
- 1920 x 1080
- Luminance (cd/m^2)
- 300
- Contrast Ratio
- 3000:1
- Backlight Lifetime (hrs)
- 50,000+
- Colors
- 16.7 M
- View Angle (H° V°)
- 178/178
Pantalla táctil
- Touch Interface
- USB (Internal)
- Light Transmission
- 90+%
- Optical Bonding
- Yes
- Touch Screen Type
- Projected Capacitive
Eléctrico
- Input Power
- 48.3 W
- Input Voltage
- 9~36 VDC
- Input Current
- 5.37 A Max
Mecánico
- Enclosure Material
- 316 Stainless Steel Chassis
- Dimensions WxHxD
- 22.48 x 14.25 x 2.96 inches, [571 x 362 x 75.1 mm]
- Weight
- ~ 27.78 lbs [12.6 kg]
- Mounting
- VESA 100 x 100 mm
Ambiental
- Operating Temperature
- -4~140°F [-20~60°C]
- Storage Temperature
- -22~158°F [-30~70°C]
- Relative Humidity
- 10 to 95% @ 40°C, non-condensing
Certificaciones
- IP Rating
- IP66
- CE
- Yes
- Class 1 Div 2
- Yes
- ATEX
- ATEX / IECEx Zone 2 Ex ec ic IIC T4 Gc ATEX / IECEx Zone 22 Ex tc IIIC T135°C Dc
- RoHS
- Yes
- FCC
- FCC Class A
- UL Class 2 Div 2
- Class II Division 2 Group F, G, T135°C
- UL Class 3
- Class III
Datos del producto
- Marca
- Maple Systems
- Número de parte
- AEx-921AP
- Línea
- Extended Temp. PCs · Industrial Panel PCs · Class 1 Div 2 PCs · Stainless Steel PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
