AEx-915APH

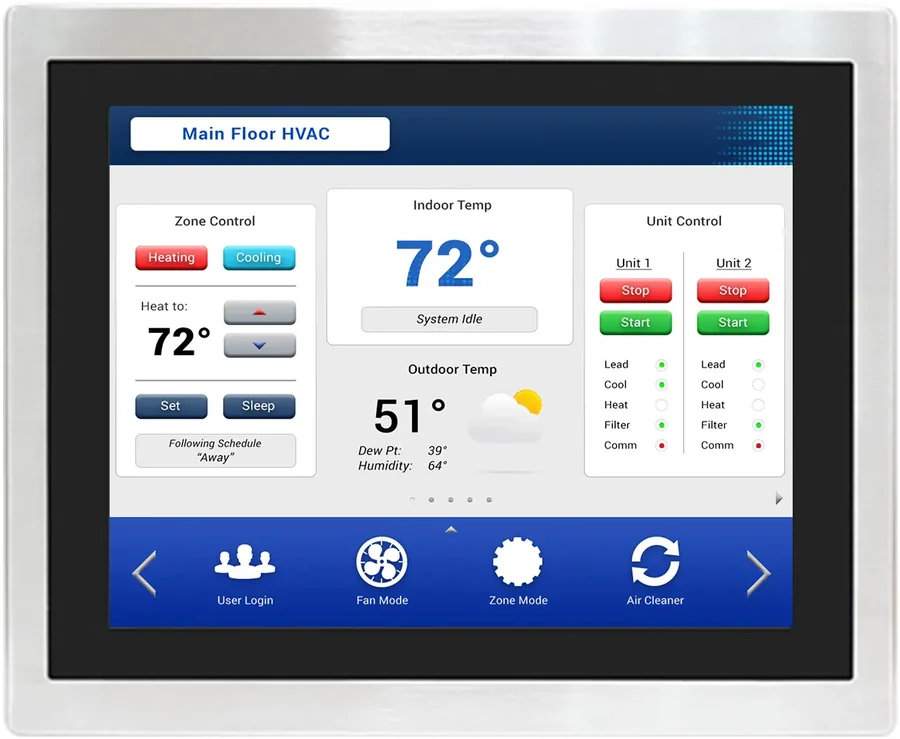

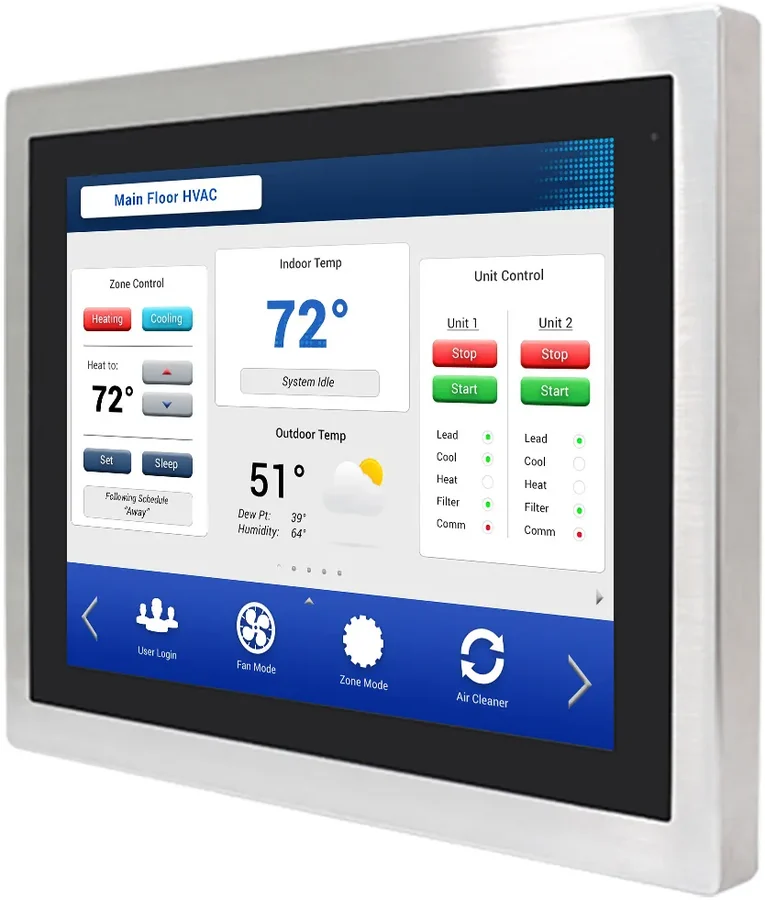

The AEx-915APH is designed to keep operators and their environment safe. Ideal for use in The AEx-915APH is designed to keep operators and their environment safe. Ideal for use in industries including oil and gas, mining, painting, chemical processing, pharmaceutical, food processing, and more. This IPC features a 15.0” 1000 nit sunlight readable capacitive touchscreen and supports a wide operating temperature range ( -20~60°C ).
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 1024 x 768 Resolution, Optically Bonded
- Class I Div 2, Class 2 Div 2, M12 Connectors
- 316 Stainless Steel Chassis
- High Brightness – 1000 nits
- Intel ® Skylake Core i5-6300U 2.4 GHz
- -20~60°C Operating Temperature
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® Skylake Core™ i5-6300U 2.4GHz Dual-Core Processor
- Memory (RAM)
- 1 x DDR4 260-pin SO-DIMM 16 GB 2133 MHz
- System Chipset
- SoC
- Solid State Drive Type
- SATA / mSATA
- Solid State Drive Capacity
- 1 x 256 GB 2.5” SATA III, MLC SSD, 1 x 64 GB mSATA MLC SSD
Puertos de E/S
- Connector Type

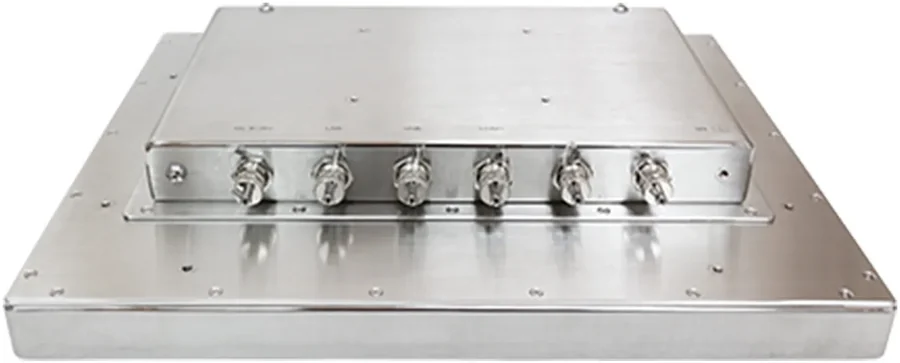

- M12, with waterproof cover and tether chain
- Power
- 1 x M12 3-pin for DC power input (leads)
- Ethernet/LAN
- 2 x M12 8-pin for RJ-45
- Display Output
- 1 x M12 12-pin for VGA
- USB 2.0 Type A
- 2 (1 x M12 8-pin for 2 x USB 2.0)
- Serial Ports
- 1
- Serial Options
- 1 x M12 8-pin for RS-232/422/485, DE-9, COM1 (default RS-232)
Pantalla
- Display Size
- 15.0” XGA TFT LCD
- Resolution
- 1024 X 768
- Luminance (cd/m^2)
- 1000
- Contrast Ratio
- 800:1
- Backlight Lifetime (hrs)
- 50,000+
- Colors
- 262 K
- View Angle (H° V°)
- 160/140
Pantalla táctil
- Touch Interface
- USB (Internal)
- Light Transmission
- 90+%
- Optical Bonding
- Yes
- Touch Screen Type
- Projected Capacitive
Eléctrico
- Input Power
- 72.6 W
- Input Voltage
- 9~36 VDC
- Input Current
- 8.07 A Max
Mecánico
- Enclosure Material
- 316 Stainless Steel Chassis
- Dimensions WxHxD
- 15.71 x 12.76 x 2.76 inches [399 x 324 x 70 mm]
- Weight
- ~ 21.61 lbs [9.8 kg]
- Mounting
- VESA 100 x 100 mm
Ambiental
- Operating Temperature
- -4~140°F [-20~60°C]
- Storage Temperature
- -22~158°F [-30~70°C]
- Relative Humidity
- 10 to 95% @ 40°C, non-condensing
Certificaciones
- IP Rating
- IP66
- CE
- Yes
- Class 1 Div 2
- Yes
- ATEX
- ATEX / IECEx Zone 2 Ex ec ic IIC T4 Gc ATEX / IECEx Zone 22 Ex tc IIIC T135°C Dc
- RoHS
- Yes
- FCC
- FCC Class A
- UL Class 2 Div 2
- Class II Division 2 Group F, G, T135°C
- UL Class 3
- Class III
Datos del producto
- Marca
- Maple Systems
- Número de parte
- AEx-915APH
- Línea
- High-Brightness PCs · Extended Temp. PCs · Industrial Panel PCs · Class 1 Div 2 PCs · Stainless Steel PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
