AEx-819PH

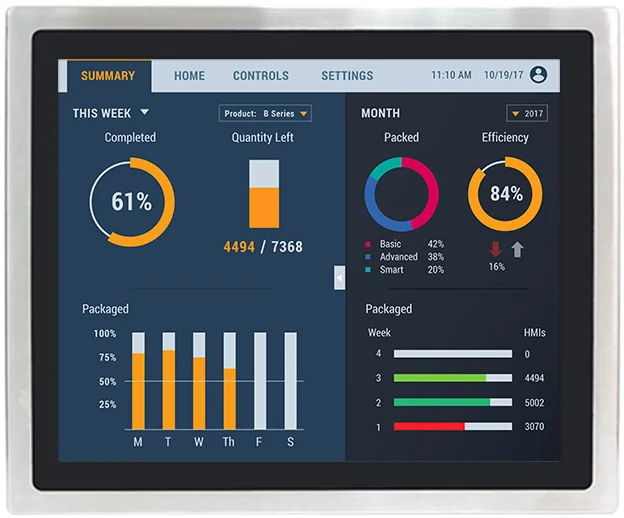

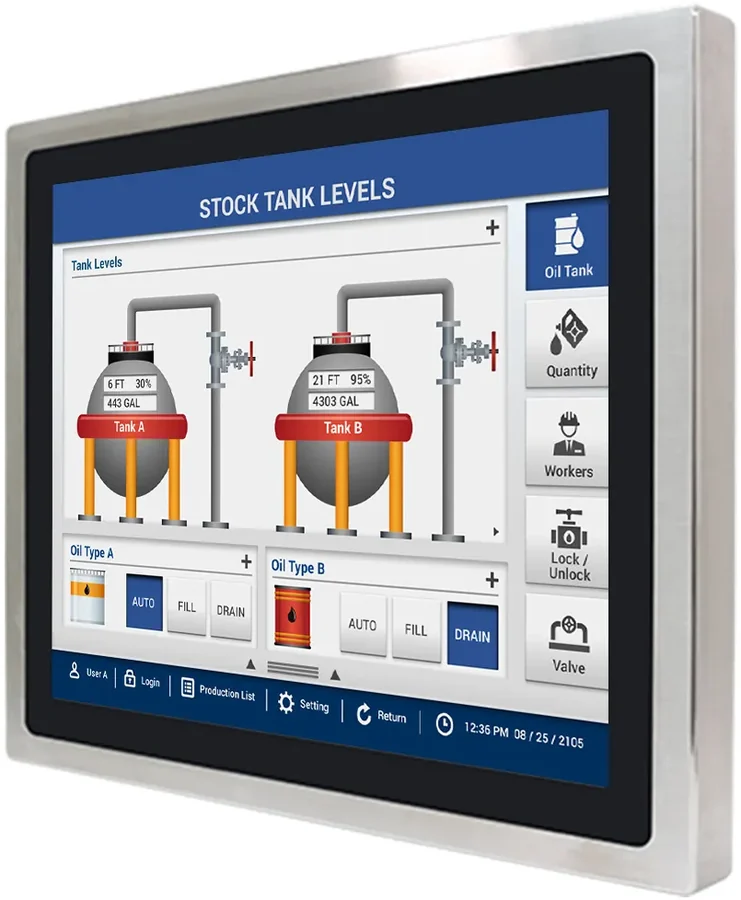

AEx-819PH-The AEX-819PH features a high brightness, 19.0” 1000 nit capacitive touchscreen, supports a wide operating temperature range ( -20~60°C ), and is Class I, Division 2 rated, making it ideal for food processing, pharmaceutical, and applications requiring regular washdowns.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 1280 x 1024 Resolution, Optically Bonded

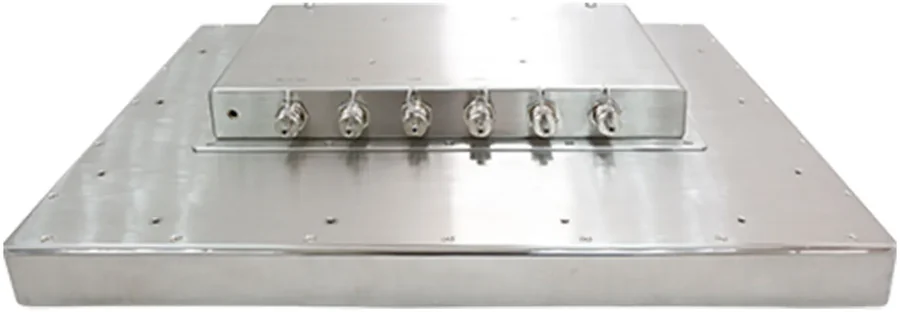

- Class 1 Div 2, Class 2 Div 2, M12 Connectors
- 316 Stainless Steel Chassis
- High Brightness – 1000 nits
- Intel ® Celeron N2930 Quad-Core 1.83 GHz Processor
- -20~60°C Operating Temperature
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® Celeron™ N2930 Quad-Core 1.83 GHz Processor
- Memory (RAM)
- Onboard DDR3L 8 GB 1333 MHz
- System Chipset
- SoC
- Solid State Drive Type
- SATA / mSATA
- Solid State Drive Capacity
- 1 x 256 GB 2.5” SATA III, MLC SSD, 1 x 64 GB mSATA MLC SSD
Puertos de E/S
- Connector Type
- M12, with waterproof cover and tether chain
- Power
- 1 x M12 3-pin for DC power input (leads)
- Ethernet/LAN
- 2 x M12 8-pin for RJ-45
- Display Output
- 1 x M12 12-pin for VGA
- USB 2.0 Type A
- 2 (1 x M12 8-pin for 2 x USB 2.0)
- Serial Ports
- 1
- Serial Options
- 1 x M12 8-pin for RS-232/422/485, DE-9, COM1 (default RS-232)
Pantalla
- Display Size
- 19” TFT SXGA LCD
- Resolution
- 1280 x 1024
- Luminance (cd/m^2)
- 1000
- Contrast Ratio
- 1000:1
- Backlight Lifetime (hrs)
- 70,000+
- Colors
- 16.7 M
- View Angle (H° V°)
- 170/160
Pantalla táctil
- Touch Interface
- USB (Internal)
- Light Transmission
- 90+%
- Optical Bonding
- Yes
- Touch Screen Type
- Projected Capacitive
Eléctrico
- Input Power
- 65.8 W
- Input Voltage
- 9~36 VDC
- Input Current
- 7.31 A Max
Mecánico
- Enclosure Material
- 316 Stainless Steel Chassis
- Dimensions WxHxD
- 18.50 x 15.30 x 2.95 inches, [470 x 388.6 x 75 mm]
- Weight
- ~ 27.12 lbs [12.3 kg]
- Mounting
- VESA 100 x 100 mm
Ambiental
- Operating Temperature
- -4~140°F [-20~60°C]
- Storage Temperature
- -22~158°F [-30~70°C]
- Relative Humidity
- 10 to 95% @ 40°C, non-condensing
Certificaciones
- IP Rating
- IP66
- CE
- Yes
- Class 1 Div 2
- Yes
- ATEX
- ATEX / IECEx Zone 2 Ex ec ic IIC T4 Gc ATEX / IECEx Zone 22 Ex tc IIIC T135°C Dc
- RoHS
- Yes
- FCC
- FCC Class A
- UL Class 2 Div 2
- Class II Division 2 Group F, G, T135°C
- UL Class 3
- Class III
Datos del producto
- Marca
- Maple Systems
- Número de parte
- AEx-819PH
- Línea
- High-Brightness PCs · Extended Temp. PCs · Industrial Panel PCs · Class 1 Div 2 PCs · Stainless Steel PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
