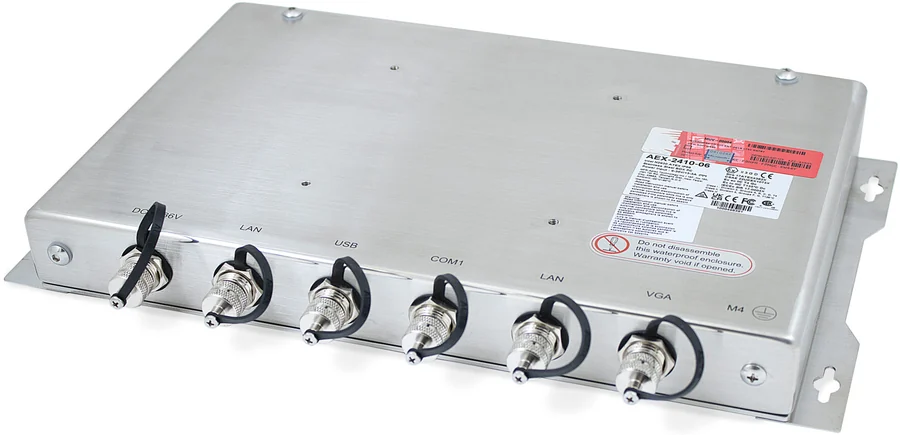

AEx-2410
AEx-2410-Our Class I, Division 2, extended temperature ( -20~60°C ), rugged IPC features a 316 Stainless Steel enclosure perfect for extreme environmental applications. With a Windows ® Operating System, the AEX-2410 supports AVEVA and other 3rd party software like SIMATIC WinCC, Ignition, & FactoryTalk ® . This PC comes pre-configured and ready to ship. VESA or wall mount. IP66 and ATEx rated.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Class I Div 2, Class 2 Div 2, Class 3, ATEx/IECEx Zone 22 Certified
- 316 Stainless Steel Chassis IP66 All sides rating, M12 connectors
- Intel ® Celeron N2930 Quad-Core 1.83 GHz
- -20~60°C Operating Temperature
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® Celeron™ N2930 Quad-Core 1.83GHz Processor
- Memory (RAM)
- Onboard DDR3L 8 GB 1333 MHz
- System Chipset
- SoC
- Solid State Drive Type
- SATA / mSATA
- Solid State Drive Capacity
- 1 x 128GB 2.5" SATA 3 MLC SSD, 1 x 64GB mSATA GMLC SSD
- CPU Graphics
- Intel® HD Graphics
Puertos de E/S

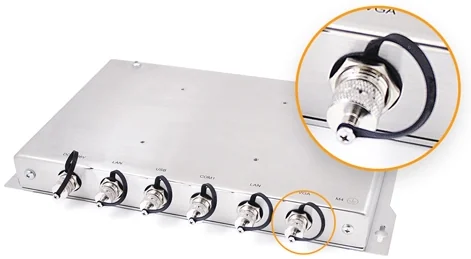

- Connector Type
- M12, with waterproof cover and tether chain
- Power
- 1 x M12 3-pin for DC power input (leads)
- Ethernet/LAN
- 2 x M12 8-pin for RJ-45
- Display Output
- 1 x M12 12-pin for VGA
- USB 2.0 Type A
- 2 (1 x M12 8-pin for 2 x USB 2.0)
- Serial Options
- 1 x M12 8-pin for RS-232/422/485, DE-9, COM1 (default RS-232)
- Display Interface Options
- 1 x M12 12-pin for VGA
Storage
- Solid State Drive
- 1 x 128GB 2.5" SATA 3 MLC SSD, 1 x 64GB mSATA GMLC SSD
Eléctrico
- Input Power
- 17.1 W
- Input Voltage
- 9-36 VDC
- Input Current
- 1.9 A Max
Mecánico

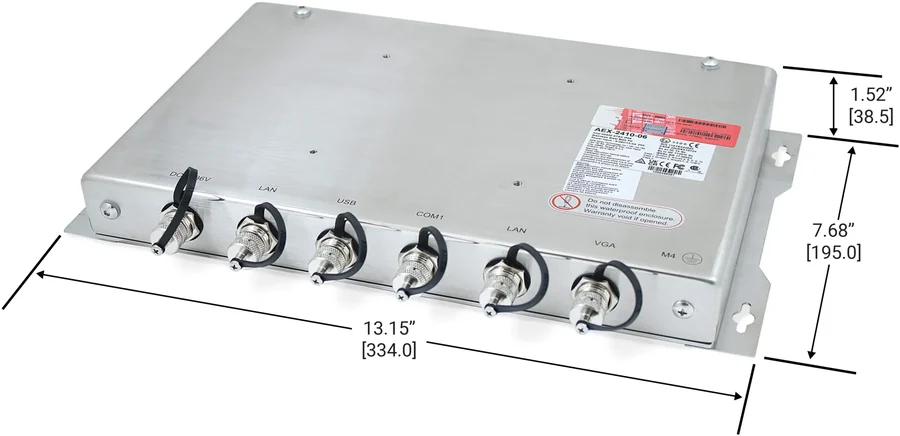

- Dimensions WxHxD
- 13.15 x 7.68 x 1.52 inches [334 x 195 x 38.5 mm]
- Weight
- Approx. 8.82 lbs. [4.0 kg]
- Mounting
- VESA 100 x 100 mm, Wall Mount (mounting hardware not included)
- Construction
- 316 Stainless Steel Chassis
Ambiental
- Operating Temperature
- -4~140°F [-20~60°C]
- Storage Temperature
- -22~158°F [-30~70°C]
- Storage Humidity
- 10 to 90% @ 40°C, non-condensing
Certificaciones
- IP Rating
- IP66
- CE
- Yes
- Class 1 Div 2
- Yes
- ATEX
- ATEX / IECEx Zone 2 Ex ec ic IIC T4 Gc ATEX / IECEx Zone 22 Ex tc IIIC T135°C Dc
- RoHS
- Yes
- FCC
- Class A
- UL Class 2 Div 2
- Class II Division 2 Group F, G, T135°C
- UL Class 3
- Class III
Datos del producto
- Marca
- Maple Systems
- Número de parte
- AEx-2410
- Línea
- Extended Temp. PCs · Industrial Box PCs · Class 1 Div 2 PCs · Stainless Steel PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
