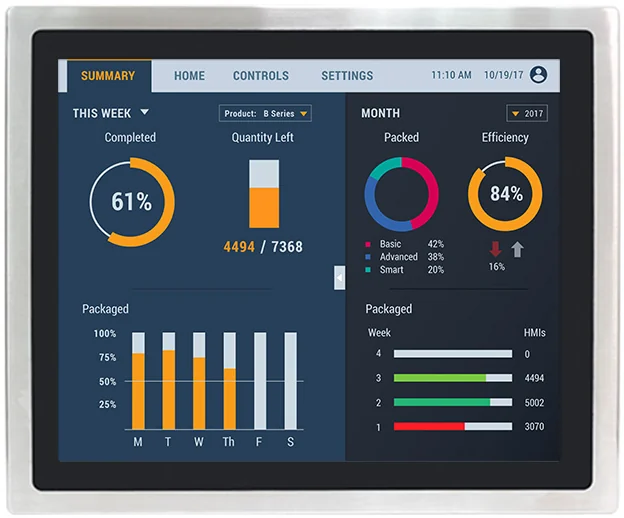

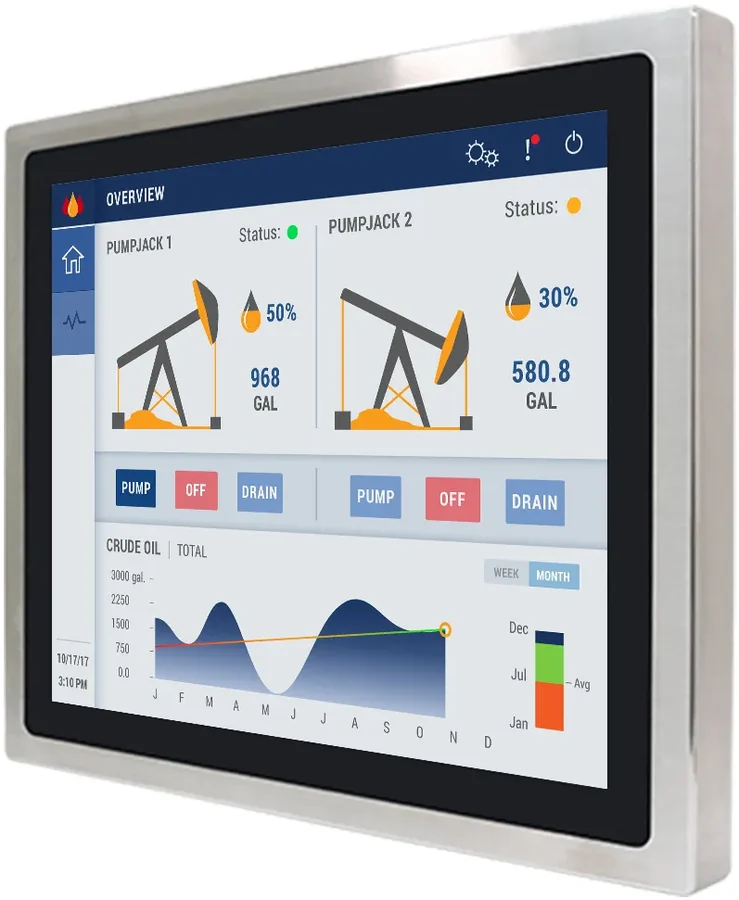

AEx-119PH
With a 316 Stainless Steel enclosure and high-brightness/sunlight readable, 1000 nit projeWith a 316 Stainless Steel enclosure and high-brightness/sunlight readable, 1000 nit projected capacitive touchscreen, this extended temperature ( -20~60°C ), Class I, Division 2 Industrial Monitor is a great value. Also with an Optically Bonded TFT LCD, IP66 rating for all sides, and ATEX rating, its perfect for all harsh environments.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- High-Resolution Projected Capacitive Monitor
- 1000nit, Optically Bonded TFT LCD
- Class 1 Div 2, Class 2 Div 2, Class 3, ATEx/IECEx Zone 22 Certified
- 316 Stainless Steel Chassis IP66 All sides rating, M12 connectors
- -20 ~ 60 C Operating Temperature
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Puertos de E/S
- Connector Type

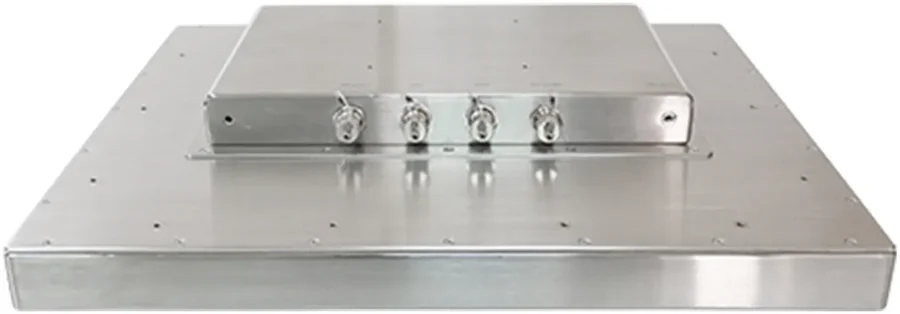

- M12, with waterproof cover and tether chain
- Power
- 1 x M12 3-pin for DC power input (leads)
- USB 2.0 Type A
- 2
- Display Interface Options
- 1 x VGA 1 x DVI-D 1 x DisplayPort 1.2 1 x HDMI® 1.4a / 1 x M12 12-pin for VGA
- On-Screen Display
- 1 x M12 8-pin for External OSD Controller Box
Pantalla
- Resolution
- 1280 x 1024
- Luminance (cd/m^2)
- 1000
- Contrast Ratio
- 1000:1
- Backlight Lifetime (hrs)
- 50,000+
- Colors
- 16.7 M
- Display Type
- 19.0” SXGA TFT LCD
- Viewing Angle (H°/V°)
- 170/160
Pantalla táctil
- Light Transmission
- 90+%
- Optical Bonding
- Yes
- Touch Screen Type
- Projected Capacitive
- Interface
- USB
Eléctrico
- Input Power
- 48.3 W
- Input Voltage
- 9-36 VDC
- Input Current
- 1.34~5.37 A
Mecánico
- Dimensions WxHxD
- 18.50 x 15.30 x 2.95 inches [470 x 388.6 x 75 mm]
- Weight
- Approx. 25.35 lbs [11.5 kg]
- Mounting
- VESA 100 x 100 mm
- Construction
- 316 Stainless Steel Chassis
Ambiental
- Operating Temperature
- -4~140°F [-20~60°C]
- Storage Temperature
- -22~158°F [-30~70°C]
- Storage Humidity
- 10 to 95% @ 40°C, non-condensing
Certificaciones
- IP Rating
- IP66
- CE
- Yes
- ATEX
- ATEX / IECEx Zone 2 Ex ec ic IIC T4 Gc ATEX / IECEx Zone 22 Ex tc IIIC T135°C Dc
- RoHS
- Yes
- FCC
- FCC Class A
- UL Class 2 Div 2
- Class II Division 2 Group F, G, T135°C
- UL Class 3
- Class III
Datos del producto
- Marca
- Maple Systems
- Número de parte
- AEx-119PH
- Línea
- High-Brightness Monitors · Extended Temp. Monitors · Industrial Monitors
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
