WFK2

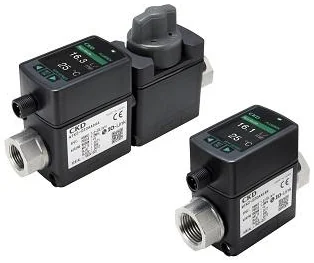

Karman Vortex Flow Sensor FLUEREXReceived the 2018 Good Design Award. · Karman vortex flow sensor that covers 0.4 to 250 L/min. Switch setting for various outputs can be made and IO-Link communication is supported. It is equipped with a fluid temperature measurement function as standard and supports fluid temperature up to 95°C, making it ideal for various monitoring of cooling water.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Supports fluorine liquids]
- Supports fluorine liquids with excellent electrical insulation.
- Fluids with low global warming potential are also supported. [Flow rate adjustment needle type added]
- Fine adjustment is possible with the manual valve. [ATEX Directive added support]
- Explosion-proof performance:Ⅱ 3G Ex ec ⅡC T4 Gc [Selectable output]
- It can be switched among flow rate, temperature switch output, analog output and IO-Link communication (option).
Variantes de la serie
| Model No. | Product name | Flow rate range (L/min) | Port size | Remarks |
|---|---|---|---|---|
| WFK2-005 | Karman Vortex Flow Sensor | 0.4 to 5 | Rc3/8, 1/2, 3/4 | |
| WFK2-020 | Karman Vortex Flow Sensor | 1.6 to 20 | Rc3/8, 1/2, 3/4 | |
| WFK2-050 | Karman Vortex Flow Sensor | 4 to 50 | Rc3/8, 1/2, 3/4 | |
| WFK2-100 | Karman Vortex Flow Sensor | 8 to 100 | Rc1, 1 1/4, 1 1/2 | |
| WFK2-250 | Karman Vortex Flow Sensor | 20 to 250 | Rc1, 1 1/4, 1 1/2 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- WFK2
- Línea
- Flow sensors / controllers
- Categoría
- Sensores
- Precio y entrega
- Por cotización
