Serie CKD
W4GB2-FP1・MW4GA/B/Z2-FP1

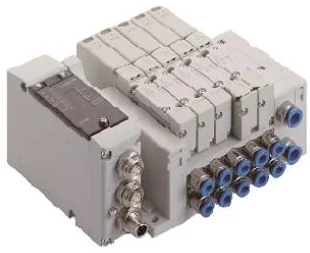

FP* Series for Food manufacturing processes Plug-in block manifold【Discontinued model】 · Plug-in type 5-port valve with environmental resistance and environmental friendliness, that improves ease of use and performance required by the times, from installation to maintenance. · [Cylinder bore size: φ20 to φ80] · FP1 : Food grade lubricant (NSF H1) is used for flow paths and sliding parts.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Compatible with various communications]
- Available for CC-Link, DeviceNet, EtherCAT, EtherNetIP, ProfiNET, CC-Link IE Field BASIC. [Various useful functions]
- DIN rail mount compatible.
- Manual override: OFF function and non-locking are available.
- Air supply spacer, exhaust spacer available. [Degree of protection IP65]
- Halogen-free lead wires adopted. [High response/long service life]
Variantes de la serie
| Model No. | Product name | Piping port position | Port size | Remarks |
|---|---|---|---|---|
| W4GB2※０-FP1 | Single valve (food manufacturing processes) | Base piping | Rc1/4 | Discontinued · 2027 02 26 |
| MW3/4GA2-R1-FP1 | Individual wiring manifold (food manufacturing processes) | Body piping | Push-in fitting φ4, φ6, φ8, Rc1/8 | Discontinued · 2027 02 26 |
| MW4GB２-R1-FP1 | Individual wiring manifold (food manufacturing processes) | Base side piping | Push-in fitting φ4, φ6, φ8 | Discontinued · 2027 02 26 |
| MW4GZ2-R1-FP1 | Individual wiring manifold (food manufacturing processes) | Base bottom piping | Push-in fitting φ4, φ6, φ8 | Discontinued · 2027 02 26 |
| MW3/4GA2-T※-FP1 | Reduced wiring manifold (food manufacturing processes) | Body piping | Push-in fitting φ4, φ6, φ8, Rc1/8 | Discontinued · 2027 02 26 |
| MW4GB2-T※-FP1 | Reduced wiring manifold (food manufacturing processes) | Base side piping | Push-in fitting φ4, φ6, φ8 | Discontinued · 2027 02 26 |
| MW4GZ2-T※-FP1 | Reduced wiring manifold (food manufacturing processes) | Base bottom piping | Push-in fitting φ4, φ6, φ8 | Discontinued · 2027 02 26 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- W4GB2-FP1・MW4GA/B/Z2-FP1
- Línea
- Pilot operated 3, 4, 5-port solenoid valves
- Categoría
- Neumática
- Precio y entrega
- Por cotización
