Serie CKD

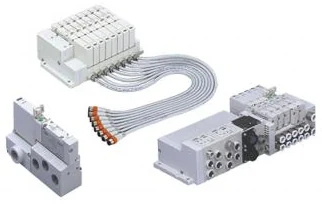

W4GA/B/Z2・MW4GA/B/Z2
Plug-in block manifold【Discontinued model】Alternative model : TVG Series · Plug-in type 5-port valve with environmental resistance and environmental friendliness, that improves ease of use and performance required by the times, from installation to maintenance. · [Cylinder bore size: φ20 to φ80]
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [DeviceNet compatible slave station added]
- Added T7 Series to DeviceNet Slave Station.
- Employs a compact, thin body and M12 connector.
- 16-points / 32-points output, 16-points I/O, NPN / PNP can be selected.
- QuickConnect support contributes to reduction of setup change time such as tool change, etc. [Compatible with various communications]
- Available for CC-Link, DeviceNet, EtherCAT, EtherNet/IP, ProfiNET, CC-Link IE Field Basic. [Various useful functions]
Variantes de la serie
| Model No. | Product name | Piping port position | Port size | Remarks |
|---|---|---|---|---|
| W4GB2※0 | Single valve | Base piping | Rc1/4 | Discontinued · 2027 02 26 |
| MW3/4GA2-R1 | Individual wiring manifold | Body piping | Push-in fitting φ4, φ6, φ8, Rc1/8 | Discontinued · 2027 02 26 |
| MW4GB２-R1 | Individual wiring manifold | Base side piping | Push-in fitting φ4, φ6, φ8 | Discontinued · 2027 02 26 |
| MW4GZ2-R1 | Individual wiring manifold | Base bottom piping | Push-in fitting φ4, φ6, φ8 | Discontinued · 2027 02 26 |
| MW3/4GA2-T※ | Reduced wiring manifold | Body piping | Push-in fitting φ4, φ6, φ8, Rc1/8 | Discontinued · 2027 02 26 |
| MW4GB2-T※ | Reduced wiring manifold | Base side piping | Push-in fitting φ4, φ6, φ8 | Discontinued · 2027 02 26 |
| MW4GZ2-T※ | Reduced wiring manifold | Base bottom piping | Push-in fitting φ4, φ6, φ8 | Discontinued · 2027 02 26 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- W4GA/B/Z2・MW4GA/B/Z2
- Línea
- Pilot operated 3, 4, 5-port solenoid valves
- Categoría
- Neumática
- Precio y entrega
- Por cotización
