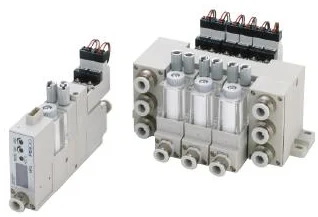

VSJ・VSJM

Ejector unit (20 mm width)Burst air flow rate & vacuum ejector unit with relief pressure adjustment needle. · [Nozzle diameter (mm)] 0.5, 0.7, 1.0, 1.2 · [Intake flow rate (L/min (ANR))] 7 to 38

• [Preventing workpieces from blowing away]
• Pressure control is added to the conventional flow rate control for vacuum burst air to prevent workpieces from being blown away.
• Shortening of vacuum time is realized by providing a relief function in the vacuum burst circuit (function to relieve extra pressure). [Manifold also available]
• Since manifold is also available, reduced piping is possible.
• There are two types of pipe leadout directions, front side and rear side, which can be selected according to the installation location. [Three types of valves]
• Three types of vacuum supply valve type, self-hold, normally open, and normally closed, are available.
